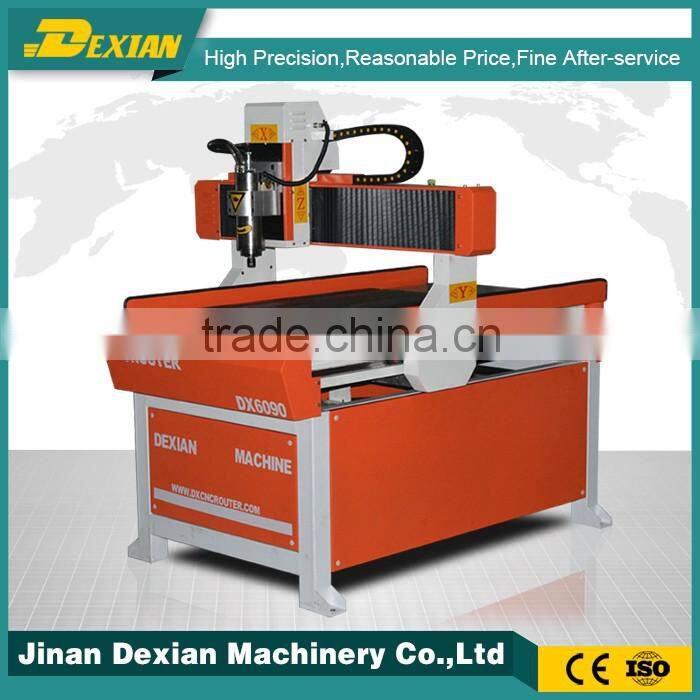

DX-6090 high speed pvc cutting cnc router
Features of cnc router 6090
1. Adopt 1.5kw water-cooled spindle, great cooling effect, high speed, low noise and long life.
2. It is very suitable for CNC hobby friends, small engraving shop and factories as well.
3. Popular Mach3 control system is very easy for every buyer and beginner,with USB interface.
4. Taiwan Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable and precise.
5. Cast iron machine body,stable and strong in use.
6. We use YAKO driver,very powerful,ensuring the machine is stable and long lifetime.
7. We use Highly flexible towline; fire-resistant double-sheathed cable, Prevent electrostatic interference; also with cable carrier outside to protect the cable.
8.Optional part: With Rotary can process cylinder materials.
Parameter of cnc router 6090
Working area |
600*900*100mm (can be customized) |
Table |
Aluminum profile T-slot working table with PVC protection |
Spindle power |
1.5kw water cooling,24000rpm(Option:HSD air cooling spindle) |
Motor system |
Stepper motor system(Option:servo motor) |
Control system |
Mach3 with USB interface(Option:DSP/Ncstudio) |
Transmission |
TBI ball screw from Taiwan |
Rail way |
Round orbit(HIWIN linear guide for option) |
Inverter |
1.5kw Fu Ling inverter(Option:Delta inverter fromTaiwan) |
Driver |
YAKO driver(top brand in China) |
structure |
Cast iron bed |
Speed |
Max travelling speed:6000mm/min Max working speed: 5000mm/min |
Switch |
Japanese OMRON Switch |
Cable |
Highly flexible towline;fire-resistant double-sheathed cable |
Software |
Type3,Artcam |
Package |
Plywood case |
Working voltage |
AC220V/1PH/50Hz (option:110V) |
Quality Control & Safety Level
Quality Control:
1. Skilled and strict Quality Inspection Team is available during the material purchasing and
production procedure.
2. All finished machine we shipped out are 100% strictly tested by our QC department and
engineering department
Safaty Level:
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times
Application for cnc router 6090
Cnc router 6090 has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.
It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.
Our service
A Guarantee:
18 months for the whole machine.
Within 18 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.;
Out of 18 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You
will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
About our factory
Jinan Dexian Machine Co.,Ltd is a professional CNC machinery manufacturer.Based in China,we look to the world’s first class quality standard as reference.
We can offer you advanced technology,high quality,reasonable price and perfect post-sales service.Our products are very popular in the worldwide, including the USA,Russia,Australia,Middle East,South America and South East Asia.
We are looking for the agents from all over the world,welcome you to be one of us!
