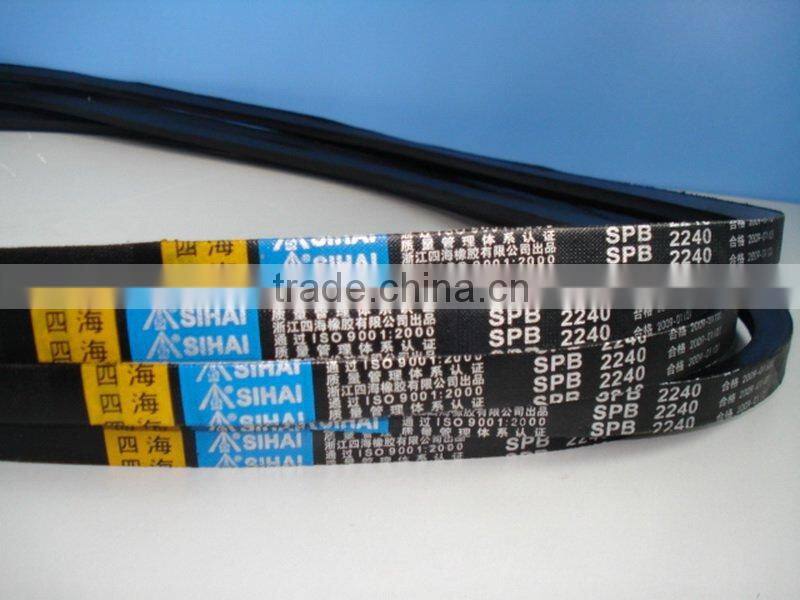

Help CenterWedge Wrapped Narrow v Belt SPC Type for Transmission
Related Products
-
Industrial Abrasive BeltsUS$ 0.09 - 0.99MOQ: 1 -
Wedge Wrapped v Belt SPZ Type for TransmissionUS$ 0.09 - 0.99MOQ: 1
-
Rubber Belt Black Narrow V-belt Rubber v Belt Classical v Belt v BeltUS$ 0.05 - 100MOQ: 300 Pieces
-
Rubber Belt Narrow V-belt Rubber v Belt Classical v Belt v BeltUS$ 0.05 - 100MOQ: 300 Pieces
-
Wedge Wrapped v Belt 3v Type for TransmissionUS$ 0.01 - 0.99MOQ: 1
Specifications
Wedge wrapped V-belts offer high transverse stiffness and a transmission power 50-100% higher than classical V-belts.
WRAPPED V BELT
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
WRAPPED V BELT FEATURES:
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
Size:
Production Type |
Top Width |
Pitch Width |
Height |
Angle |
O(Z) |
10 |
8.5 |
6 |
40° |
A |
13 |
11.0 |
8 |
40° |
B |
17 |
14.0 |
11 |
40° |
C |
22 |
19.0 |
14 |
40° |
D |
32 |
27.0 |
19 |
40° |
E |
38 |
32.0 |
23 |
40° |
Characters Of Common V-belt (wrapped)GB/T1171-2006
|
Type |
Tensile-Strength KN ≥ |
Reference Force Extension %≤ |
|
|
Z |
2.0 |
7.0 |
13.0 |
- |
A |
3.0 |
17.0 |
||
B |
5.0 |
21.0 |
2.0 |
|
C |
9.0 |
31.0 |
||
D |
15.0 |
31.0 |
||
E |
20.0 |
31.0 |
Production Type |
Top Width |
Height |
Angle |
HAA |
13 |
6 |
40° |
HBB |
17 |
8 |
40° |
HCC |
22 |
11 |
40° |
Production Type |
Top Width |
Height |
Angle |
AJ |
13.6 |
10 |
40° |
BJ |
17.0 |
13 |
40° |
CJ |
22.4 |
16 |
40° |
DJ |
32.8 |
21.5 |
40° |
Our factory:
The equipments:
The package:
