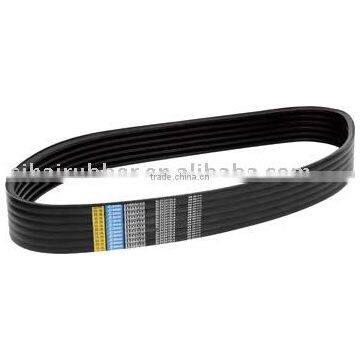

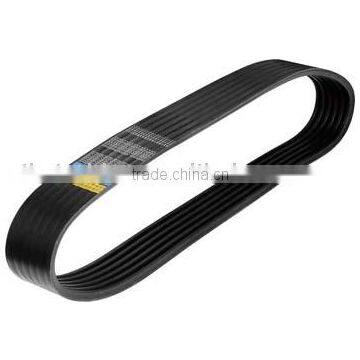

Banded V-belt

Specifications

banded V-belts are produced under the most rigorous quality control,which guatantees long life span and resistance to oil.

banded V belts

1. composed of multiple signle beltwhich are connected into a whole.they effectively solve problems.such as wobbling,smacking and turning over occured in single belt operation

2.we can produce HA,HB,HC,HD,3V/9J,5V/15J,8V/25J,SPCJ banded belt .



Size:

Production Type	Top Width	Pitch Width	Height	Angle
O(Z)	10	8.5	6	40°
A	13	11.0	8	40°
B	17	14.0	11	40°
C	22	19.0	14	40°
D	32	27.0	19	40°
E	38	32.0	23	40°



                 Physical











Characters Of Common V-belt(wrapped)GB/T1171-2006

Type	Tensile-Strength KN ≥	Reference Force Extension %≤	Adhesive Strength Of The Cord (KN/m)≥	Adhesive Strength Between Cloth And Top Rubber(KN/m)≥
Z	2.0	7.0	13.0	-
A	3.0		17.0
B	5.0		21.0	2.0
C	9.0		31.0
D	15.0		31.0
E	20.0		31.0
