cheap mini truck for cargo

FOB Price

USD $500 - $1,600 / Set

1 Set(Min.Order)

Supply Ability 600 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Use For:	Cargo	Driving Type:	Electric
Voltage:	48V	Body Type:	Open	Certification:	Other
Brand Name:	JWM	Place of Origin:	Henan, China	Model Number:	ZY155
Size:	24009001200mm

Product Description

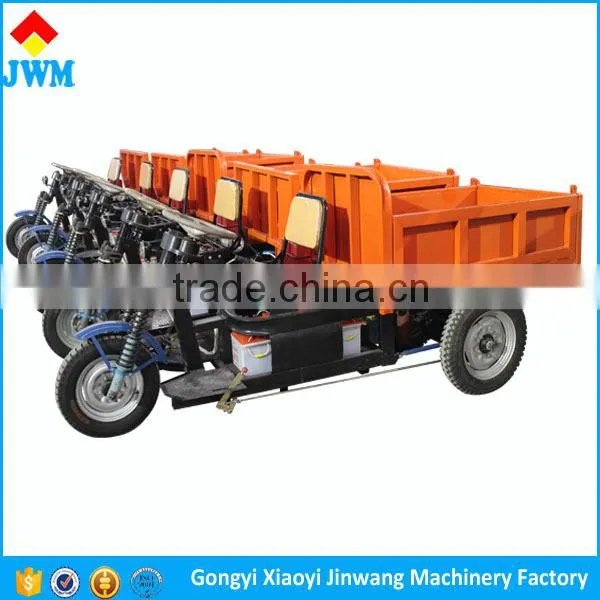

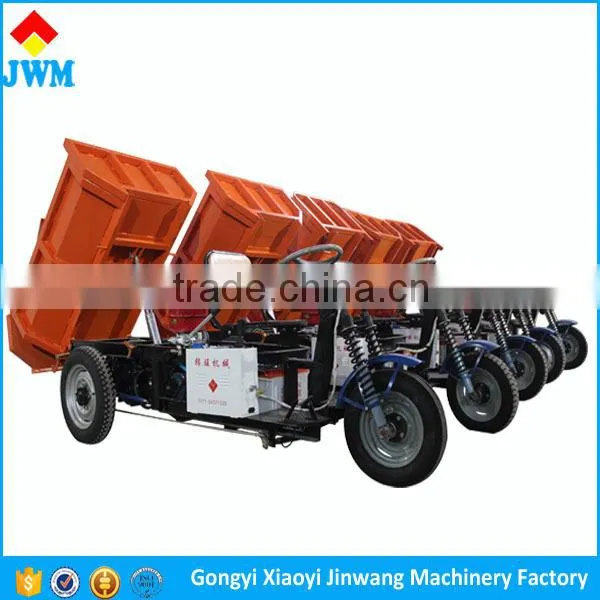

1 ton loading capacity ZY155 mini truck for cargo

Product Application

mini truck for cargo is our main product,using battery as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.

Our dumpers have been deliveried to United States, Chile, Peru, Canada, Tanzania, United Arab Emirates and etc.

We have three types of electric dumpers, ZY155, ZY165 and ZY180 for you to choose.

SPECIFICATIONS FOR ELECTRIC MINI DUMPER

Item	technical	ZY155	ZY165	ZY180
Weight	Loading capacity	_1000kg	1500kg	2000kg
Weight	Net weight	_520kg	850kg	1000kg
Battery	Voltage	_48V	60V	72V
	Battery type	_140Ah	160Ah	185Ah
	Charging hour	First with 12 hours, then normal with 8 hours
	Working hour	10 to 12 hours with a full charge
Motor	Lifting motor power	1000w	1000w	1000w
	Driving motor power	1000w	1500w	2000w
	Rotating speed	3500r/min
Tire	Front type	400-12	450-14	450-14
Tire	Rear type	450-14	500-14	600-16

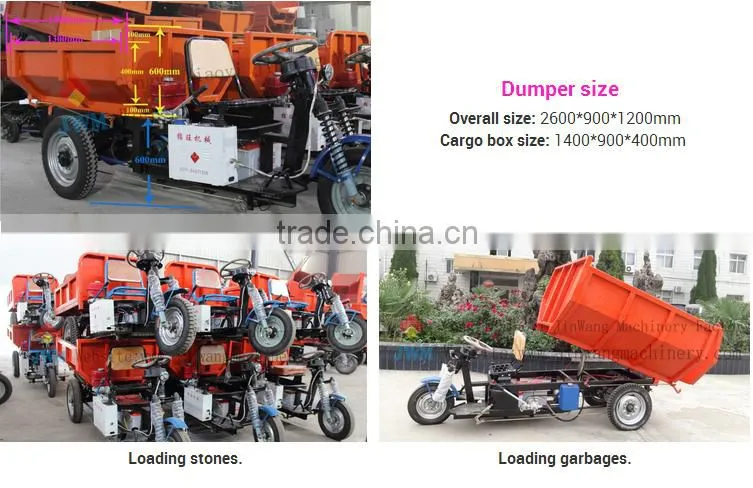

Size	Overall Size(L×W×H)	2600×900×1200mm	3200×1100×1200mm	3600×1200×1400mm
	Box Size(L×W×H)	1400×900×400mm	1700×1100×500mm	1800×1200×500mm
	Thickness of Box	5mm	5mm	5mm
	Workbench Height	600mm	700mm	720mm
Others	Operating speed	15-20Km/h
Others	Maximun gradeability	25 degrees

Main Features

1) No pollution, high performance, low loss and energy saving.

2) Easy to operate and maintain without technical training.

3) Heavy load,wide applying.

4) It is the ideal transport in mining,flourmill,brickyard,etc.

Detailed Images

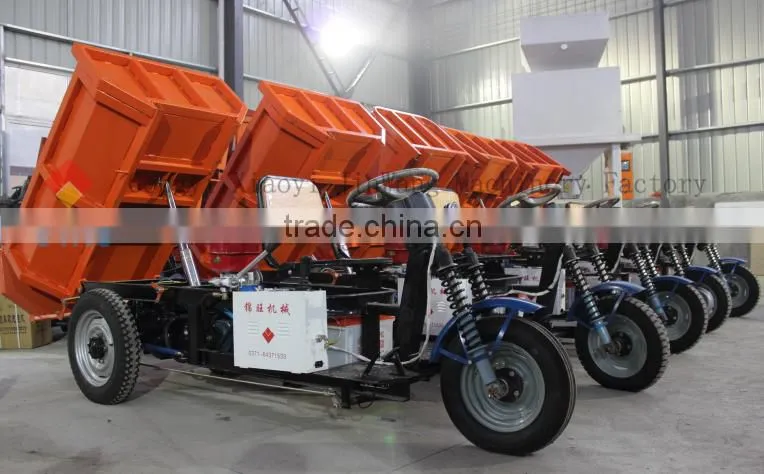

Detail parts of mini truck for cargo.

Front tire: 400-12

Rear tire: 450-14

Use 10# international U-steel material

Accelerator pedal: control speed

Brake pedal: quick and easy to touch

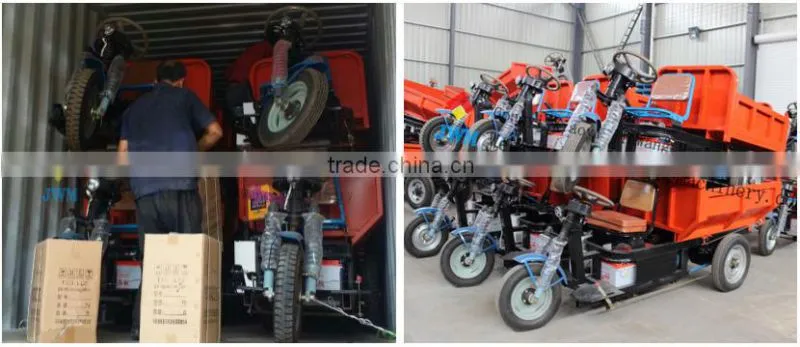

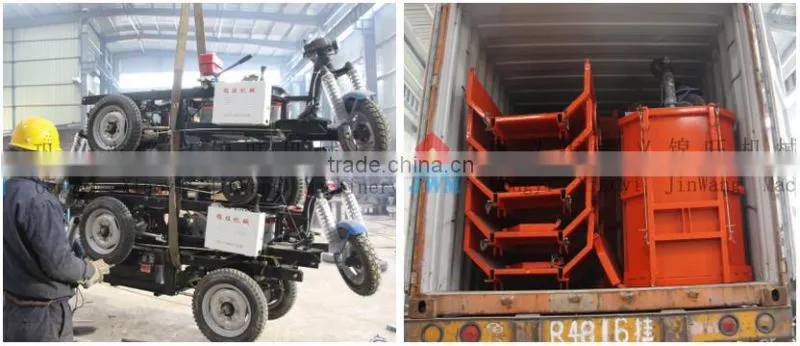

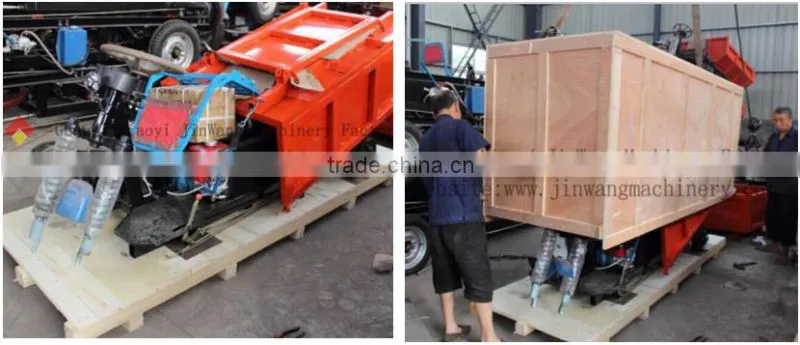

Packing & Delivery

Up to present, our products are sold in Canada, Mexico, Peru, Kenya, Tanzania and so on Southeast Asian countries. And our high quality products and thoughtful after-sale service have won their praise. Welcome new and old customers buy our products.

Less than Container Load

Full Container Load

Load without knock down

Load with SKD ( Semi Knock Down )

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal and use the machine.

* Engineers available to service overseas.

Founded in 1996 and located in north Yong’an Road of Gongyi County, which is the hometown of machinery. Gongyi xiaoyi JinWang Machineryis specialized in combining research, development, production and sale of building material producing machinery together such as mini truck for cargos, electric lifting car for adobes, electric loading vehicles with carpet, electric tricycles for cargo and different types of mucking loaders,etc.

Our products are sold far to twenty more countries and sell products to United States, Canada, United Arab Emirates, Chile, Peru, Tanzania, Zambia, Kenya, Mexico, Georgia, Kazakhstan, Uzbekistan and etc.

We insist on " First Quality, First Trust, and First Service" as our business philosophy, focuses on international and domestic markets, strives for excellence. We are sincerely expecting to cooperate with you and win-win, warmly welcome to visit our company, Jin Wang Machinery. Let's create bright future together.

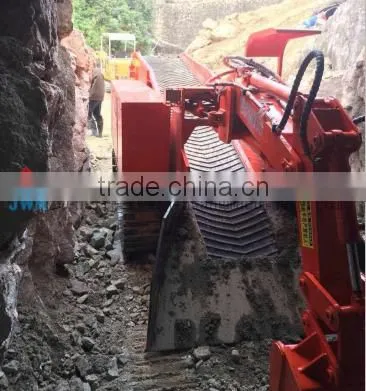

Mucking loader

Mucking Loader also known as excavating Loader, Mucking Loader is made up of the manipulator and conveyor, gripe slag and transport loading combine 2 function to one. It use the electric hydraulic control system and production equipment, which has features such as safety, environmental protection, less Energy consumption and high efficiency.

Youtube links of electric mini dumper

①. https://youtu.be/B0q-nI4JPag

test dumper in our factory.

②. https://youtu.be/vQQ_2jiGKX0

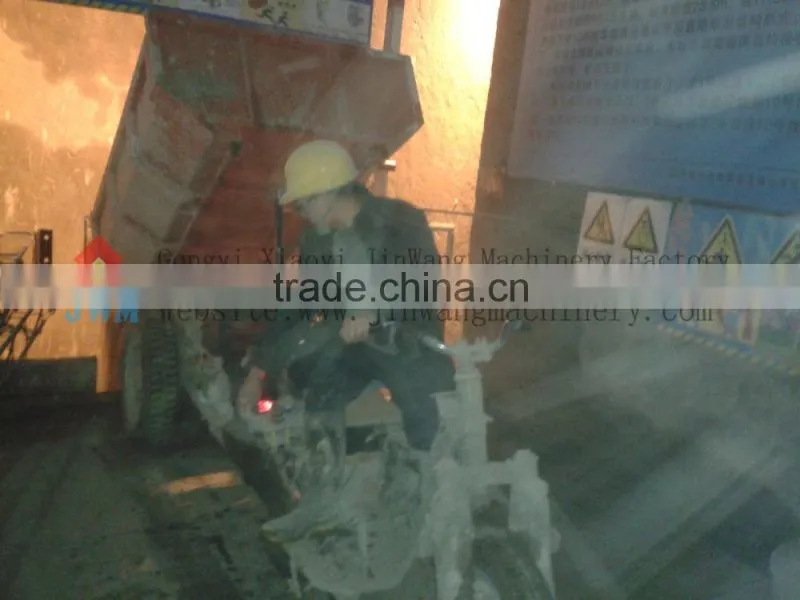

dumper in mine.

③. https://youtu.be/UdHC8HrZNaY

South Africa customer operates dumper.

④. http://youtu.be/3aVxsF_IBB4

India customer operates dumper.
