Nacreous Aluminum Composite Panel for indoor wall panel decoration
Surface Coating: PET / Double PET
Core: Fireproof or Non-fireproof
Panel Thick: 2mm/3mm/4mm/5mm/6mm
Aluminum skin: 0.10-0.50mm
Standard size :1220 x2440mm
MOQ: 600 sqm/color
Special size such as 950mm/1250mm/1500/1590mm MOQ is base on your special sheet
Please name specific size when inquiry ,thanks
Certificates : ISO,SGS,BV,CE,CQC,IAF
Warranty : 5-8 years(PE)
Structure of Aluminum Composite Panel
Features
1 well weather-resistance, high reigidity ,easy for maintenance
2,Easy assembling with conventional&long service life;
3, Good workablity ,fire-restistance,heat&sound insulation;
4, High flexibility and impact-resistance,superior surface finishing,lightweight;
5, Various colours are available to meet you needs
6 Competitive price ,excellent quality and quick delivery;
7,Application : Exterior& Interior decoration,cabinet,ceilling,roof,wall caldding,ect.
Color chart for Pearl surface Aluminum Composite Panel
YUNTAI is exporter and manufacturer for Aluminum Composite Panel (ACP ) for 10 years
ISO quality certificate manufacturer,
Quality Assurance
4 advanced compound line
meet your Big Quantity demand,stable supply
Profession sales team ,effective communication
Rich experience in market and trade process, Save time and energy
Competitive price
Low labor cost ,advance machine and technique
enable us offer more competitive price not scarify quality
Yuntai production line cover more than 20000 sqm with
ISO ,SGS, 2 years Gold supplier from alibaba
Qaulity Assurance and reliable Aluminum Composite Panel supplier
PHYSICAL PROPERTIES
| Properties | 2 mm | 3 mm | 4 mm | 6 mm |
| Aluminum thickness, in (mm) | 0.010 (0.25) | 0.010 (0.25) | 0.020 (0.5) | 0.020 (0.5) |
| Weight, psf (kg/m2) | 0.59 (2.9) | 0.80 (3.9) | 1.12 (5.5) | 1.50 (7.32) |
| Coefficient of expansion, ASTM D696, in/in/°F | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 |
| Tensile strength, ASTM E8, psi (MPa) | - | - | 6913 (48) | 4978 (35) |
| Yield strength, ASTM E8, psi (MPa) | - | - | 6429 (44) | 4466 (30) |
| Elongation | - | - | 13.50% | 17.50% |
| Thermal conductance, ASTM C976, Btu/(ft2 × h × °F) (W/(m2 × K)) | - | - | 10.75 (18) | 8.53 (14) |
| Minimum Drum peel, ASTM D1781, in-lb/in(N-mm/mm) | - | - | 22.5 (100) | 22.5 (100) |
| Thermal resistance, ft2 × h × °F/Btu (m2 × K/W) | - | - | 0.09 (0.016) | 0.12 (0.021) |
| Sound transmission coefficient, ASTM E413 | - | - | 26 | 26 |
FIRE PERFORMANCE PROPERTIES
| Properties | 4 mm | 6 mm | ||
| Surface burning characteristics, ASTM E84 | ||||
| Smoke developed index | 450 maximum | 450 maximum | ||
| Flamespread index | 25 maximum | 25 maximum | ||
| Vertical transmission, ASTM E108 (modified) | Passed | Passed | ||
| Ignition temperature, ASTM D1929 | ||||
| Flash ignition | 716° F (380° C) | - | ||
| Self-ignition | 752° F (400° C) | - | ||
| Rate of burning, ASTM D635 | CCI | - | ||

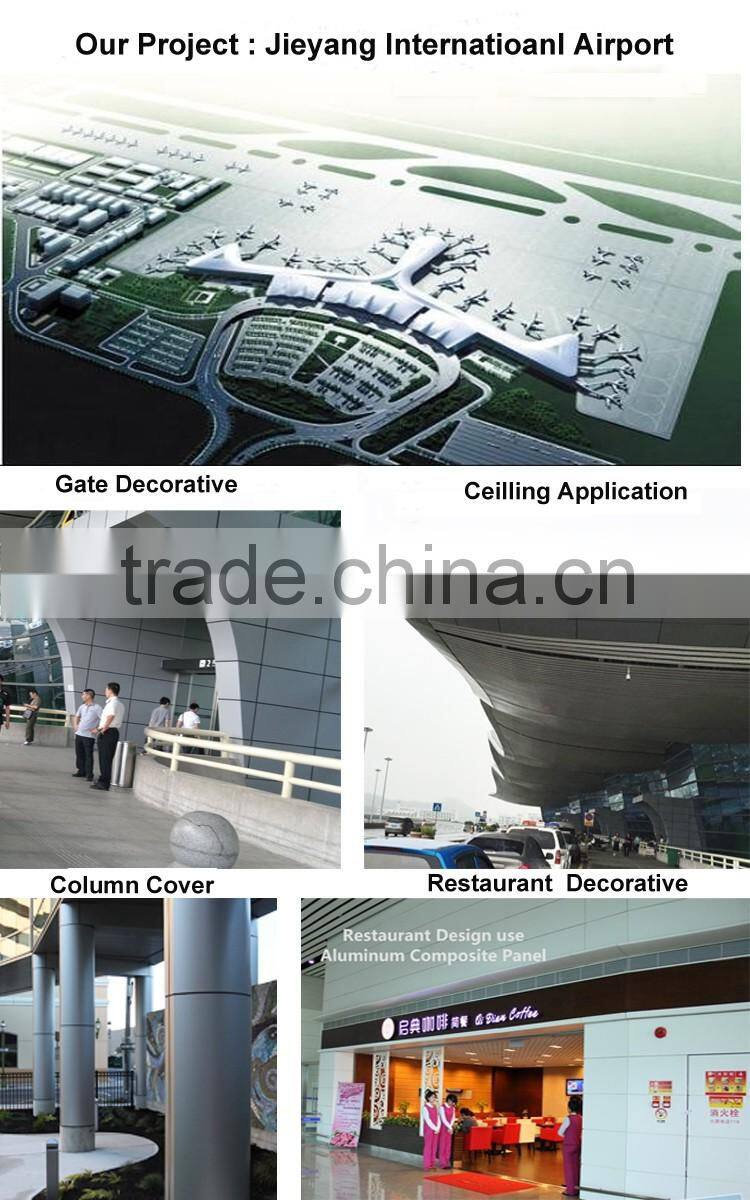

Our prodcuts have been applied to different kinds of decorations all over the world. Exterior decoration,interior ecoration,signs,airports,etc. Take the airport here in JieYang for example, every single piece of Aluminium Composite Panel(ACP) you can see there was all made in our factory!
With quality guarantee and competitive price, our products have been exported to many countries and areas such as USA, Australia, Russia, Saudi Arabia, Indonesia, Mexico, Panama, South Africa, etc. And, we have helped some of our customers, who are now our agents in their local areas, to extend business in their markets. If you are interested, contact us for further cooperation details.
1 How can I get a good price for Aluminum Composite Panel
Please follow our inquiry from , More information you fill out ,more detail and good price you can get.
A series (Solid/ marble/ brush/ mirror ect)
B Surface Coating (PE/PVDF/ Nano PVDF/ FEVE ect )
C Panel size ( W x L x T )
D. Panel Thick
E. Aluminum Skin
F. Core grade (Fireproof or non)
G. Order quantity
H Destination Port (Provide your ocean charge accordingly)
I. Usage for ACP (Reccomend you suitable Item)
2. Core Grade
A Fire-retardant (Fireproof ) ACP ----- B1 grade avaialble
B Non fire-retardant core , 4 grade ,from 1 to 4, quality and weight become better and light
1)normal core, easy breakable when up and down folding,usual for interior decorative
2) good core, compare with normal core,not so easy breakable , usual for interior decorative
3) Better core, not easy breakable when be bend
4.) Best core, no breakable not matter how you fold it
3. MOQ , Payment term
Standard size 1220 x2440 600sqm/color
Your special size such as 950/1250/1500/1590 mm MOQ is base on your size
Payment terms
A Cash
B. T/T 30% in advance ,the Balance against B/L copy
C LC at sight
4. After-Sales Service
PVDF coated ACP: 20 years guarantee
PE coated ACP: 5-8 years guarantee
Claim: Please contact after-sales depart within 60 days after you receive cargo
Please provide us photo which can describe the problem
Minor problem,replace new ACP same quantity for free in the new shippment
Major problem,replace and pay for installation charge
Each claim,you can call our 24 hours tel:0086-15992563464
