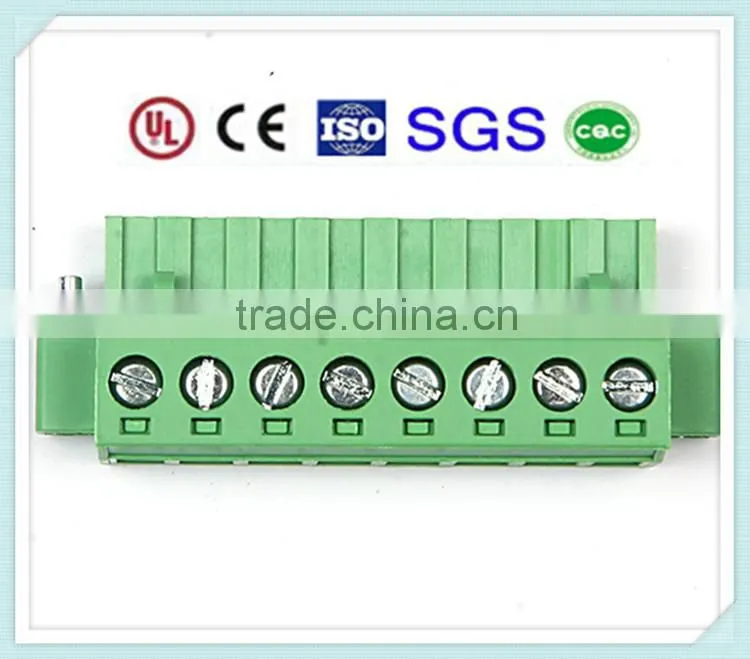

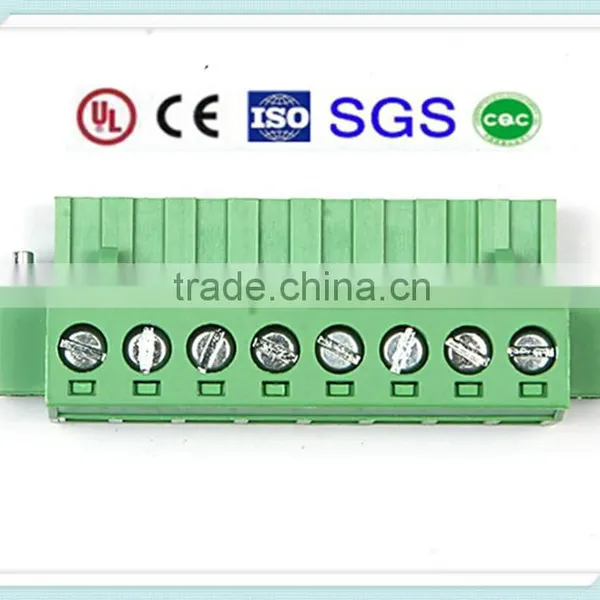

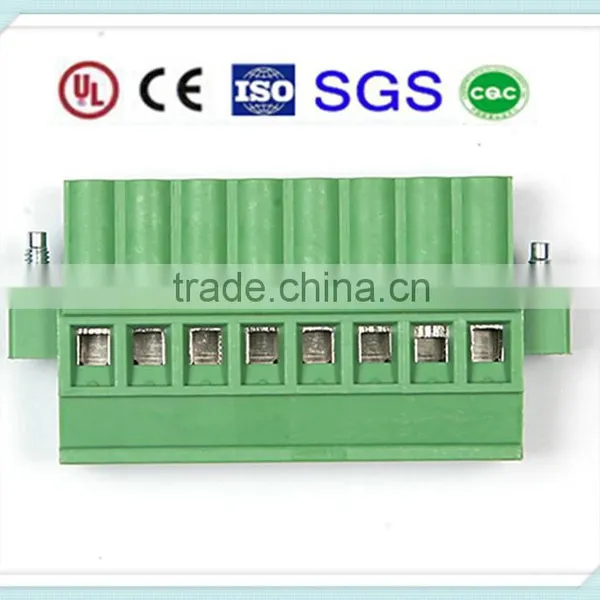

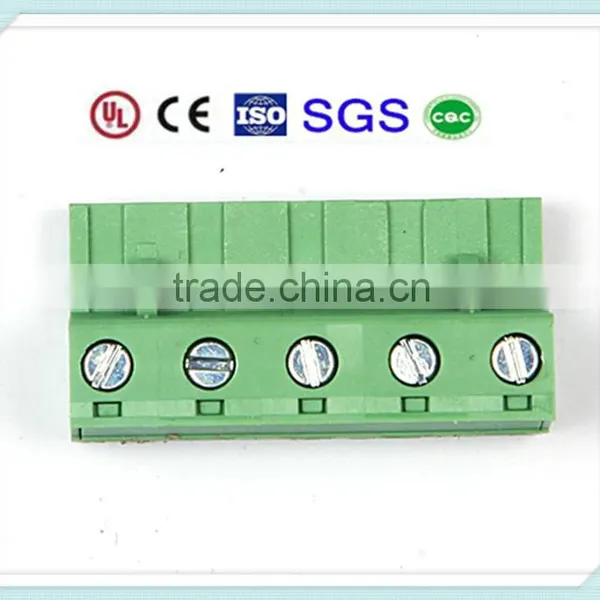

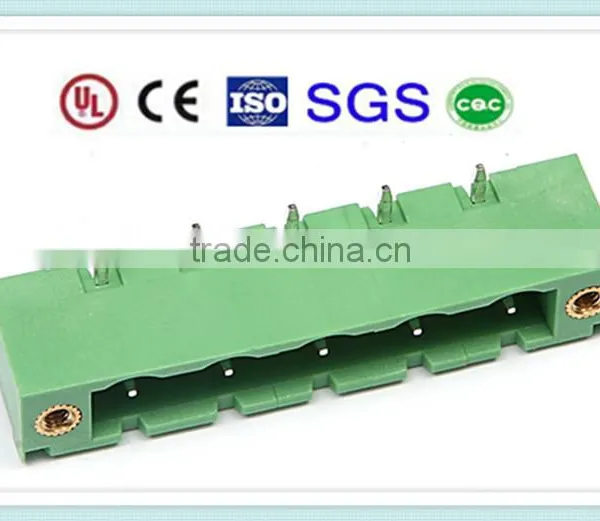

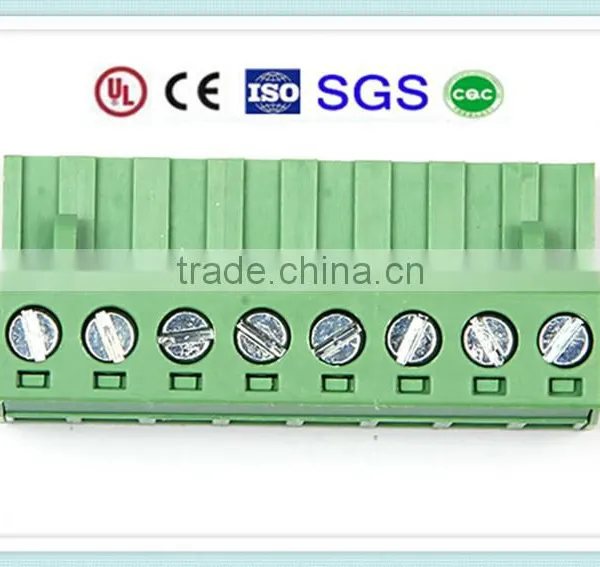

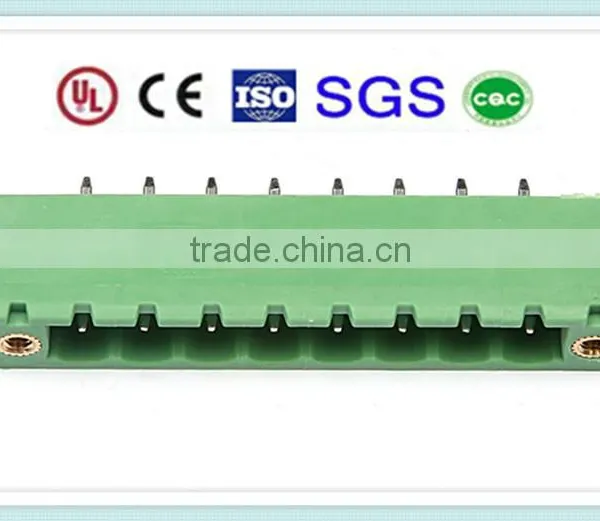

5.08mm Pluggable Terminal Block XS2ESDA 300V 15A
with UL, CE, ISO, SGS, CQC Approved
Flange PCB Terminal Block XS2ESDA
Character
1,Pitch: 5.08mm
2,Terminal number:2P-24P
Material
1,Screws: M3*5 steel Zinc plated
2,Pin header: Brass, Tin plated
Electrical
1,Rated voltage: 300V
2,Rated current: 15A
3,Wire range: 24-12AWG 2.5mm²
Mechanical
Temp. Range: -40ºC to +105ºC
MAX Soldering: +250ºC for 5 Sec.

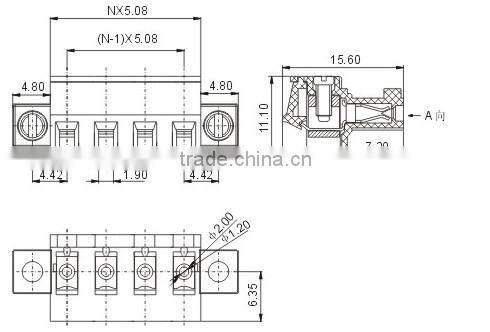

Flange PCB Terminal Block XS2ESDA Drawing:
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A PCB Terminal Block Socket XS2EHDB
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A, PCB Terminal Block Socket XS2EHDC
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A , Close Type,
PCB Terminal Block Socket XS2EHDF
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A, Close Type,
PCB Terminal Block Socket XS2EHDL
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A , Open Type,
PCB Terminal Block Socket XS2EHDV
5.08mm Pluggable Terminal Block XS2ESDA 300V 15A, Open Type,
PCB Terminal Block Socket XS2EHDR
