Fireproof B2 Grade Interior Decorative Door Cover ACP
US$ 9.38 - 11.2
MOQ: 600 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yuntai
Model Number:
YT103
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen/Shan Tou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Building Facade Finishes Aluminum Composite Panel ACPUS$ 3 - 9.38MOQ: 600 Square Meters -
Patio Wall Cladding ACP Aluminum Composite PanelUS$ 4 - 15MOQ: 600 Square Meters
-
Exhibition Room Decorative Material Aluminum Composite PanelUS$ 3.54 - 13.72MOQ: 600 Square Meters
-
Shop Sign Board Aluminum Composite PanelUS$ 3.45 - 12.95MOQ: 600 Square Meters
-
Good Quality Wall Panel Aluminium Composite Panel With PE CoatedUS$ 3.5 - 13.64MOQ: 600 Square Meters
Place of Origin
Guangdong, China
Brand Name
Yuntai
Model Number
YT103
Usage
Indoor
Function
Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment
Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Other, Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Nano coating

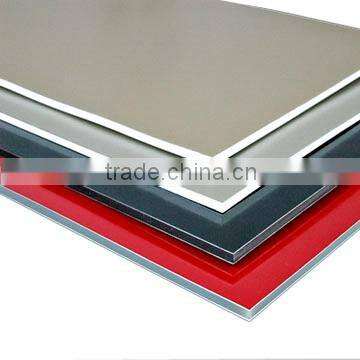

Fireproof B2 grade interior decorative door cover ACP
Product Description
A. Specifications and Sizes
| Dimensions | Tolerance |
| 1, Thickness: 1mm,2mm,3mm,4mm,5mm,6mm | ± 0.04 |
| 2, Skin Thickness:0.05-0.5mm | ± 0.01 |
| 3, Width: 1220mm-2000mm | ± 2 |
| 4, Length: 800mm-6500mm | ± 3 |
| 5, Standard size:1220mm*2440mm | |
| 6, Total thickness: 2-4mm for indoor decoration | |
| 7, Total thickness: 4-6mm for outdoor decoration | |
| 8, Colors: Customized | |
| 9, Special size: available | |
| (Size can be customized according to the designs of curtain walls.) |
B. Product Info
| Fireproof B2 grade interior decorative door cover ACP | |
| 1, Product: Fire resistant Aluminum-plastic Composite Panel | |
| 2, Surface Coating:PVDF(Anodized,Brushed,Foil Decoration,Mirror,PE,Printing) | |
| 3, Standard:according to GB/T 17748-2008 | |
| 4, Certificates:ISO,SGS, | |
| 5, OEM accepted | |
| 6, Guarantee for 25 years(PVDF) | |
| 7, 9 years production history | |
| 8, MOQ:600 square meters/color |
C. Core Quality
| Top quality FR core | |
| Remark: | |
| 1) We use the highest quality raw material to make the fire-resistant core; | |
| 2) Raw fire resistant material tested before injection; | |
| 3) Final products go through strict tests. |
D. Features
| 1, Well weather-resistance, high rigidity, easy for maintenance, only neutral cleanser and water needed for its self-clean performance; | |
| 2, Easy finishing with conventional woodworking tools. Short time needs for project; | |
| 3, Good workability, fire-resistant, heat & sound insulation; | |
| 4, High flexibility and impact-resistance, superior surface flatness, lightweight, rigid; | |
| 5, Various colours are available to meet your needs; | |
| 6, Competitive price,excellent quality and quick delivery; | |
| 7, Project scope of application decoration of both interior and exterior walls of large-scale modernized constructions, outdoor billboards, signs, large-scale exposition booth construction, building renovation, etc. |
YUNTAI is exporter and manufacturer for Aluminum Composite Panel (ACP ) for 10 years
ISO quality certificate manufacturer,
Quality Assurance
4 advanced compound line
meet your Big Quantity demand,stable supply
Profession sales team ,effective communication
Rich experience in market and trade process, Save time and energy
Competitive price
Low labor cost ,advance machine and technique
enable us offer more competitive price not scarify quality

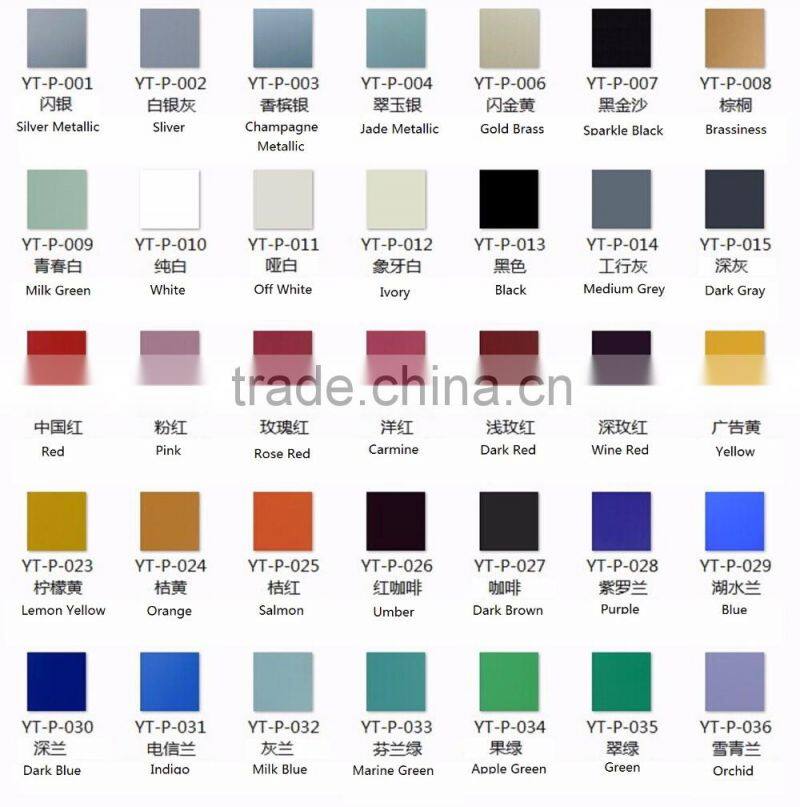

Color Chart
We have all the usual colors for Fire resistant exterior/interior ACP sheet ACM used in celling/wall/sign . Special colors are also available to meet your need.
Online Chat

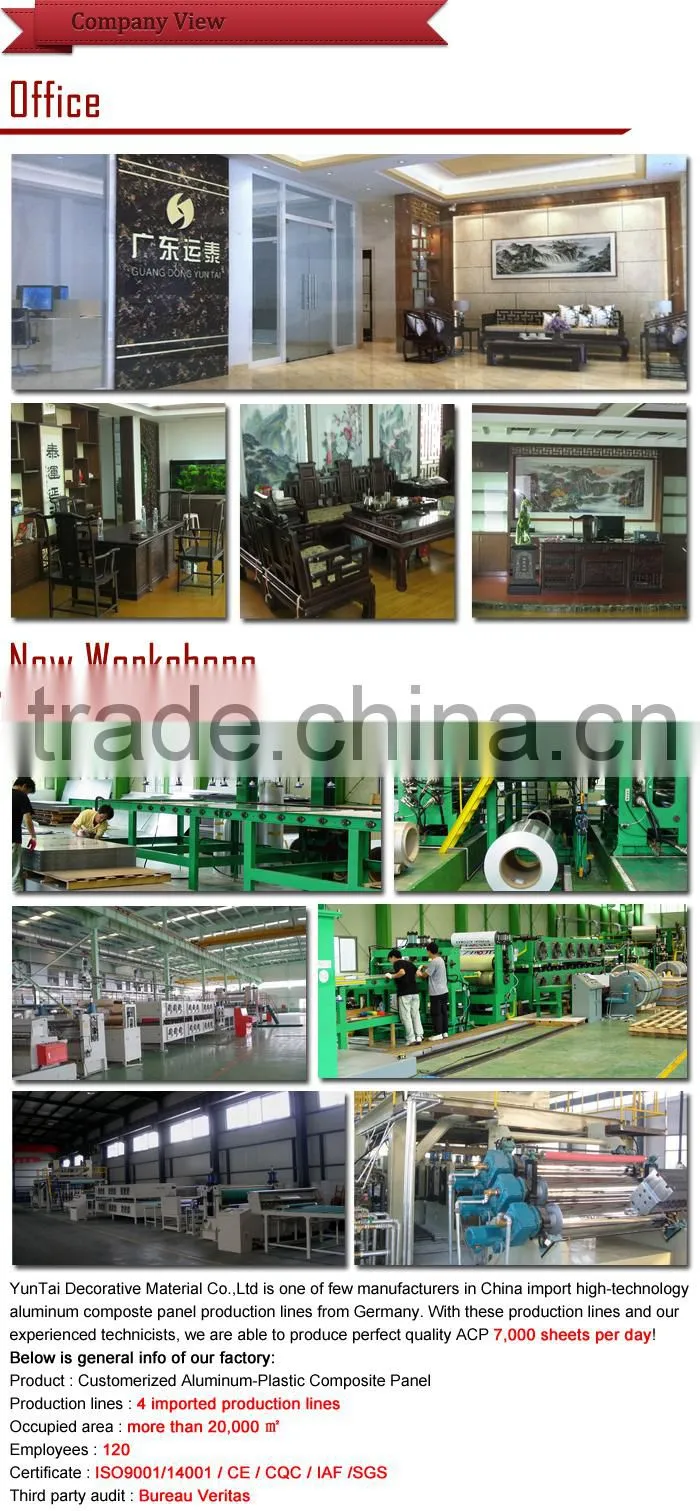

Company View
PHYSICAL PROPERTIES
| Properties | 2 mm | 3 mm | 4 mm | 6 mm |
| Aluminum thickness, in (mm) | 0.010 (0.25) | 0.010 (0.25) | 0.020 (0.5) | 0.020 (0.5) |
| Weight, psf (kg/m2) | 0.59 (2.9) | 0.80 (3.9) | 1.12 (5.5) | 1.50 (7.32) |
| Coefficient of expansion, ASTM D696, in/in/°F | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 | 13 × 10^-6 |
| Tensile strength, ASTM E8, psi (MPa) | - | - | 6913 (48) | 4978 (35) |
| Yield strength, ASTM E8, psi (MPa) | - | - | 6429 (44) | 4466 (30) |
| Elongation | - | - | 13.50% | 17.50% |
| Thermal conductance, ASTM C976, Btu/(ft2 × h × °F) (W/(m2 × K)) | - | - | 10.75 (18) | 8.53 (14) |
| Minimum Drum peel, ASTM D1781, in-lb/in(N-mm/mm) | - | - | 22.5 (100) | 22.5 (100) |
| Thermal resistance, ft2 × h × °F/Btu (m2 × K/W) | - | - | 0.09 (0.016) | 0.12 (0.021) |
| Sound transmission coefficient, ASTM E413 | - | - | 26 | 26 |
FIRE PERFORMANCE PROPERTIES
| Properties | 4 mm | 6 mm | ||
| Surface burning characteristics, ASTM E84 | ||||
| Smoke developed index | 450 maximum | 450 maximum | ||
| Flamespread index | 25 maximum | 25 maximum | ||
| Vertical transmission, ASTM E108 (modified) | Passed | Passed | ||
| Ignition temperature, ASTM D1929 | ||||
| Flash ignition | 716° F (380° C) | - | ||
| Self-ignition | 752° F (400° C) | - | ||
| Rate of burning, ASTM D635 | CCI | - | ||
