. Aluminum Window Friction Stay Hinge Series
Gao yao City Jinli Xi Da
Hardware factory
Description of goods
1. Adopts high quality 304 stainless steel
2.Operates normally after 50000 times strict open/close
3.Easy to install and smooth operation
4. Be suitable for light top projecting style windows
5.It provides adequare friction at all opening angles
6.Durable, applied and sesure
7.Available for left and right hands
8.OEM service offered
9. For UPVC and aluminum window
10.Silding piece high strength
Quit details
(1).Material: SS304, SS301, SS202, SS201, 430
(2)Bar thickness: 2.0/2.5/3.0 mm
(3)Track width:13.4/14/18/19/22 mm
(4)Length: 200mm~900mm (6"~36"
(5)Payment terms:L/C, T/T
(6)Packing: 1pair/poly bag,100pcs/carton
(7)Delivery time: 15 ~ 30 days
size |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Max Vent Hight (mm) |
Max Vent Width(mm) |
Max Vent weight (mm) |
Opening angle |
12" |
314 |
163 |
120 |
62 |
36 |
307 |
231 |
203 |
29 |
800 |
1000 |
45 |
25°/30° |
14" |
362 |
200 |
158 |
62 |
36 |
348 |
254 |
213 |
29 |
1000 |
1100 |
55 |
25°/30° |
16" |
413 |
240 |
198 |
62 |
36 |
403 |
286 |
228 |
29 |
1200 |
1200 |
65 |
25°/30° |
18" |
460 |
271 |
229 |
62 |
36 |
457 |
289 |
231 |
33 |
1200 |
1300 |
70 |
25°/30° |
20" |
512 |
302 |
160 |
62 |
36 |
505 |
309 |
253 |
33 |
1200 |
1400 |
75 |
25°/30° |
22" |
550 |
268 |
226 |
62 |
36 |
458 |
458 |
258 |
33 |
1400 |
1400 |
80 |
25°/30° |
How to choose window friction stay
The selection of friciton stay depends on the window weight and size
(1)Required bearing load of friction stay =the weight of sash (glass weight + profile weight)* safetly factor
(2)The selection of its length. Generally, the length of friction stay is 2/3 of the window height. For light windows, 1/2 of the window height. For top-hung windows, generally 1/2 of the window height.
(3)The length of friction stay can be referred according to the above two requirements.
(4)The utmost opening angle of the sash is relevant with the selection of friction stay and installation position
(5)Making the aspect ratio of sash and frame lower than 1.5

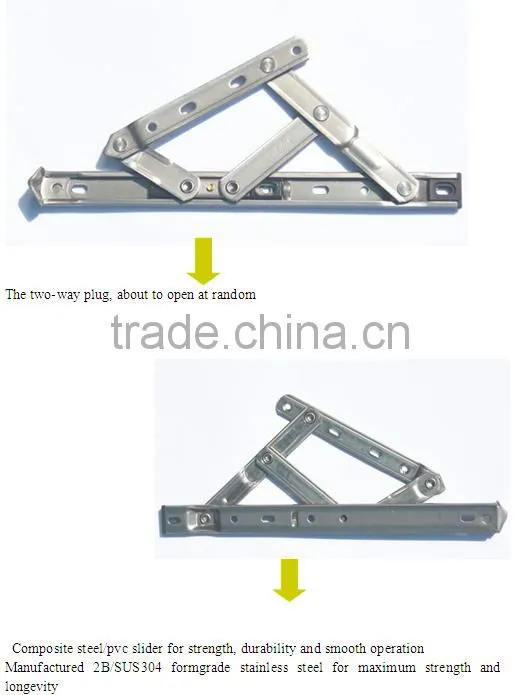

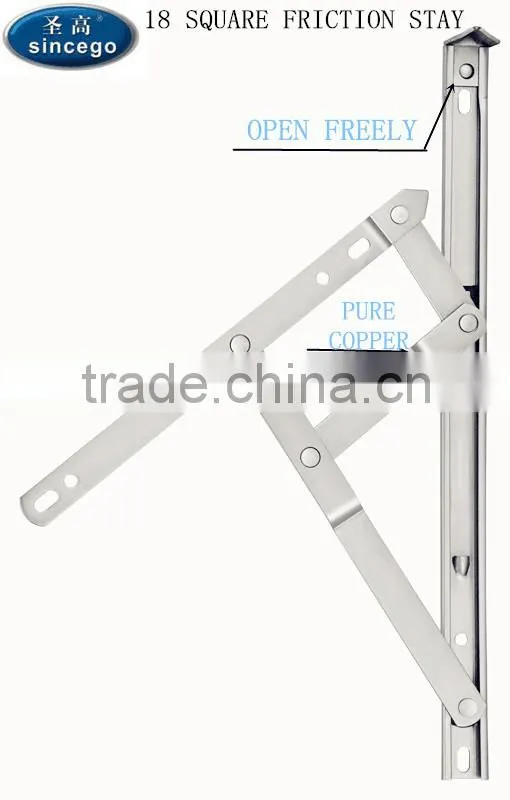

Product Show
Why do you choose Xi Da ?
1.In order to make window friction stay become stronger and better, we just choose steel that we produce, we carefully control the quality of steel, and make it reach international standard steel, so that we promise that our window friction stay is stonger than other window friction stay in market.
2.Xi Da provide all kinds of specifications to suit different requirements of customers
3.For using high hardness schomburg plastic sliders, products are not only high strehgth, good wear resistance but also sliding smoothly, no noise.
4.Innovate from traditional window stays, high-head design makes the windows anti-drop, double satefy and strength
5.Strong friction capabilty, rough and strong anti-rust capability. They are applicable in top hung window and all kinds of casement window.
6.Xi Da can accorde customer's requitement to design packing.
7. Turning left and right -sided, symmetrical corners structure makes windows closed accurately and reliably, better sealing.
8. Xi Da can make some brand or shape that customers want on the products
9.We are Alibaba trade assurance's verri certified supplier, so that we are the right one supplier that you look for.

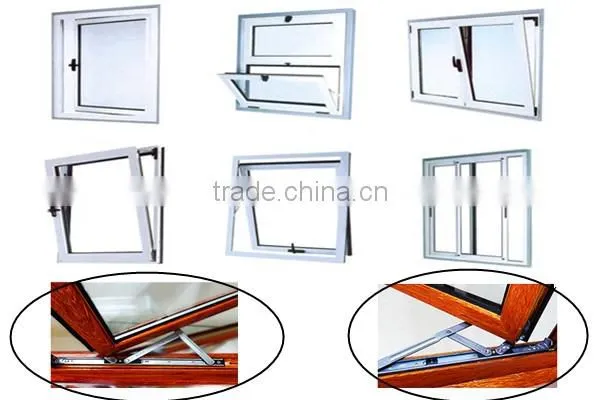

Suitable ForThe Those Window
Friction hinge installation
a,Friction hinge fastening using M5*8 stainless steel countersunk head screwsor ST4.2/4.8*12 stainless steel pan head self-tapping screw.
b.According to the actual situation of the rational use of screws, recommend places where there are sink holes shall be countersunk screws to ensure a solid and reliable friction hinge after installation.
c.Must make friction hinge close links with the sash and frame, not loose. The screw must be tightened with a screw or bolt, one less will affect the bearing friction hinge when used.
d.The profit is recommended when thickness is less than 1.4 mm, if necessary, at the bottom of the aluminum pad lined steel, using the pan head screws.

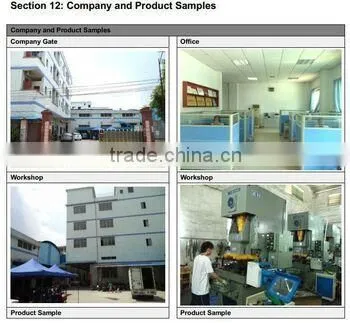

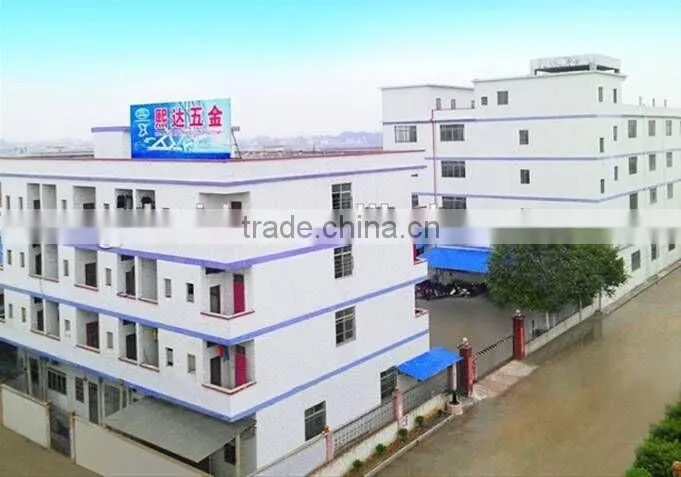

About us
Certificate of Xi Da
FAQ
Q: Are you factory?
A: Yes, we are a professional manufacturer factory hardware
we have many production machine line and more than 150 experienced workers and 20 quality inspection personnel in my factory, which can quickly offer high quality and durable products to dear customers. Giving a chance to XiDa to provide a best service to you.
Q: How can i get the sample from your factoy?
A: customers just need to give me the address and the product type and size, customers neeed to pay for the sample and postage, but i promise that we will deduct the money of sample and postage for customers in business, which means customers still get the free sample.
Q: Can i visit your factory or office?
A: Of course you can, we heartly welcome you to XiDa, please try to contact me by email or phone, and we will make the appointment and arrangement to pick up as soon as possible.
Q: Can i decide the packing?
A:Yes, customers are god in Minky's heart, you can tell me by email or phone, and i will ask professioner worker to deside the packing for you, and i will send pictures to show the picking for you.
Q: How do i know the products' quality and the packing ways are the one required?
A: For each order, strict inspection will be carried our by the QC department before shipping. The bad products will be avoid within door.
BEST REGARDS ADN GOD BLESS YOU!!!!
If you want to place a trial order, please do not hesitate to contact us, we will quote you as soon as possible.
