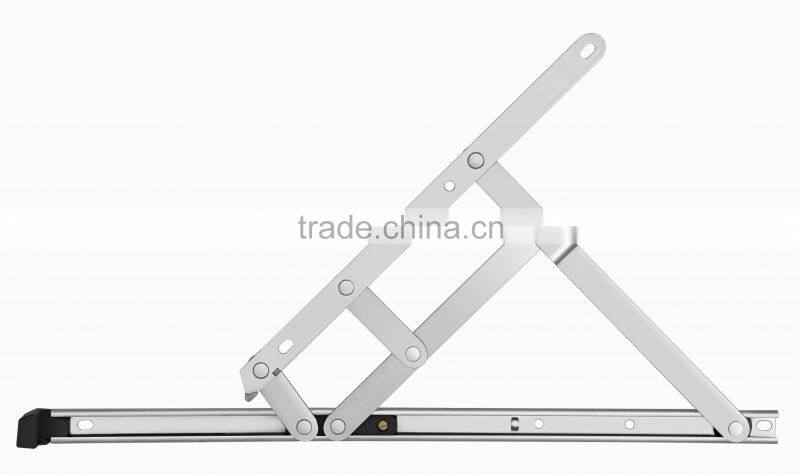

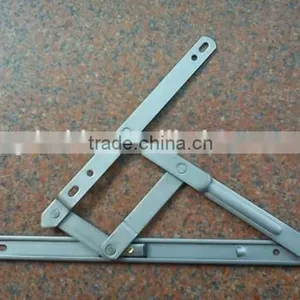

Friction Stay,Casement Window Hinge,Friction Hinge
INTRODUCTION
Gaoyao Jinli Xi Da Hardware Products Factory is specializing in manufacturing hardware fitting for the aluminum windows,glass walls and UPVC windows. We have brands of ”Sincego ”& “Slick ”.Our company was founded in 2000, and covers an area of 8,000 square meters with building area of 5,000 square meters. Our company was IS09001 certified. Our company has gained the membership of “China Decorative Association” and “Decorative Metal Structure Association of China ”, and is a qualified enterprise of Guangdong Meterage Assurance Association.Our company has been honored as “An Enterprise That Respected the Contract & Good Credit ”by Zhaoqing municipal government for many years.
Our factory is located in the Pearl River Delta Economic Circle, and it takes half an hour’s drive from our factory to Guangzhou and 10 minutes’ drive to Foshan City. The transportation and logistics are very convenient. Our factory is flourishing by means of constantly, updated technical reform and advanced modern equipment and machine tools. Our company has gained a good reputation in domestic market and achieved a good ,market share. Most of our products have been exported to Europe, Hong Kong, Macao, Taiwan area, and South East Asia.
Model |
XD |
Material |
stainless steel |
Finish |
Stainless steel surface |
Size |
8" 10" 12" 14" 16 "18 "20 "22 "24" ~36" |
Thickness |
2.0mm/2.5mm/3.0mm |
Groove width |
13.4mm/22mm |
Opening angle |
65°~90° |
Packing |
Plastic bag and carton |
Payment items |
T/T L/C Money Gram Western Union |
Delivery time |
15-30days |
Color |
Stainless steel color |
Features |
1,Composite slider for strength, durability and smooth operation 2,Adjustment of opening angle is available,easy to operating 3,Effective weather sealing and fully concealed once fitting 4, Bearing high weight window 5,All friction stays are effectively to protection against corrosive atmospheres. |
Application |

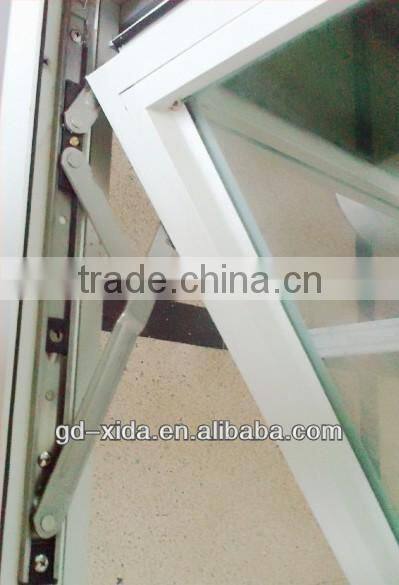

Suitable for casements, top-hung windows, aluminum windows and ventilators. |

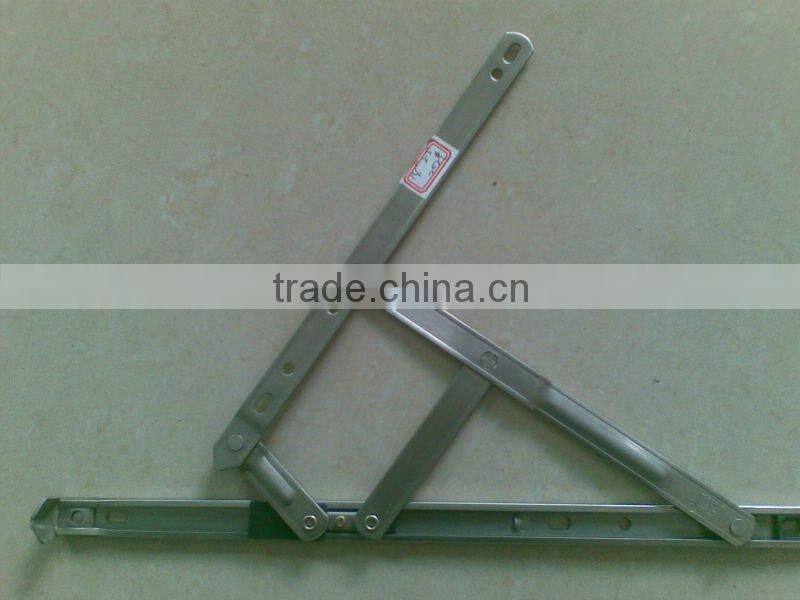

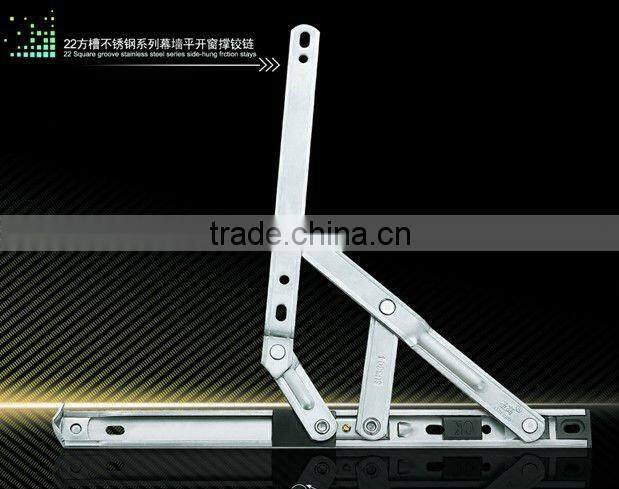

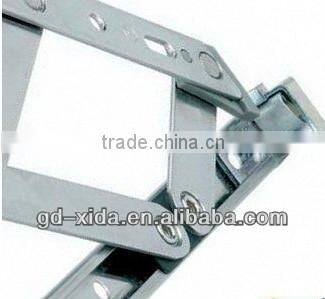

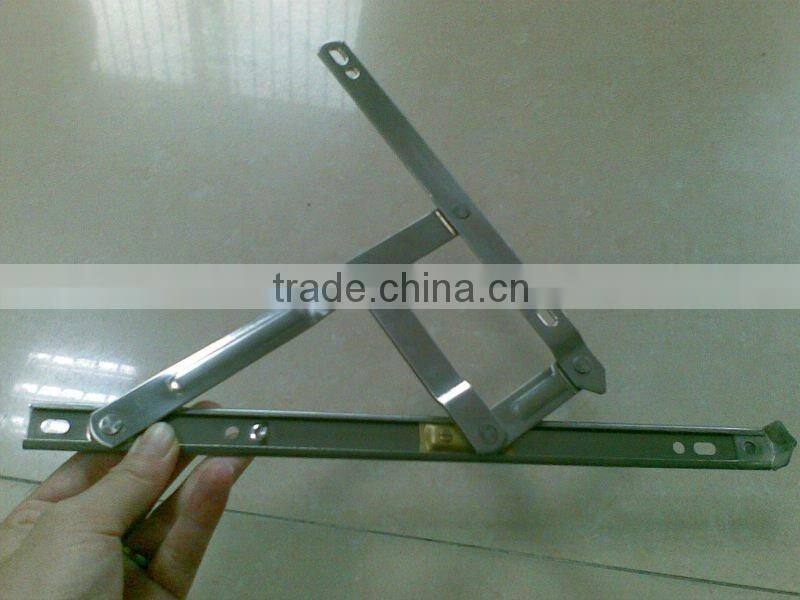

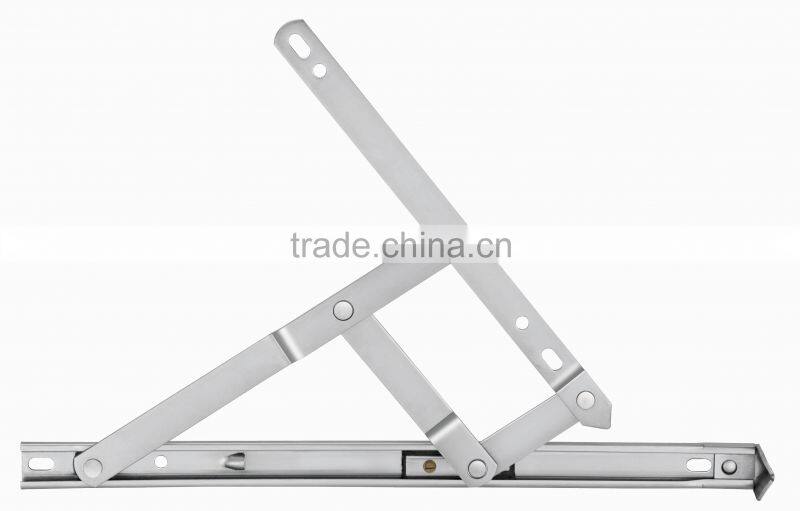

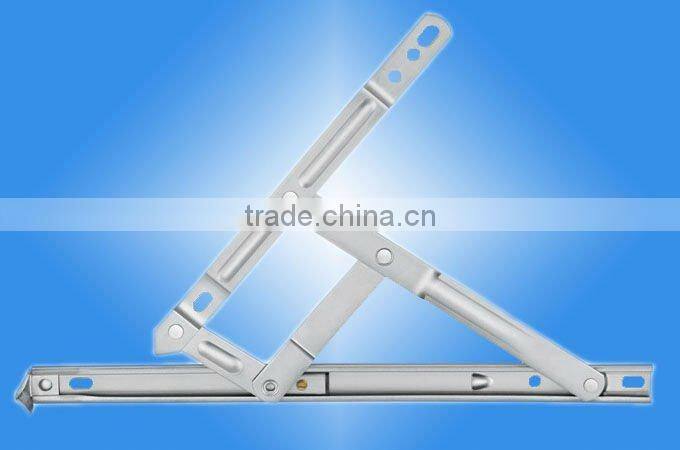

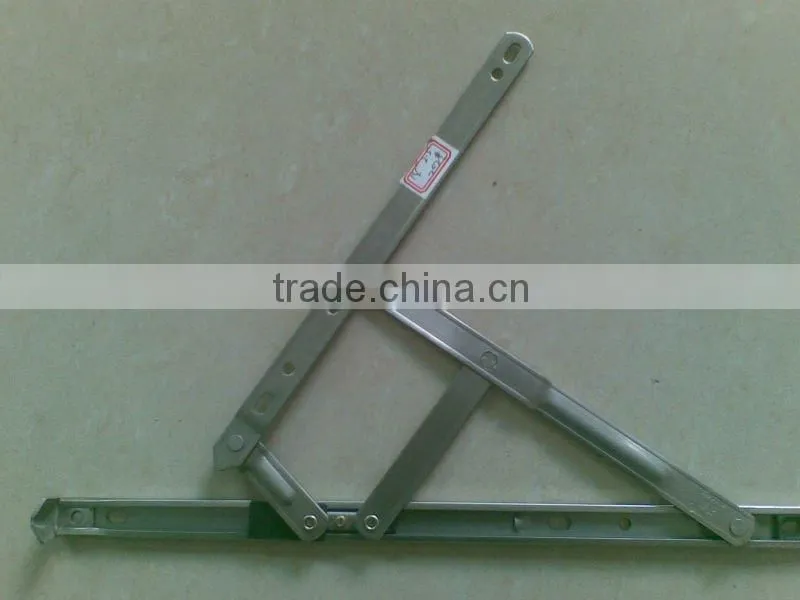

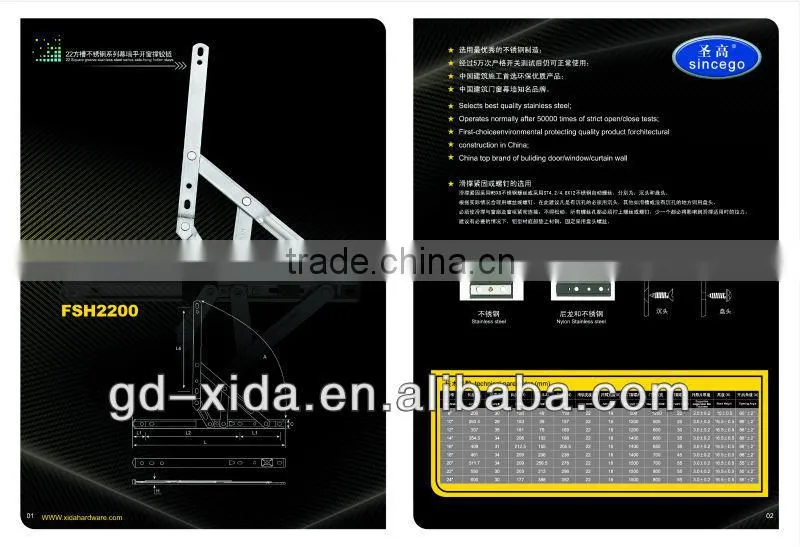

Product Details Picture:

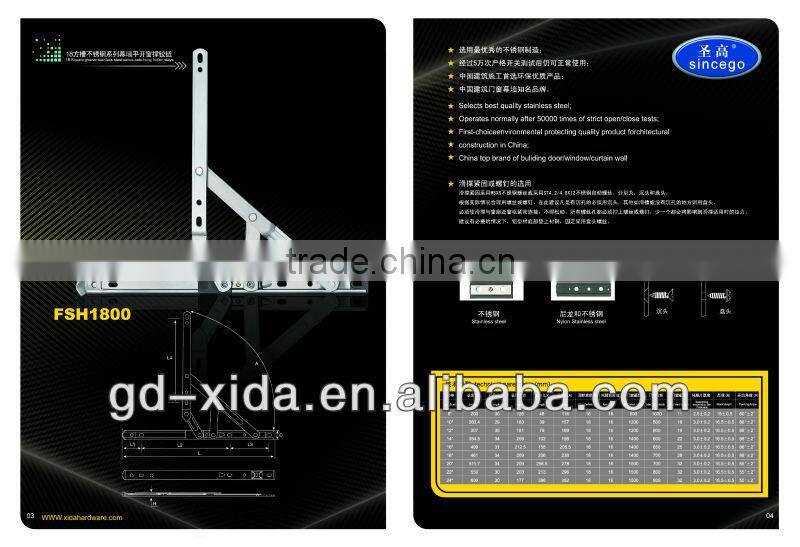

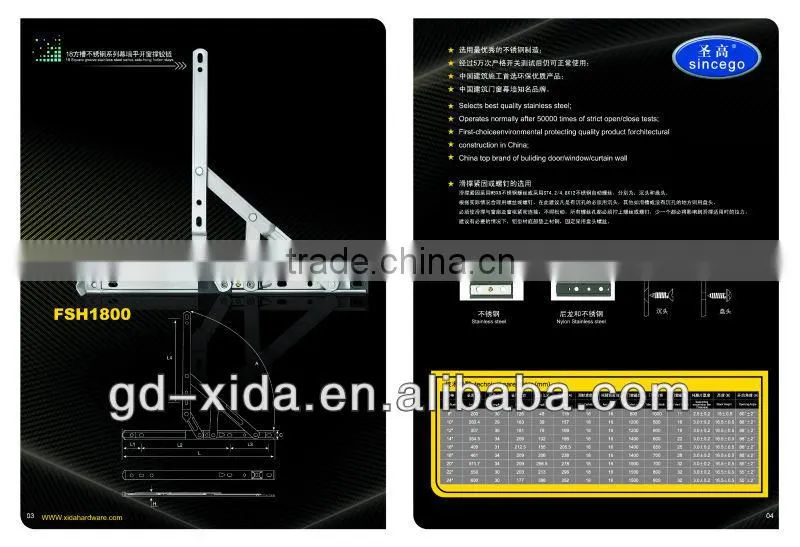

Selects best quality stainless steel;
Operates normally after 50000 times of strict open/close tests;
First-choiceenvironmental protecting quality product forchitectural construction in China;
China top brand of building door/window/curtain wall

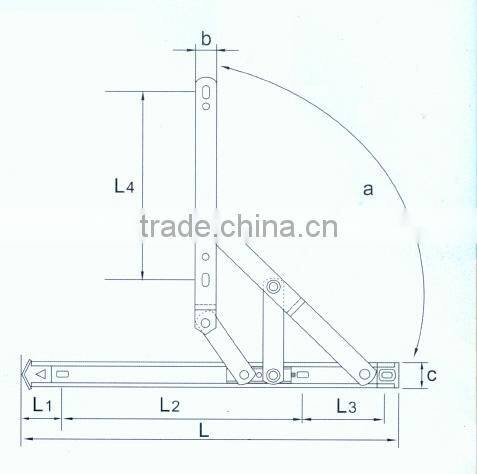

Size |
Track Width |
Arm Width |
Max Vent Height |
Max Vent Width |
Max Vent Weight |
Bar Thickness |
Stack height |
Degree of Opening |
8" |
18 |
16 |
500 |
1000 |
11 |
2.0±0.2 |
17±0.5 |
65°±2° |
10" |
18 |
16 |
1000 |
500 |
16 |
2.0±0.2 |
17±0.5 |
85°±2° |
12" |
18 |
16 |
1100 |
600 |
19 |
2.0±0.2 |
17±0.5 |
65°±2° |
12" |
18 |
16 |
1150 |
600 |
22 |
3.0±0.2 |
17±0.5 |
65°±2° |
16" |
18 |
16 |
1200 |
600 |
25 |
2.0±0.2 |
17±0.5 |
90°±2° |
16" |
18 |
16 |
1250 |
600 |
28 |
2.0±0.2 |
17±0.5 |
90°±2° |
20" |
18 |
16 |
1200 |
700 |
28 |
2.0±0.2 |
17±0.5 |
40°±2° |
24" |
18 |
16 |
1200 |
750 |
28 |
2.0±0.2 |
17±0.5 |
40°±2 |
Why choose us??
Meterial:SS304,SS301,SS202,SS201
Bar thickness:2.0/2.5/3.0mm.4~7 bars available
Track width:13.5/18/22mm
Suitable for top/side/bottom hung UPVC window .

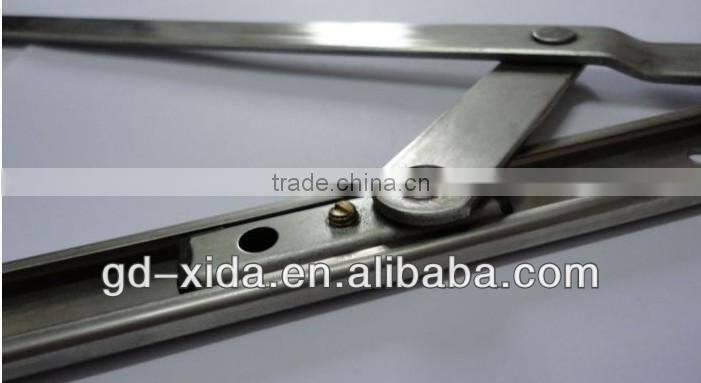

All rivet joints are spun-riveted with special nylon washers in between for extra smooth action
Easy cleaning and maintenance
Reliability is our strong point.
We will very happy to receive your mail!!!!
