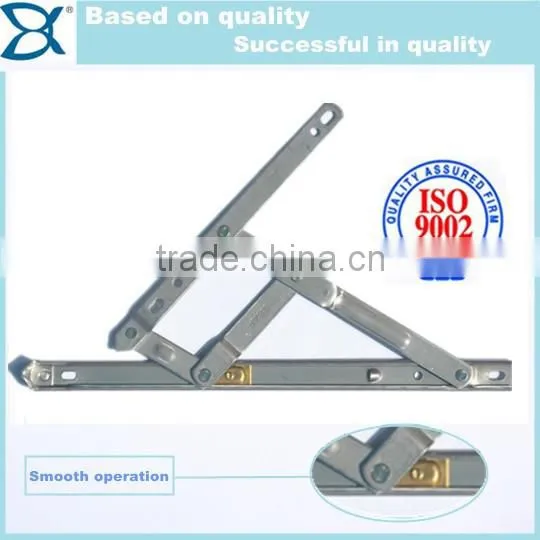

XiDa Hardware Stinaless Steel Slide Hinge for side hung aluminum windows
Description of goods
- 1. Adopts high quality 304 stainless steel
- 2. Operates normally after 50000 times strict open/close. Easy to install and smooth operation
- 3. Be suitable for light top light top projecting style windows.
- 4. It provides adequate friction at all opening angles.
- 5. durable,applied and sesure
- 6. OEM service offered
- 7. available for left and right hands
- 8. for UPVC and aluminum window

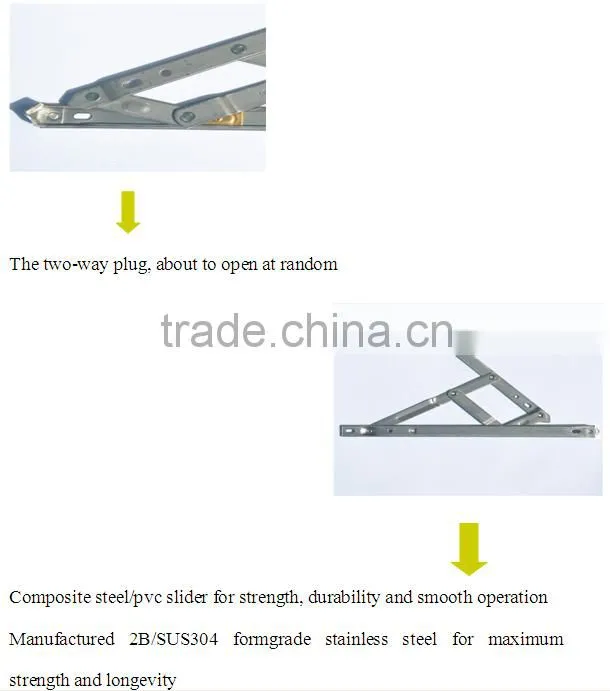

- 9. Sliding piece high strength
- 10. Can be used in normal use after 50000 times switing test.
Material:SS304,SS301,SS202,SS201
Bar thickness:2.0/2.5/3.0mm.4~7 bars available
Track width:19mm

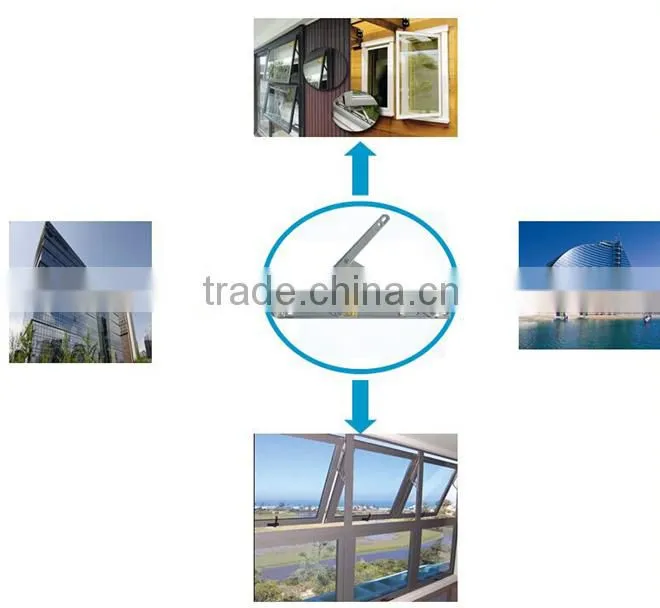

Suitable for top hung /side hung UPVC window
All rivet joints are spun-riveted with special nylon washers in between for extra smooth action.
Payment Terms: L/C T/T.
Packing:1pair/poly bag,100pcs/carton.
Delivery time:20-30days

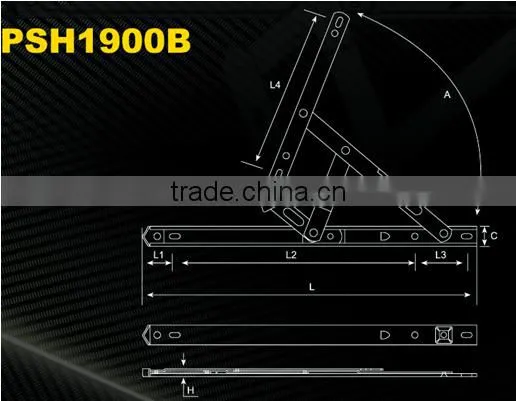

Specification |
L |
L1 |
L2 |
L3 |
L4 |
TRACK ARM |
ARM WIDTH |
MAX VENT HEIGHT |
MAX VENT WIDTH |
MAX VENT WEIGHT |
SUPPORTIVE SUSPENSION BAR THICKNESS |
STACK HEIGHT |
Opening Angle |
8” |
200 |
25 |
136 |
35 |
118 |
19 |
15/16 |
500 |
1000 |
11 |
2.0±0.2 |
15±2.0 |
60°±2° |
10” |
255 |
28 |
183 |
41 |
157 |
19 |
15/16 |
1100 |
500 |
16 |
2.0±0.2 |
15±2.0 |
88°±2° |
12” |
300 |
30 |
196 |
69 |
169 |
19 |
15/16 |
1200 |
600 |
19 |
2.5±0.2 |
15±2.0 |
88°±2° |
14” |
345 |
29 |
240 |
70 |
210 |
19 |
15/16 |
1400 |
700 |
22 |
2.5±0.2 |
15±2.0 |
88°±2° |
16” |
400 |
32 |
209 |
154 |
200 |
19 |
15/16 |
1500 |
800 |
25 |
2.5±0.2 |
15±2.0 |
88°±2° |
18” |
450 |
29 |
199 |
217 |
203 |
19 |
15/16 |
1500 |
900 |
28 |
2.5±0.2 |
15.5±2.0 |
88°±2° |
20" |
500 |
31 |
248.5 |
237 |
290.5 |
19 |
15/16 |
1800 |
1000 |
32 |
2.5±0.2 |
15.5±2.0 |
85°±2° |
Product advantages:
Quality contral and test:
