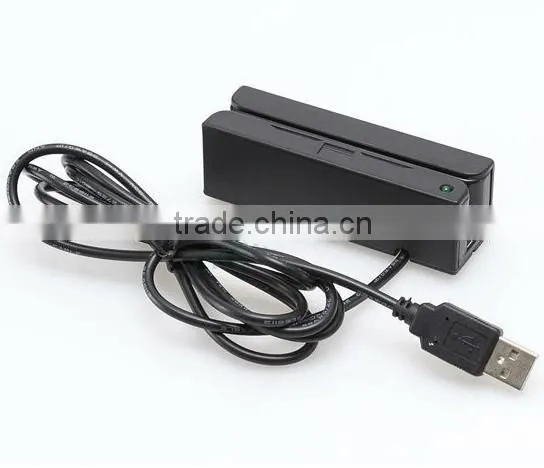

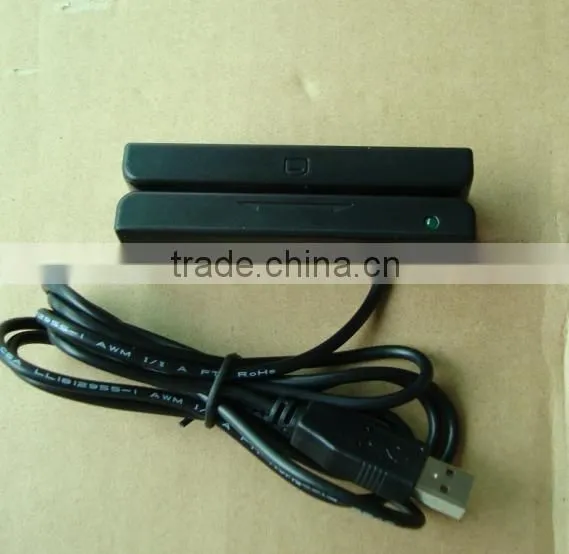

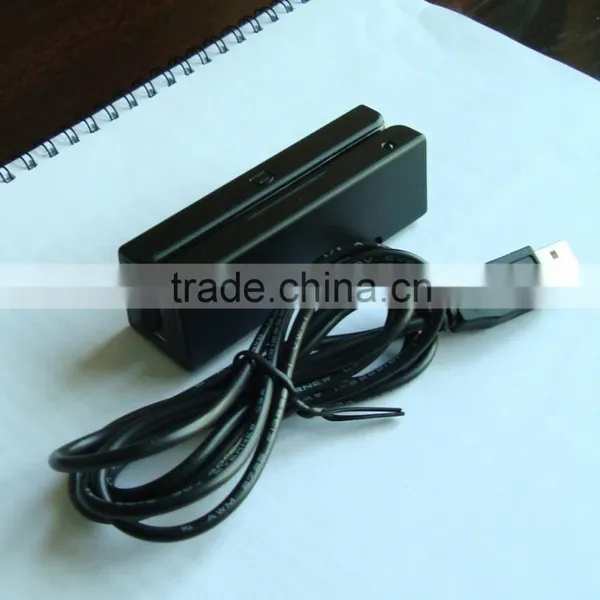

USB 3 Tracks Magnetic Stripe Card Reader 90mm

It is a USB interface manual magnetic card reader. It uses the special high-integration decoding capacity chip, with low power consumption and strong anti-interference feature. Totally comply with ISO7810/11/12/13, ABA, AAMVA, etc standards. Bi-Directional read capacity. Get power via USB from PC. Reader’s configuration and structure is elegant and compact. It has stable excellent performance. No need driver. Fast reading speed. Chip from import. Environmental friendly materials. High quality.

Dimensions:

90mm(L)*27mm(W)*28mm(H)

Color: Black, White, Customized

Application

·POS terminal ·ID verification

·Banking system ·Time and attendance terminals

·Etc

Specification

Card standard: magstripe card ISO 7810/7811/7812/7813, 1-2-3 tracks

Read ABA/ANSI/ISO/AAMVA standard cards plus some customized formats

Decoding Method: F2F (FM)

USB powered

Bi-direction reading capacity

Lifetime of Magnetic Head: >1,000,000 card passes (1 pass: one swipe)

Read magnetic stripe from 300oe up to 4000 oe high Co.

Magnetic head use platinum and manganese alloy material. high quality.

Compatible with windows, linux and mac OS terminals.

Materials: eco, RoHS certified

Output: RS232, USB, PS/2, TTL, TTL232 selectable

Reading Density: 210BPI, 75BPI, 210BPI

Character: Track 1: 79 characters (7-bit); Track 2: 40 characters (5-bit); Track 3: 107 characters (5-bit).

Power supply: DC2.7V~DC5.5V

Power current: below 2.0mA( single road) below 5mA(double roads) below 7mA( three magnetic road)

Static Current: 4mA/5V

Output Ripple: Less than 50mVp-p.

Head function reading magnetic road width 1.5mm

Reading Speed: 15-120 cm/sec (6-50inch/sec)

Error rate < 0.5%

Insulation: 10m O

Core earth 500V, 10M or more (between floor and object)

Operation Locus Indoors only

Weight: Approx.190g

Working Temperature: 0-50 degrees 20- 90% RH

Store Temperature: -30 to 70degrees. less than 95% RH

Vibration: Amplitude 2mm, 2G, 10-55Hz/min in x, y, z direction.

Shock resistance: Up to 30G, 11 m/ sec.
