Specifications

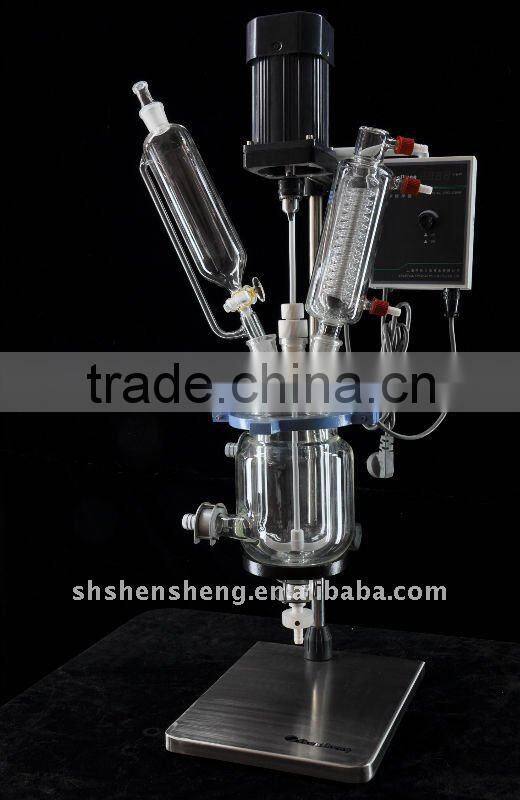

Biodiesel Reactor, instrument for pharmacy & chemistry, perform synthesis, distill, separation & reflux in airproofDescription:
Biodiesel Reactor is an ideal instrument for pharmacy, biology, fine chemistry and material synthesis. With menstruum in inlayer and heating or cooling source in interlayer, jacket glass reactor can perform synthesis, distillation, separation and reflux under airproof condition.
Features:
1. AC Induction Motor with Stepless speed regulation, no dynamo brush, spark-free;
2. G3.3 Pyrex Glass (Borosilicate) with good physical and chemical properties;
3. Efficient Vertical Condenser (0.16 sqm condensing area);
4. Stainless Steel Connector, easy to unload for discharge and clean;
5. PTFE Five-mouth Airproof Rector Lid for diversified needs of reaction;
6. Special designed PTFE propel valve with stainless steel fastener (Easy to unload and resist to erosion);
7. No dead angle at the bottom;
8. Epoxy Painting for Anti-Erosion Structure is optional.
Technical Information:
| Model | JR - S2 |
| Volume(L) | 2L |
| Glassware Material | Borosilicate (Pyrex: G3.3) |
| Frame Material | SUS304 |
| Diameter of Vessel Lid (mm) | 150 mm |
| Mouth Amount of Vessel Lid | 5 |
| Stirring Power (w) | 40 w |
| Speed Adjustment | Electronic Stepless |
| Rotary Speed (rpm) | 50 ~ 1200 |
| Reaction Temperature Range (°C) | -80 ~180°C |
| Thermometer Type | Thermometer |
| Seal Type | O-Ring |
| Reachable Vacuum Level (Mpa) | 0.098MPa |
| Stirring Head Type | Arc |
| Material Of Stirring Bar | Stainless Steel & PTFE Sleeve |
| Condenser Type & Area (sqm) | Vertical (0.16) |
| Continuous Charge Funnel | Yes |
| Discharge Valve | PTFE Propel (Teflon) |
| Discharger Position | Top |
| Dimensions (cm) | 30*35*80 |
| Power | 220V/5A |
| Extra Component (Optional) | Epoxy Painting |
Parameter of Glassware:
Linear Expansivity Thermal Shock Resistance (°C) Highest Temperature (°C) Continuous Use (°C)
Borosilicate (Pyrex: G3.3)
Chemical Composition (Weight%)
SiO2
80.7
B2O5
12.8
Al2O3
2.2
CaO
<0.6
K2O
Na2O 4.0
Parameters
a≤32*10^(-7)
270
Softening (°C)
820
Anneal (°C)
565
510
Picture:
For details, please contact us. Based on your needs, we will customize Jacket Glass Reactor, equipped with vacuum pump, heating system, cooling system, and control system.
