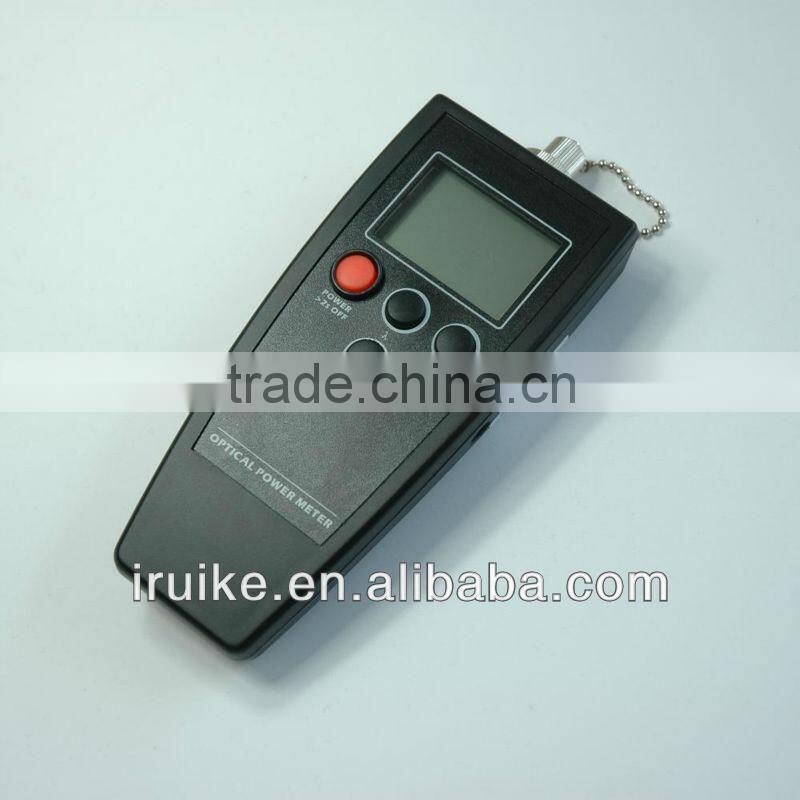

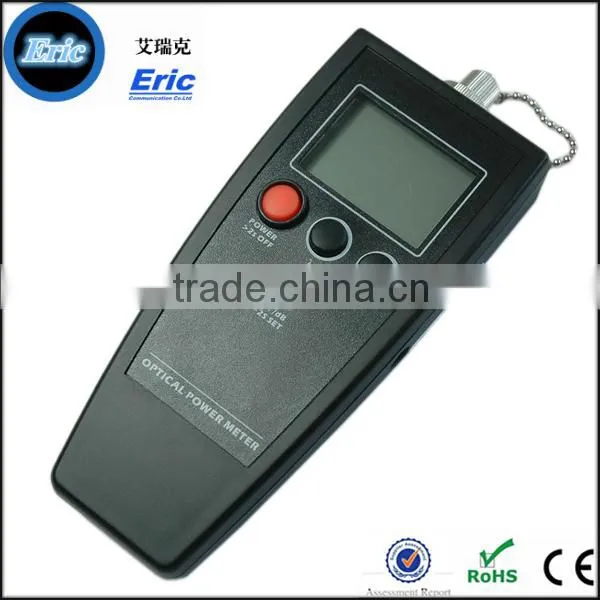

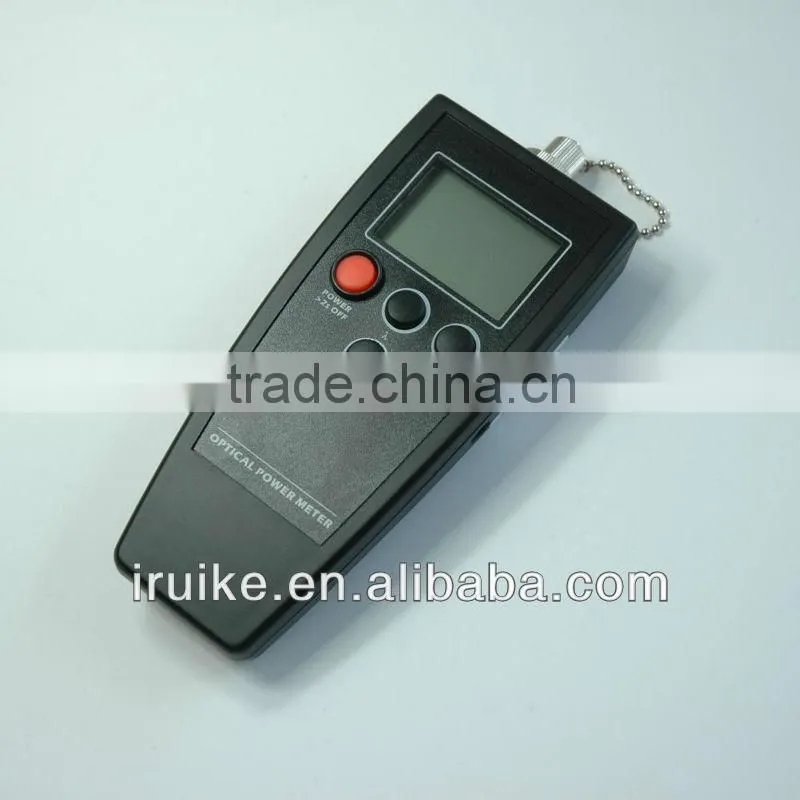

Handheld Optical Power Meter Fiber Power Meter
Specifications
1.handheld optical power meter2.APM820: +8 ~ -70 dBm,
3.APM830: +26 ~ -50 dBm,
4.reference value set.
Handheld Optical Power Meter Fiber Power Meter
Descriptin
1.Can provide the reference for laser source and variable attenuator;
2.Can test the loss of the fiber;
3.Users can replace the adaptor from FC to SC or ST;
4.850nm, 1300nm, 1310nm, 1490nm, 1550nm test point;
5.APM820 is for telecom test, APM830 is for CCTV test;
6.Energy save mode: About 10 minutes no operation will cause the device auto power off (can be cancelled);
7.Reference value set for each wave;
8.Full energy can support above 100 hours operation
| Main Characteristic: | ||
| APM820 | APM830 | |
| Measuring Range | +10 ~ -70dBm | +26 ~ -50dBm |
| Wavelength Range | 750nm - 1700nm | |
| Accuracy * | 0.01dB ± 2% | |
| Calibrated Wavelengths | 850nm / 1300nm / 1310nm / 1490nm / 1550nm | |
| Display Resolving Power | 0.01dB | |
| Connecting Adaptor | FC/PC, ST, SC | |
| Reference Value Set | Yes | |
| Auto Power Off | About 10 minutes (can be cancelled) | |
| Battery Charge | Yes | |
| Operate Time | Above 100 hours | |
| Storage Temperature | 50 | |
| Operating Temperature | 50 | |
| Relative Humidity | < 95% | |
| Power Supply | AA * 2 | |
| Size | 140mm * 62mm * 31mm | |
| Weight | About 180g | |
| * at 1550nm, 20± 3, CW, with FC adaptor | ||
