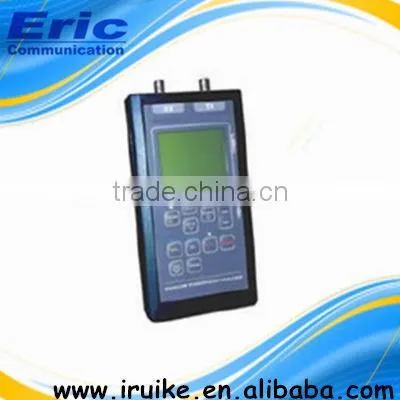

E1 BER Tester DEB100E

Name: E1 BER Tester DEB100E
Brand: Eric
SKU: 127577489
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Eric

Model Number:

DEB100E

Hangzhou Eric Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/shenzhen/ESCROW

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Eric

Model Number DEB100E

Specifications

1.E1 BER Tester
2.2Mb/s, N*64Kb/s test;
3.Frame pattern select
4.Code pattern select
5.Alarm insertion and check

E1 BER Tester

Feature

1.For E1 line maintenance and test;

2.Out of service / in-service test;

3.Framed and unframed test;

4. 2Mb/s, N*64Kb/s test;

5. Frame pattern select;

6.Code pattern select;

7.Alarm insertion and check;

8. Error bit insertion and check;

9.Large space for data storage;

10.One time slot monitored;

11. Real-time clock;

12. Results analysis conforms to the

ITU-T G.821, G.826 and M.2100;

Main Characteristic

	DEB100E
Bit Rate	2084Kb/s ± 50ppm
Connector	Standard: 75 ohm unbalanced, high resistance input impedance,
Connector	Optional: 120 ohm balanced
Input Sensitivity	0 ~ - 43dB
Circuitry Code	HDB3
Frame Type	Framed N*64Kbps / unframed
Frame Pattern	PCM30, PCM30CRC, PCM31, PCM31CRC
Test Pattern	Random pseudo code: 2^15-1, 2^11-1
Test Pattern	Fixed code: 1111, 0000, 1010
Alarm Insertion And Check	LOS, LOF, AIS, RA
Error Code Insertion	Single, 10E-3, 10E-6
Result Analysis	G.821, G.826 and M.2100
Storage	99 results
Data Transfer	Option: RS232 to PC
Operating Temperature	-10 -- +50 °C, < 90%RH
Storage Temperature	-20 -- +60 °C, < 90%RH
Power Supply	AA * 4 rechargeable batteries or AC/DC adaptor
Size	200mm(L) * 100mm(W) * 44mm(H)
Weight	About 440g
