high quality agriculture use ce certificated engine

Name: high quality agriculture use ce certificated engine
Brand: AODISEN
Availability: InStock

FOB Price

USD $34.2 - $35.2 / Set

600 Sets(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Ningbo / Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Boat, Sprayer, Generator, Water Pump
Fuel	Gasoline	Stroke	4 Stroke
Cylinder	Single Cylinder	Cold Style	Other, Air-cooled
Start	Other, Kich Start & Electric Start	Place of Origin	Zhejiang, China
Brand Name	AODISEN	Model Number	ADS160
Dimension(LWH)	370x330x250mm	Weight	13kgs
Certification	ISO9001:2008	Warranty	1 year
After-sales Service Provided	No overseas service provided

Product Description

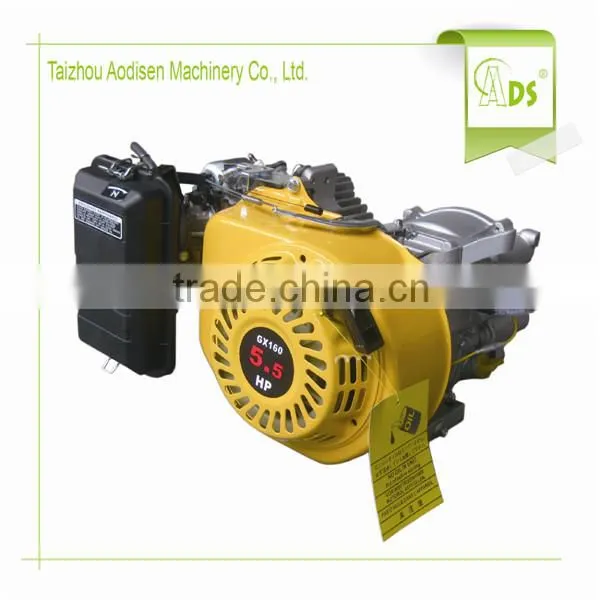

high quality agriculture use ce certificated engine

Item no: Ads 160

1:Large fuel tank capacity

2:High quality power output

3:Qualified mechanical seal device

Product Description

Technical Data & Parameter for

ce certificated engine :

Model	ADS160	ADS200	ADS390
Description	General Purpose Mini Small Petrol Engine	General Purpose Mini Small Petrol Engine	General Purpose Mini Small Petrol Engine
Engine Type	25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling	25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling	25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling
Cylinder Dia. × Stroke	68 ×45mm	68mm × 54mm	88mm ×64mm
Displacement	163ml	196ml	389ml
Compression Ratio	8.5:1	8.5:1	8.0:1
Max Power Output	5.5hp	6.5hp	13hp
Rated Power Output	4.85hp	5.8hp	11.7hp
Max. Torque	10.8N.M / 2500rpm	13.2N.M / 2500rpm	26.5N.M / 2500rpm
Ignition Mode	Non-Contact Transistor Magneto	Non-Contact Transistor Magneto	Non-Contact Transistor Magneto
Starting Mode Options	Recoil / Electric	Recoil / Electric	Recoil / Electric
Engine Oil Capacity	0.6L	0.6L	1.1L
Fuel Capacity	3.6L	3.6L	6.5L
Recommended Fuel	unleaded gasoline	unleaded gasoline	unleaded gasoline
Recommended engine oil	SAE 10W-30	SAE 10W-30	SAE 10W-30
Fuel Consumption Rate	360g / kw.h	360g / kw.h	325g / kw.h
Carburetor Type	Float Carburetor	Float Carburetor	Float Carburetor
Fuel Suppling Mode	Gravity Feed	Gravity Feed	Gravity Feed
Lubrication Mode	Splashing	Splashing	Splashing
Power Output Form	crank shaft 1:1	crank shaft 1:1	crank shaft 1:1
Output End of Crank Shaft	Metric Thread / British Thread / Keyslot	Metric Thread / British Thread / Keyslot	Metric Thread / British Thread / Keyslot
Crank Shaft Rotation Direction	Clockwise (view from flywheel)	Clockwise (view from flywheel)	Clockwise (view from flywheel)
Air Filter Type	Semi-Dry / Oil Bath / Semi-Dry+Oil Bath	Semi-Dry / Oil Bath / Semi-Dry+Oil Bath	Semi-Dry / Oil Bath / Semi-Dry+Oil Bath
Dimension	370x330x250 mm	370x330x250 mm	465x410x325 mm
N.W./G.W.	13kgs / 14kgs	13kgs / 14kgs	29kgs / 30kgs

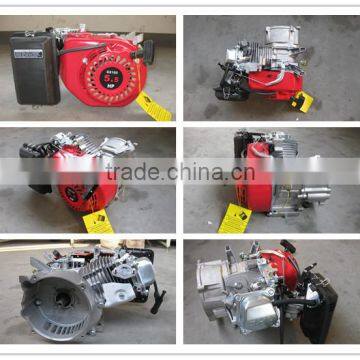

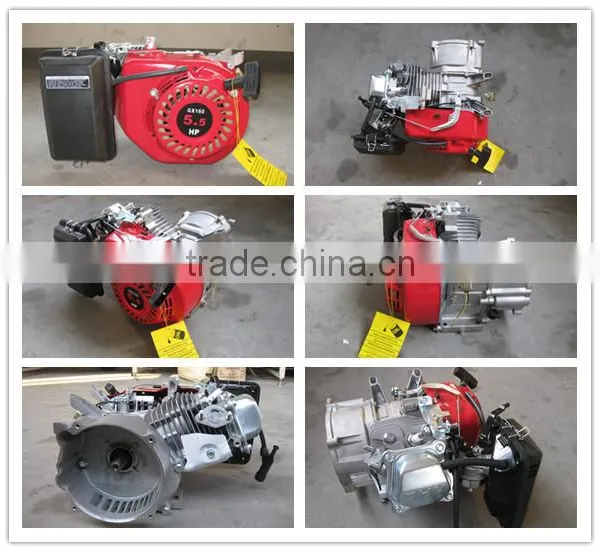

Real Shot For

ce certificated engine :

Packaging & Shipping

Company Information

Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.

With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.

We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.

We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.

Production Line

Sample Room

Stock

Our Factory

Container Loading

Meeting with our customers

Our Services

Aodisen offer 18moths after-sales service, If the problem is caused by our technology, we will be responsible for that, even we can send the replacement to your or send our engineer to your country if it is serious. If need and your quantity is large enough, we can send engineer to your country to help you with installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 5days at most after receiving your request, OEM is available.

FAQ

Q1: Are You Manufacturer or Trade Company ?

A: We are Manufacturer

Q1: What is Your MOQ ?

A: Engines: 100sets; Generator: 50sets; Water Pump: 100sets ;

Q2. What Is Your Price Terms?

A: EXW, FOB, CNF and CIF are available.

Q3. What Is Your Payment Terms?

A: T/T, L/C, Weston Union

Q4. What Is Your Delivery Time?

A: Usually 20 Working Days After Receiving Deposit

Q5. What Warranty Could You Provide?

A: Half and One Year Warranty for Free Spare Parts. And We Could Send Engineer To Your Side.
