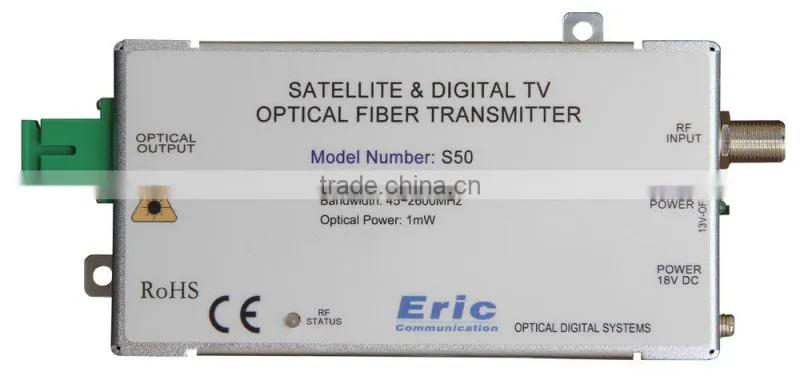

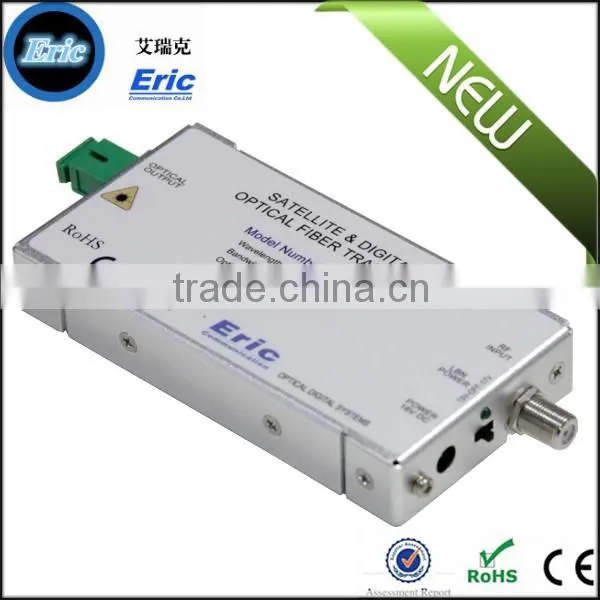

Satellite Optical Fiber Transmitter and Receiver
Features and Benefits:
The Model S30/S50 and S60/S60D optic fiber L-Band satellite transport system provides an economical solution for
transporting digital signals for numerous satellite distribution applications, including head-end relocation, and distribution of digital broadcast systems (DBS). The system utilizes a cost-effective coax cabling configuration to distribute the RF signals
From the dish to the transmitter and from the receiver to the head-end. The single-mode optical fiber between the S30/S50 and S60/S60D transmitter and receiver allows transmission distances to 8 km at 1310nm or15Km at 1550nm. Furthermore, using LNB power from the transmitter decreases the need for additional equipment at thedish site. RF alarm and indicator LEDs allow for a quick assessment of the link’s operational status. The Model S30/S50 and S60/S60D L-Band transport system,
whether used in an antenna remoting application or in a satellite distribution role, provides for transmission of the entire DBS spectrum in a simplified, flexible installation environment at one of the lowest costs found in today’s market.
Performance Characteristics:
1. Transmitter and Receiver transports the full L-Band spectrum(45~2600MHz) as a standard feature.
2. LNB power uses current limiting technology. The unit resets itself, eliminating down time due to blown fuses.
3. 75 Ohm models are packaged in a rugged stand-alone enclosure.
4. Side panel LNB switch toggles the unit between +13V, Off and +17V.
Technical Parameter :
Item |
Unit |
Technical Parameter |
|
Optical Parameters | |||
Laser Wavelength |
nm |
1310/1550 |
|
Laser Output Power |
dBm |
0 ~ +6 |
|
RX Optical Input Power |
dBm |
-13 ~ +1 |
|
TX Input RF Return Loss |
dB |
13 |
|
Frequency |
MHz |
45~2600 |
|
RX RF Output Return Loss |
dB |
20 |
|
System Gain (0dB Opt. Loss) |
dB |
18 ~ 22 |
|
System Gain variation over temp |
dB |
-2 ~ 2 |
|
Amp.Flatness (45-2600 MHz) |
dB |
+/.1 ~ +/.15 |
|
Group Delay (45-2600 MHz) |
ns |
0.5 ~ 1 |
|
Noise Figure (0dB opt. loss) |
dB |
22 ~ 24 |
|
Noise Figure (9dB opt. loss) |
dB |
31 ~ 35 |
|
TX RF Input Range |
dBm |
-60 ~ -15 |
|
Input RF Compression Point |
dBm |
-8 |
|
Output RF Compression Point |
dBm |
+11 |
|
Intermodulation Distortion |
dBc |
-50 ~ -40 |
|
Electrical Characteristics | |||
Supply Voltage |
VDC |
+12~+18 |
|
Supply Current (TX, No LNB) |
mA |
250 |
|
Supply Current (RX) |
mA |
170 |
|
Max LNB Current Draw |
mA |
0 ~ 350 |
|
Physical Characteristics | |||
Weight |
g |
130 |
|
Dimensions |
mm |
123*64*20 |
|
Environmental Characteristics | |||
Operating Temp. Range |
°C |
-40 ~ +60 |
|
Storage Temp. Range |
°C |
-40 ~ +60 |
|
Humidity (RH, non-condensing) |
% |
5 ~ 95 |
|
Ordering Information:
TX:S30-Laser wavelength 1310nm,
output power 0~6dBm optional, SC/APC
TX:S50-Laser wavelength 1550nm,
output power 0~6dBm optional, SC/APC
RX:S60-Input wavelength 1260~1620nm
RX:S60D-Input wavelength 1310/1490/1550nm
Working wavelength 1550nm
Pass wavelength 1310/1490nm
