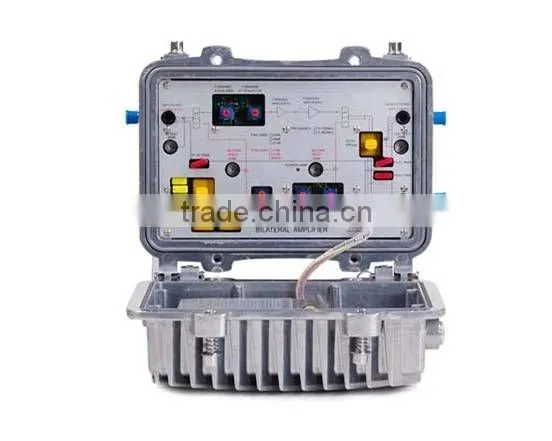

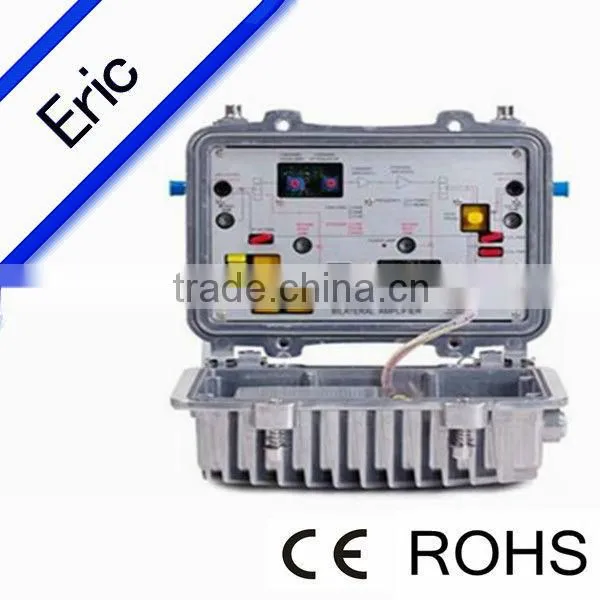

Outdoor CATV Signal Bi-directional Amplifier

Outdoor CATV Signal Bi-directional Amplifier thumbnail-1
Outdoor CATV Signal Bi-directional Amplifier photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ERIC
Model Number:
EHA830C
Contact Supplier Request Quote Chat Now
Hangzhou Eric Communication Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO/SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ERIC
Model Number EHA830C

Specifications

1.CATV Bidirectional Amplifier
2.Observe&Reserve path adopt RF module
3.Bandwidth:47~860MHz/50~65MHz
4.Agree ODM for customer

Outdoor CATV Signal Bi-directional Amplifier



1.0 Products Description

EHA830C Series outdoor bi-directional amplifier is designed for application in the last 1km in CATV bi-directional transmission. Forward path adopt specialty RF module with good index, low power consumption and high performance cost ratio.



2.0 Downlink

Frequency Range

MHz

47/84-860

Nominal Gain



30

Band-in Flatness

dB

±0.75

Nominal Input Level

dBµV

172

Nominal Output Level

dBµV

102

Noise Figure

dB

≤8

C/CTB

dB

≥58

C/CSO

dB

≥56

Return Loss

dB

≥16



3.0 Uplink

Frequency Range

MHz

5-30/65

Band-in Flatness

dB

≤±0.75

Return Loss

dB

≥16

Max. Output Level

dBµV

≥110

CTB

dB

≥52

Signal AC Ratio

dB

less than 2



4.0 General performance

Impedance

Ω

75

Ability of anti-lightning

KV

5(10/700µS)

Power voltage(50Hz)

V

Switch power: A(150-260)V,(30-60)V

Power consumption

W

15





5.0 Functional Block Diagram

Outdoor CATV Signal Bi-directional Amplifier

Outdoor CATV Signal Bi-directional Amplifier
