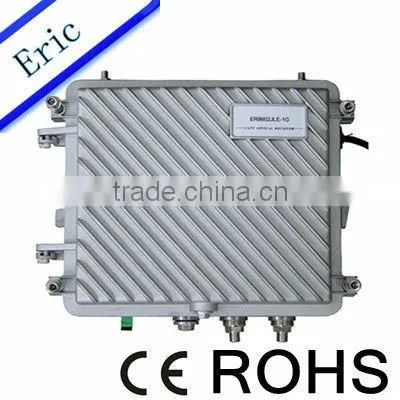

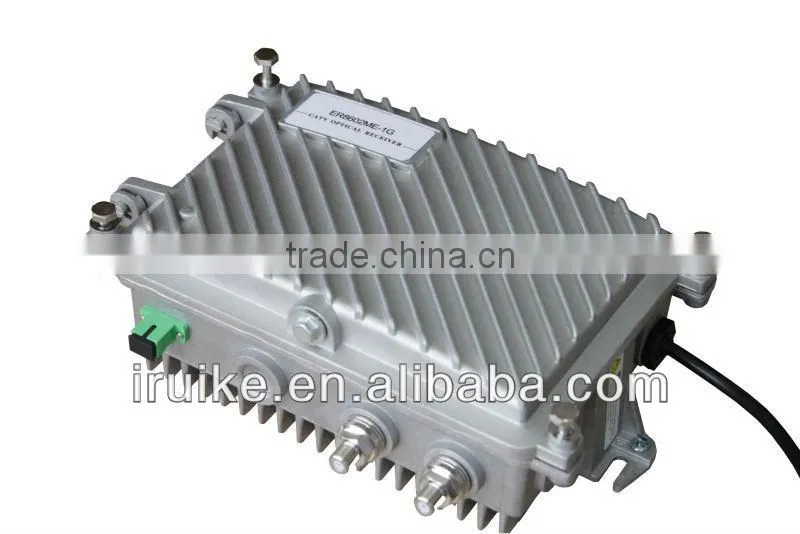

ER8602JLE Fiber Optic CATV FTTB Optical Node
Description :
ER8602JLE Optical receiver is our new high quality 2 output ports products that especially used in CATV network.
The preamp adopts GaAs MMIC amplify module and the postamp adopts GaAs module amplifier.With optimization design and plentiful technical experience that made this equipment with high performance specification. Debugging of project is easy because of MCU-Controlled display.It is a ideal model for CATV network.
Performance Characteristics
n High responsible, with PIN photoelectric converter.
n 1000MHz bandwidth design
n Optimization and typical circuit design, the pre adopts SMT process and the post adopts module amplify that made the photoelectronic signal transmission fluency.
n Professional RF attenuation chip whose attenuation and equalization has good linearity, high precision.
n GaAs amplifier parts,power doubler output, high gain and low distortion.
n Overall machine is controlled by Single Chip Micyoco,and digital display is adopted to show parameters.So it is easy to operate, and performance is stable.
n With AGC, when the input optical power range is -7~+2dBm, the output lever, CTB and CSO are keep constantly.
n Class II network management transponders can be connected to it.
Item | Unit | Technical Parameter | ||
Optical Parameter | ||||
Receive Optical Power | dBm | -9 ~ +2 | ||
Optical Return Loss | dB | >45 | ||
Optical Receive Wavelength | nm | 1100 ~ 1600 | ||
Optical Connector Type | FC/APC,SC/APC or name by customer | |||
Fiber Type | Single | |||
Link Performance | ||||
C/N | dB | ≥ 51(when the input: -2dBm) | ||
C/CTB | dB | ≥ 65 | When output level is 108 dBμV,and equilibration is 6dB | |
C/CSO | dB | ≥ 60 | ||
RF Parameter | ||||
Frequency Range | MHz | 45/54/65 ~862 | 862-1000 | |
Flatness In Band | dB | ±0.75 | ||
Standard Output Level | dBμV | ≥ 108 | ||
Max Output Level | dBμV | ≥ 112 | ||
Output Return Loss | dB | ≥16 | ≥14 | |
Output Impedance | Ω | 75 | ||
Electric-driving Equalizer Range | dB | 0~15 | ||
Electric-driving Attenuator Range | dBμV | 0~20 | ||
Reverse Optical Transmitter | ||||
Optical Parameter | ||||
Optical Launch Wavelength | nm | 1310±10 OR 1550 | ||
Output Optical Power | dBm | 1 ~ 5 | ||
Optical Connector Type | FC/APC,SC/APC or Specified by customer | |||
RF Parameter | ||||
Frequency Range | MHz | 5 ~ 65(or Specified by customer) | ||
Flatness In Band | dB | ±1 | ||
Input Level | dBμV | 85 ~ 90 | ||
Output Impedance | Ω | 75 | ||
General Performance | ||||
Power Voltage | V | A:AC(150~265)V;B:AC(35~90)V | ||
Operating Temperature | ° C | -40~60 | ||
Storage Temperature | ° C | -40~65 | ||
Relative Humidity | % | Max 95% No Condensation | ||
Consumption | VA | ≤ 30 | ||
Dimension | mm | 260(L)* 240(W)* 100(H) |

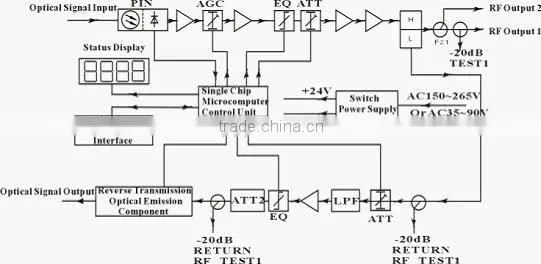

Ⅲ. Block Diagram

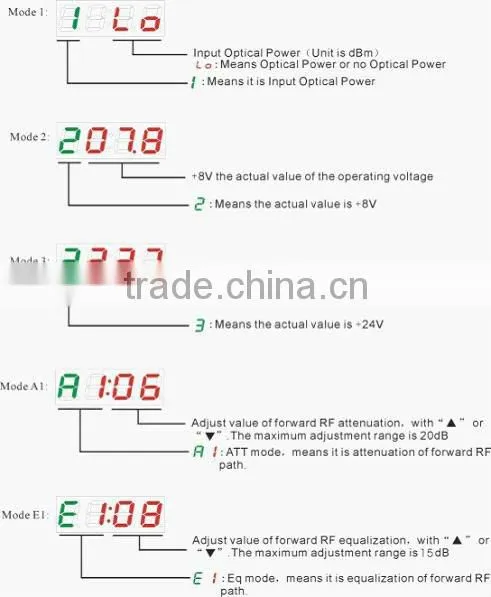

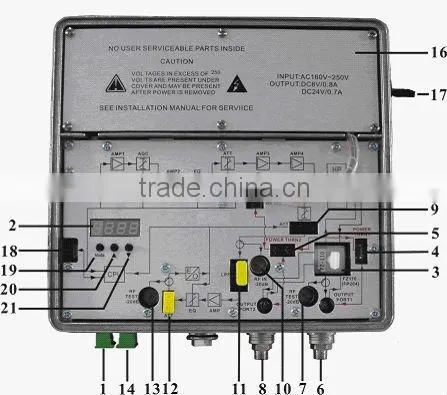

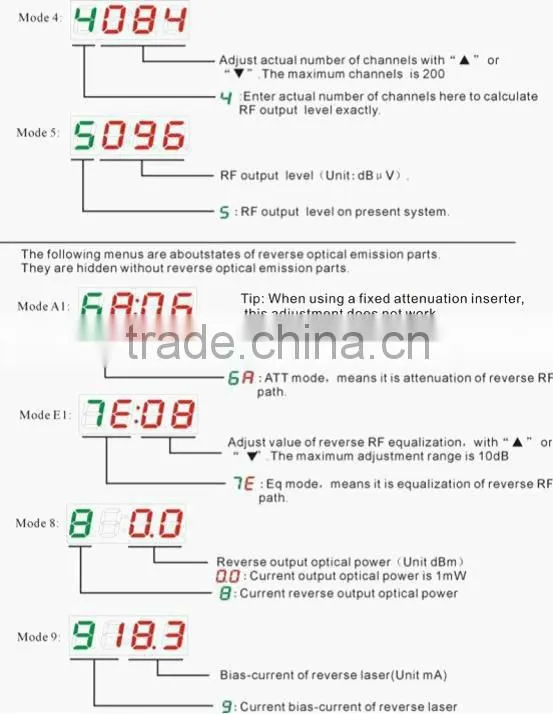

Function Display and Operating Instruction
Mode: Nine operating modes at all.
: is up.Increase value of attenuation and equalization when in ATT or EQ mode.is down.Decrease value of attenuation and equalization when in ATT or EQ mode.
Description:
Note:1.Network Management Responder can be connected with Network Management System.Add :Network Management Responder or not,it is up to users.
2.Picture of upgraded products may be different.

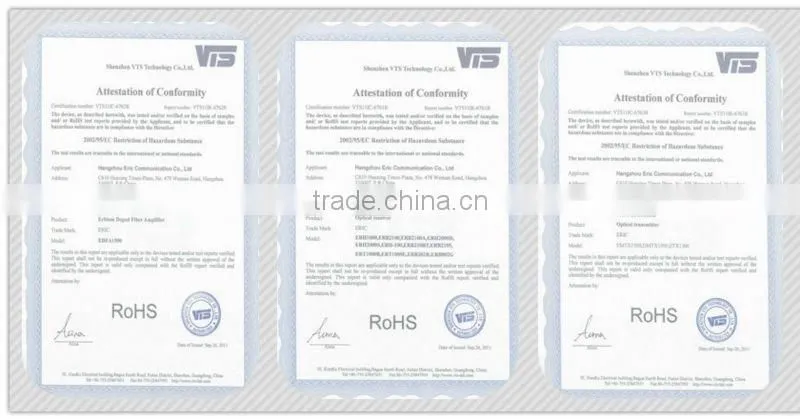

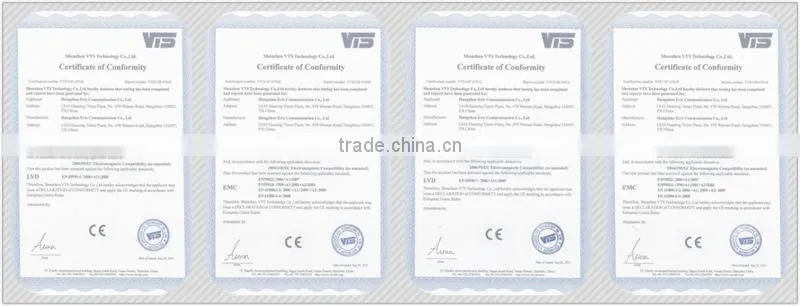

Certificates
