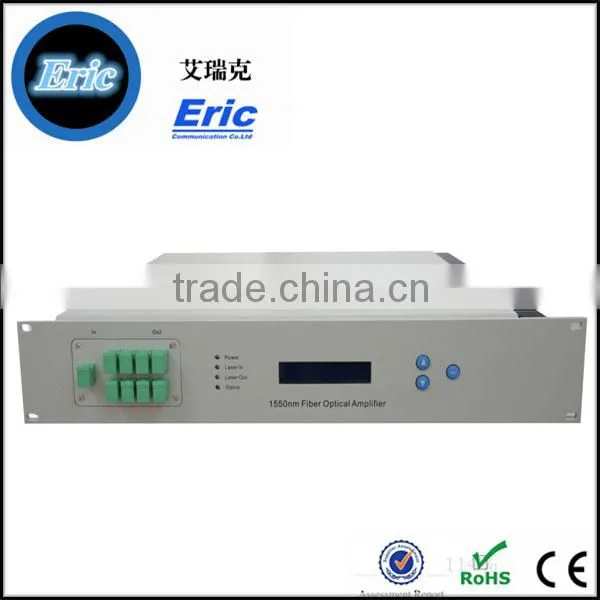

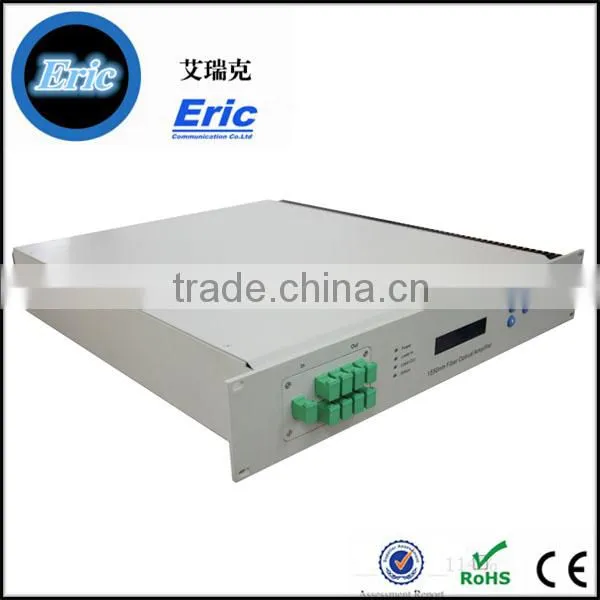

1550nm Best Selling Digital Video High Power Amplifier
Product description
EDFA1500 series is a CATV booster optical amplifier with gain spectrum band within 1530~1560nm. It has low noise figure, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network.
Features
1) Dual mechanic cooler in the housing and inside iron box to protect the laser. Work a long time.

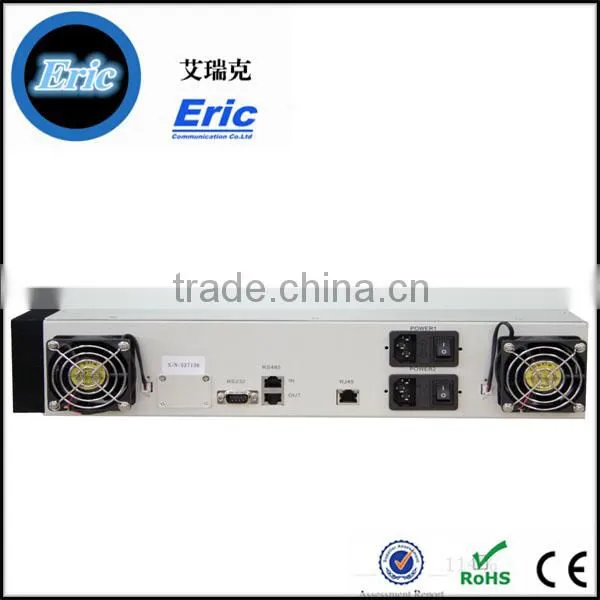

2) RJ45 port for SNMP remote management.
3) RS232 for local management.
4) Adopts JDSU, Fitel and Bookham Pump laser.
5) Good stability, VFD or LED displays the working conditions, good trouble alarm system.
6) Power supply 90V ~ 265V AC or -48V DC for the user’s choice.
7) Max output can reach 27dBm.
Items |
Parameter |
||||||||
1500-14 |
1500-15 |
1500-16 |
1500-17 |
1500-18 |
1500-19 |
1500-20 |
1500-21 |
1500-22~27 |
|
Output (dBm) |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22~27 |
Output (mW) |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160~500 |
Input(dBm) |
-3 ~ 10 |
||||||||
Wavelength(nm) |
1530 ~ 1560 |
||||||||
Output Stability(dB) |
≤0.2 |
||||||||
Polarization Sensitivity |
<0.2 dB |
||||||||
Polarization Dispersion |
<0.5 PS |
||||||||
Optical Return Loss |
≥45 dB |
||||||||
Fiber Connector |
FC/APC or SC/APC |
||||||||
Noise Figure(dB) |
<4.5(0dBm Optical Input) |
||||||||
Network Interface |
RJ45(SNMP) / RS232 / RS486 |
||||||||
Power Consumption |
50 W |
||||||||
Power Supply(V) |
220VAC(110 ~240) or -48VDC |
||||||||
Working Temp(°C) |
-20 ~ +85 |
||||||||
Size(″) |
19″* 15″* 1.75″ |
||||||||
Weight(Kg) |
5.0 |
||||||||
Our Services
1.Any inquiries will be replied within 24hours
2.Professional manufacturer.
3.OEM/ODM avaliable:
1)Silk print logo on the front panel
2)Customized Color box
3)Customized housing
4)Any your idea on our equipments we can help you to design and put it into production
4.High quality, fashion designs, reasonable and competitive price, fast lead time
5.After-sale service:
1)All products will have been strictly quality checked in house before packing
2)All products will be well packed before shipping
3)All our products have 1year warranty.
6.Faster delivery:
Sample order 1~3working days, and 3~7 working days for bulk production
7:Payment:
You can pay fro the order via: T/T,Western Union, Paypal and others, or place order directly on Aliexpress
8.Shipping:
We have strong cooperation with DHL, TNT,UPS,FEDEX,EMS and China Air Post
You also can choose your own shipping forwarder.

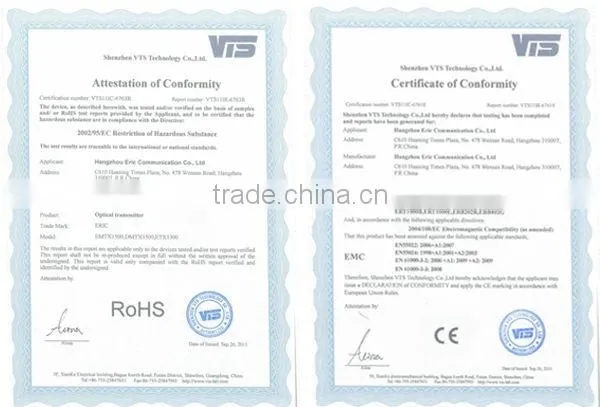

Certificate
