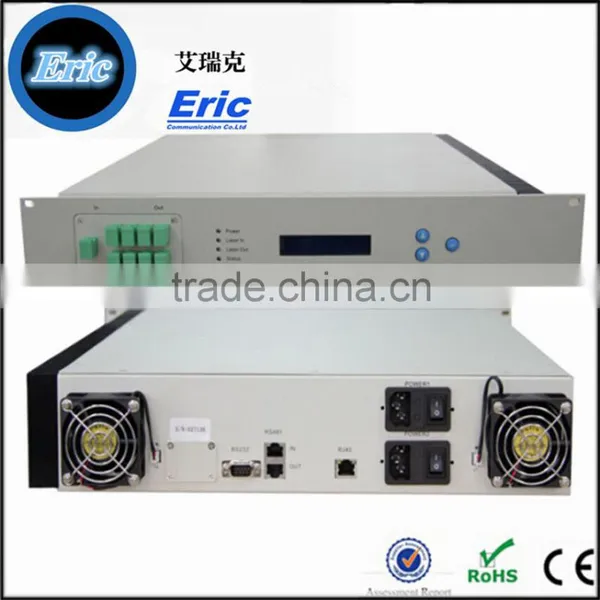

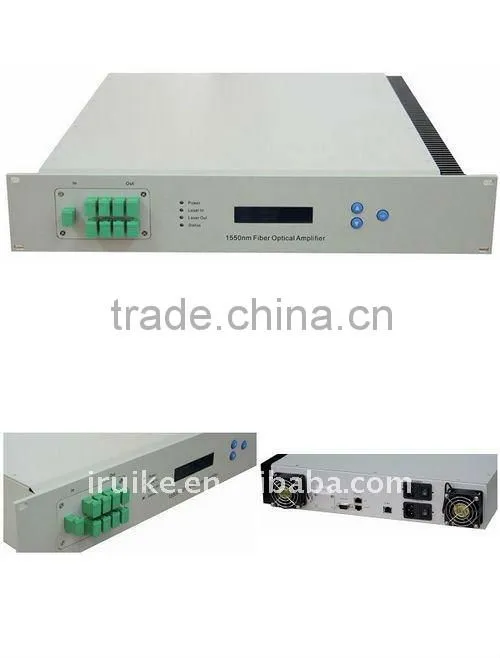

[Eric]1550nm CATV Optical Amplifier /Fiber Optic EDFA
Description
EDFA1500 series is a high-power multi-ports EDFA with gain spectrum band within 1540~1563nm. It is designed for the application of single channel. This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
Features
1.Adopts JDSU, Fitel and Bookham Pump laser;
2.Adopts OFS Erbium-Doped fiber;
3.Double cooling system can protect the pump laser to work in a long time;
4.RJ45 and RS 232 port, SNMP management system;
5.Good stability, VFD displays the working conditions, good trouble alarm system;
6.2U housing, 16 or 32 outputs
Parameters
Model(EDFA1500) |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
Output (dBm) |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
Output (mW) |
500 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
4000 |
Input power (dBm) |
-3~10 |
|||||||||
Output point |
8, 16, 32, 64 |
|||||||||
Wavelength (nm) |
1540~1560 |
|||||||||
Output power stability (dB) |
<±0.2 |
|||||||||
C/N (dB) |
≥45 |
|||||||||
CSO (dB) |
≥63 |
|||||||||
CTB (dB) |
≥63 |
|||||||||
Bias oscillation sensitivity(dB) |
<0.2 |
|||||||||
Bias oscillation dispersio(PS) |
<0.5 |
|||||||||
Optical return loss (dB) |
≥45 |
|||||||||
Fiber connector |
FC/APC,SC/APC |
|||||||||
Noise ratio (dB) |
<5.0(0dBm optical input) |
|||||||||
connector |
RJ45(SNMP) ,RS232 |
|||||||||
Power loss (W) |
≤150 |
|||||||||
Working Voltage (V) |
220V(90~265),DC-48V |
|||||||||
Working Temp (°C) |
-20~85 |
|||||||||
size (mm) |
19"×15"×3.5" |
|||||||||
