17dBm 1550nm CATV Fiber Optical Booster Amplifier EDFA

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shanghai shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	ERIC
Model Number	EDFA1517

Product Description

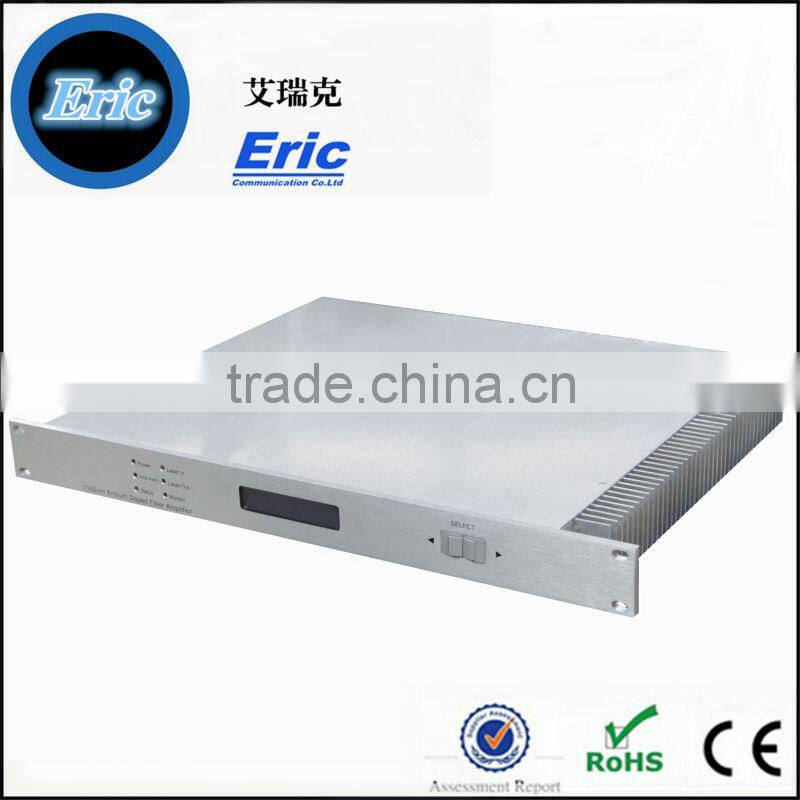

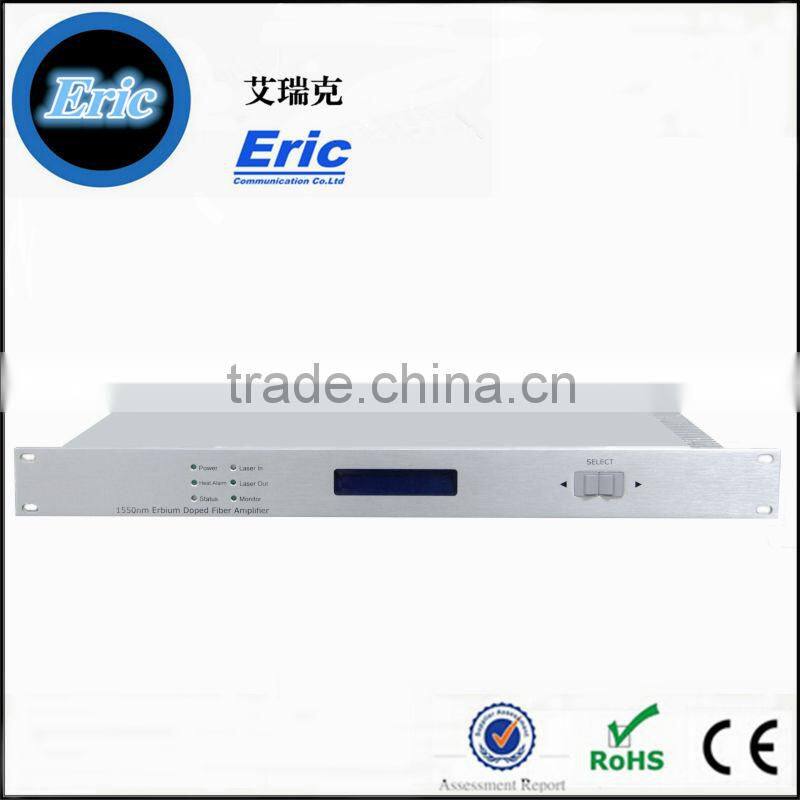

17dBm 1550nm CATV Fiber Optical Booster Amplifier EDFA

Product Description

Product description

EDFA1500 series is a CATV booster optical signal amplifier with gain spectrum band within 1530~1560nm. It has low noise figure, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network.

Features

1) Dual mechanic cooler in the housing and inside iron box to protect the laser. Work a long time.

2) RJ45 port for SNMP remote management.

3) RS232 for local management.

4) Adopts JDSU, Fitel and Bookham Pump laser.

5) Good stability, VFD or LED displays the working conditions, good trouble alarm system.

6) Power supply 90V ~ 265V AC or -48V DC for the user’s choice.

7) Max output can reach 27dBm.

Items	Parameter
Items	1500-14	1500-15	1500-16	1500-17	1500-18	1500-19	1500-20	1500-21	1500-22~27
Output (dBm)	14	15	16	17	18	19	20	21	22~27
Output (mW)	25	32	40	50	63	80	100	125	160~500
Input(dBm)	-3 ~ 10
Wavelength(nm)	1530 ~ 1560
Output Stability(dB)	≤0.2
Polarization Sensitivity	≤0.2 dB
Polarization Dispersion	≤0.5 PS
Optical Return Loss	≥45 dB
Fiber Connector	FC/APC or SC/APC
Noise Figure(dB)	≤4.5(0dBm Optical Input)
Network Interface	RJ45(SNMP) / RS232 / RS486
Power Consumption	50 W
Power Supply(V)	220VAC(110 ~240) or -48VDC
Working Temp(°C)	-20 ~ +85
Size(″)	19″* 15″* 1.75″
Weight(Kg)	5.0
