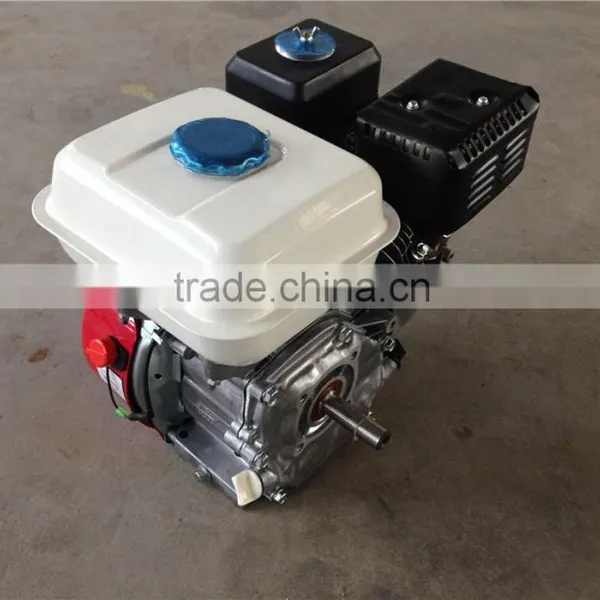

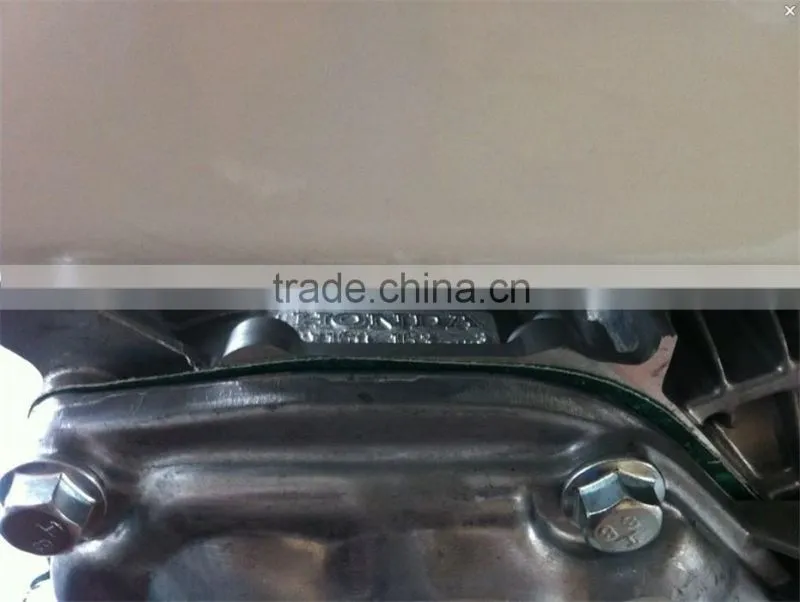

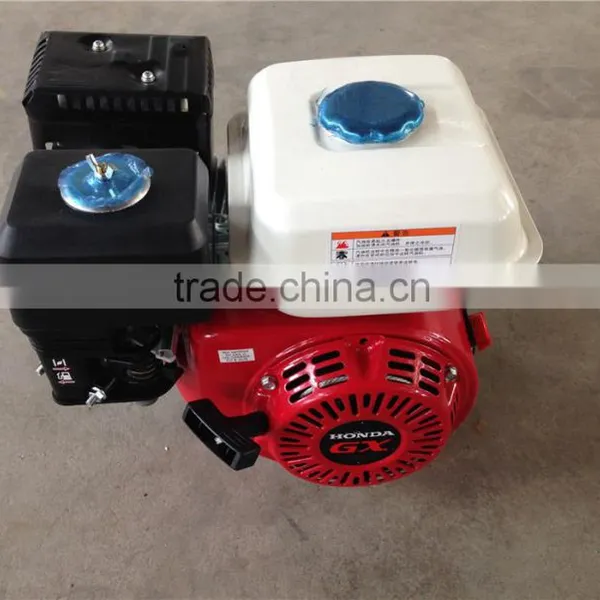

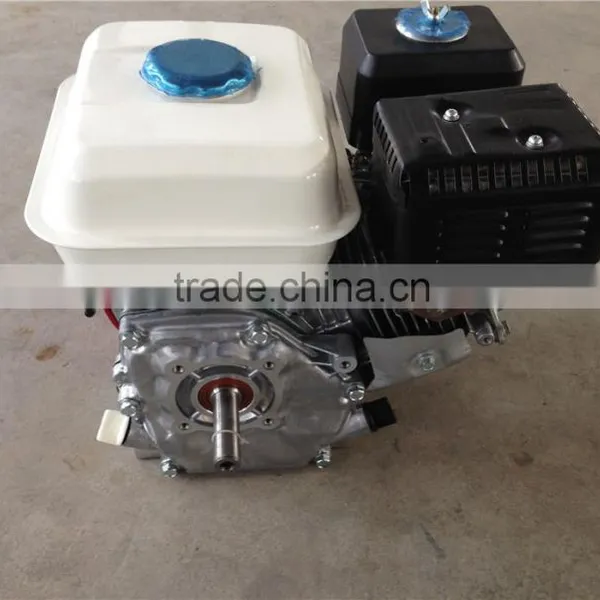

Honda Gasoline Engine 5.5HP

US$ 45 - 80 MOQ: 50 Sets

Key Specifications

Condition:

New

Usage:

Other, AGRICULTURE

Fuel:

Gasoline

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, AGRICULTURE

Fuel Gasoline

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Kick Start

Place of Origin Jiangsu, China

Brand Name OEM

Model Number GX160

Dimension(L*W*H) 400*325*340mm

Weight 16KGS

Certification CE,EPA,CARB

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Model	GX160	GX200	GX390
Engine Type	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV
Bore x Stroke	68 X 45 mm	68 X 54 mm	88 X 64 mm
Displacement	163 cm3	196 cm3	389 cm3
Net Power Output*	4.8 HP (3.6 kW) @ 3,600 rpm	5.5 HP (4.1 kW) @ 3,600 rpm	11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque	7.6 lb-ft (10.3 Nm) @ 2,500 rpm	9.1 lb-ft (12.4 Nm) @ 2,500 rpm	19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)
Compression Ratio	9.0 : 1	8.5:1	8.2:1
Lamp/Charge coil options	25W, 50W / 1A, 3A, 7A	25W, 50W / 1A, 3A, 7A	25W, 50W / 1A, 3A, 10A, 18A
Carburetor	Butterfly	Butterfly	Butterfly Float Type
Ignition System	Transistorized magneto	Transistorized magneto	Digital CDI with variable timing
Starting System	Recoil Starter	Recoil Starter	Recoil/electric
Lubrication System	Splash	Splash	Splash
Governor System	Centrifugal Mechanical	Mechanical	Centrifugal Mass Type
Air cleaner	Dual Element	Dual element	Dual element
Oil Capacity	0.61 US qt. (0.58 L)	0.63 US qt (0.6l)	1.16 US qt (1.1 L)
Fuel Tank Capacity	3.3 U.S. qts (3.1 liters)	3.3 U.S. qts (3.1 liters)	6.4 U.S. qts (6.1 liters)
Fuel	Unleaded 86 octane or higher	Unleaded 86 octane or higher	Unleaded 86 octane or higher
Dry Weight	33 lbs. (15.1 kg)	35 lbs. (16.1 kg)	69 lb (31.5 kg)
