CATV FTTH AGC Fiber Optical Receiver/fiber Optic Product

CATV FTTH AGC Fiber Optical Receiver/fiber Optic Product thumbnail-1
CATV FTTH AGC Fiber Optical Receiver/fiber Optic Product photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Eric
Model Number:
ERH1085
Contact Supplier Request Quote Chat Now
Hangzhou Eric Communication Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/shenzhen/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Eric
Model Number ERH1085

CATV FTTH AGC Optical receiver



Description

ERH1000 Series product is designed for FTTH/FTTB or HFC applications. The general type ERH1085 has a normal output level 85dBuV per-channel for TV. The enhanced type ERH1095 provide higher level, 95dBuV with -7dBm input power and 3.5% optical modulation index.







Feature

1.CATV FTTH AGC Node Optical receiver
2.-8~+1dBm input
3.Output level 20dB adjustable
4.Used in PON system
5.CE and RoHS





Parameter

Downstream signal path

General

Light Wavelength

1260 ~ 1620nm

Power Consumption

3.2W

Optical Input Power Range

-8~ +1dBm

Voltage

12V DC

Frequency Range

45MHz ~ 1GHz

RF Connector(s)

F Female

Output Level

85 ~ 100dBuV(20dB adj.)

Optical Connector(s)

SC/APC

Flatness

±0.5dB

Dimensions(L×W×H)(mm)

100×80×28

Slope

0dB

Weight

0.2kg

Return Loss

16dB

Operating Temp

-20 ~ 65°C

Noise Figure

51dB

ESD(RF) Port

2KV

CTB 59channels

≥60dB



CSO 59channels

≥58dB

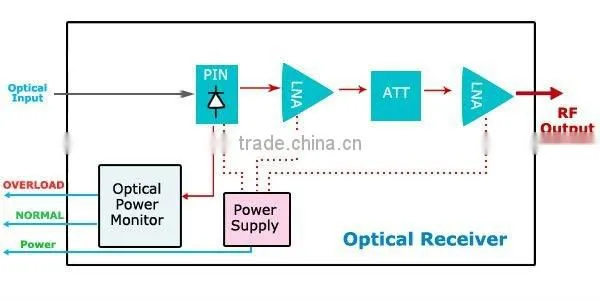

Diagram

CATV FTTH AGC fiber Optical receiver/fiber optic product

CATV FTTH AGC fiber Optical receiver/fiber optic product



CATV FTTH AGC fiber Optical receiver/fiber optic product

CATV FTTH AGC fiber Optical receiver/fiber optic product

CATV FTTH AGC fiber Optical receiver/fiber optic product

CATV FTTH AGC fiber Optical receiver/fiber optic product

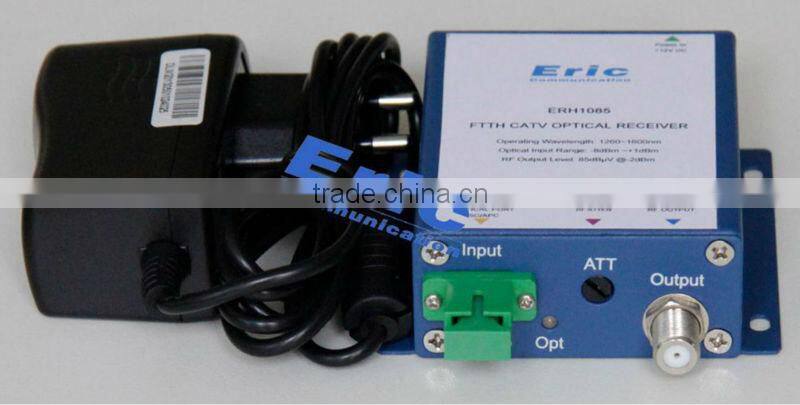

Power adaptor
CATV FTTH AGC fiber Optical receiver/fiber optic product

Contact us



We highly appreciate your any enquiry by email, or instant message ,



We will reply your email within 12 hours .



please feel free to call us at any time if  there is any questions.



 Transportation



All available shipping ways could be applied. by express,air .



Appointed shipping company or our own forwarders all could be used in shipment.



Full-way tracking the items for you before the goods arrive .



CATV FTTH AGC fiber Optical receiver/fiber optic product



Certificates



CATV FTTH AGC fiber Optical receiver/fiber optic product
