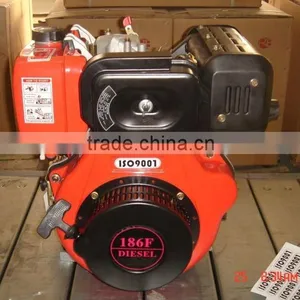

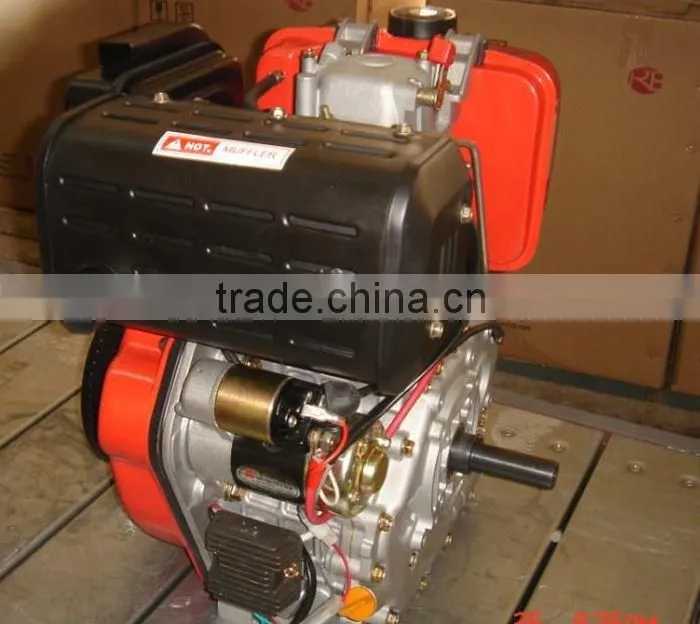

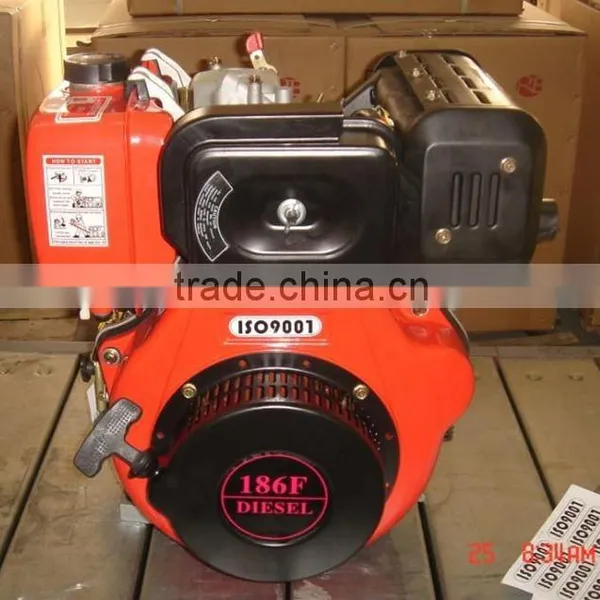

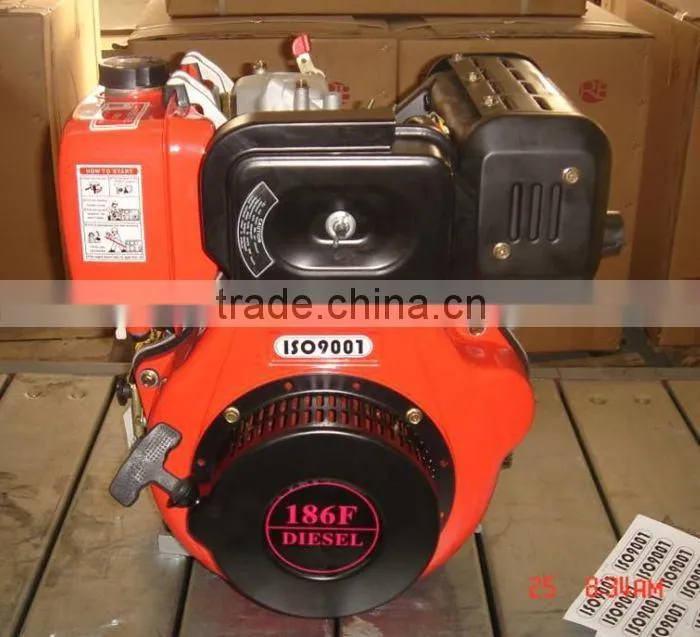

Small Kama Diesel Engine 186F, Kama Diesel Engine, Diesel Engine 10hp, 186F Diesel Engine

US$ 90 - 250 MOQ: 10 Pieces

Key Specifications

Usage:

Other, agricultural

Fuel:

Diesel

Stroke:

4 Stroke

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Usage Other, agricultural

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, mannual/electric start

Place of Origin Jiangsu, China

Brand Name FSH

Model Number FSH186F

1.kama diesel engine
2.miniature diesel engine
3.kama diesel engine 186f
4.kama 170f,178f,186f,188f engine model
5.hot sale

Kama diesel engine,170f,178f,186f,188f,4.0hp to 10.0hp is mainly uesd in agericulture water pump,generator set,agriculture tiller,small bost and etc.

Features:

1. Easy to operate and high safty,Electric start large fuel tank with 9.5 hours continuous

2.Precise Machining Technique,Automatic shutdown for low oil pressure

3. Long Life of the Machine

4.Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction

7.Four-stroke diesel internal combustion engine

8.Advanced direct fuel injection system

9.Automatic voltage stabilizer

10.Light weight construction

11.One year warranty

Specifications:

Model	FSH170F(E)	FSH178F(E)	FSH178FA(E)	FSH186F(E)	FSH186FA(E)
Type	Air-cooled,4-stroke,single cylinder,side valve
Bore*storke(mm)	70*55	78*62	78*64	86*70	86*75
Dispalcement(L)	0.211	0.296	0.305	0.406	0.418
Combustion sysytem	Derict injection
Rate output KW(HP)/rpm	2.5(3.4)/3000 2.98(4.0)3600	3.8(5.1)/3000 4.4(5.9)/3600	3.8(5.1)/3000 4.4(5.9)/3600	5.7(7.75)/3000 6.6(8.85)/3600	5.7(7.75)/3000 6.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/3000 4.9(6.6)/3600	4.0(5.36)/3000 4.9(6.6)/3600	6.3(8.57)/3000 7.34(9.85)/3600	6.3(8.57)/3000 7.34(9.85)/3600
Direction of rotation	Counterclockwise,facing PTOshaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	2.5	3.5	3.5	5.5	5.5
Lubricationg oil capacity(L)	0.75	1.1	1.1	1.65	1.65
Lubricationg system	Pressure splashed
Start system	Recoil starter/Electric start
Packing size(LWH)mm	415385470	485475525	485475525	500470555	500470555
20FT unit	312	220	220	192	192
Net weight(KG)	26	35	35	48	48
