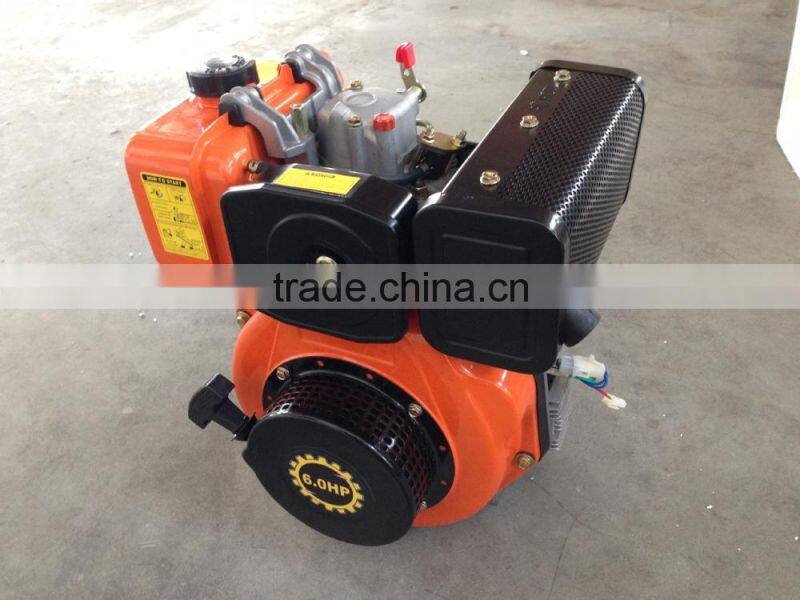

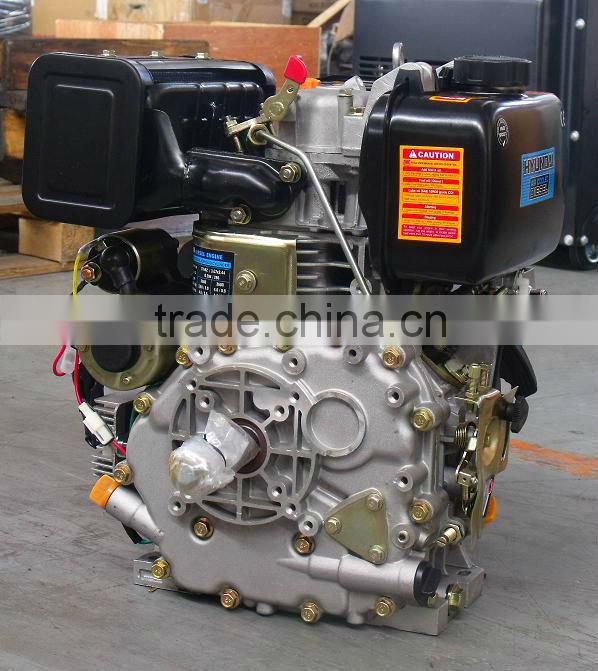

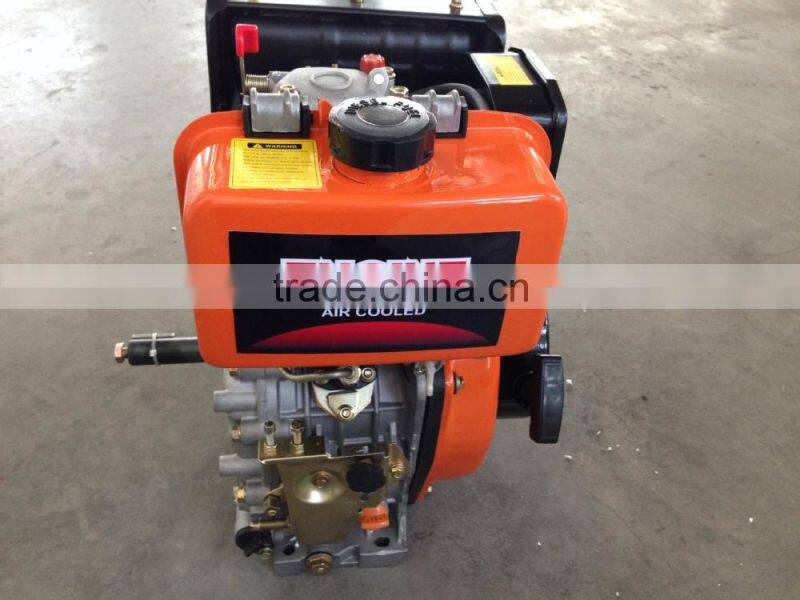

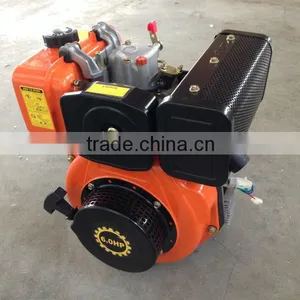

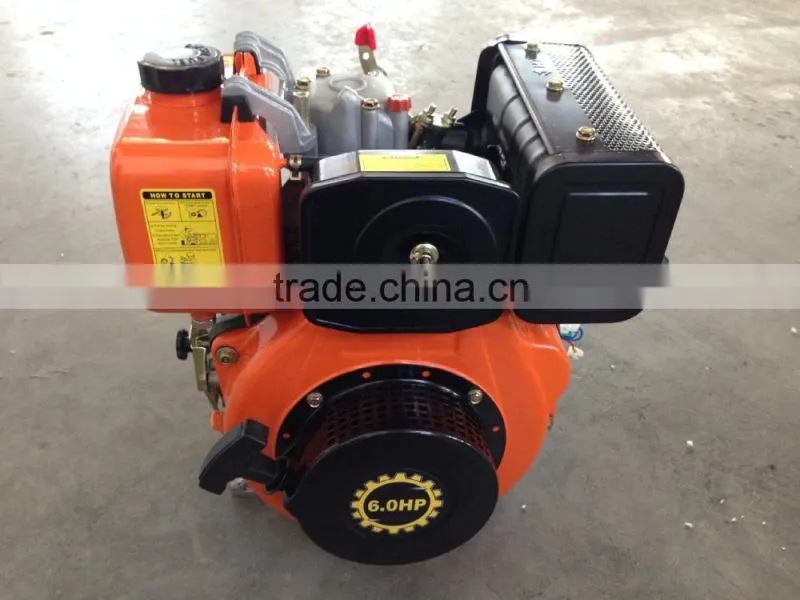

Kama Diesel Engine/178F Diesel Engine/186F Diesel Engine

Specifications

1.kama diesel engine
2.miniature diesel engine
3.air cooled diesel engine
4.2.5-8.0KVA(3.5-11.0HP)
5.kick or electric start

1.kama diesel engine
2.miniature diesel engine
3.air cooled diesel engine
4.2.5-8.0KVA(3.5-11.0HP)
5.kick or electric start



Kama mniature diesel engine is mainly uesd for agriculture machinery,construction machinery,small boat,generator and etc.





Features:

1. Easy to operate and high safty

2. Precise Machining Technique

3. Long Life of the Machine

4. Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction





Parameter:



Model	FSH170F(E)	FSH178F(E)	FSH178FA(E)	FSH186F(E)	FSH186FA(E)
Type	Air-cooled,4-stroke,single cylinder,side valve
Bore*storke(mm)	70*55	78*62	78*64	86*70	86*75
Dispalcement(L)	0.211	0.296	0.305	0.406	0.418
Combustion sysytem	Derict injection
Rate output KW(HP)/rpm	2.5(3.4)/3000 2.98(4.0)3600	3.8(5.1)/3000 4.4(5.9)/3600	3.8(5.1)/3000 4.4(5.9)/3600	5.7(7.75)/3000 6.6(8.85)/3600	5.7(7.75)/3000 6.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/3000 4.9(6.6)/3600	4.0(5.36)/3000 4.9(6.6)/3600	6.3(8.57)/3000 7.34(9.85)/3600	6.3(8.57)/3000 7.34(9.85)/3600
Direction of rotation	Counterclockwise,facing PTOshaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	2.5	3.5	3.5	5.5	5.5
Lubricationg oil capacity(L)	0.75	1.1	1.1	1.65	1.65
Lubricationg system	Pressure splashed
Start system	Recoil starter/Electric start
Packing size(L*W*H)mm	415*385*470	485*475*525	485*475*525	500*470*555	500*470*555
20FT unit	312	220	220	192	192
Net weight(KG)	26	35	35	48	48
