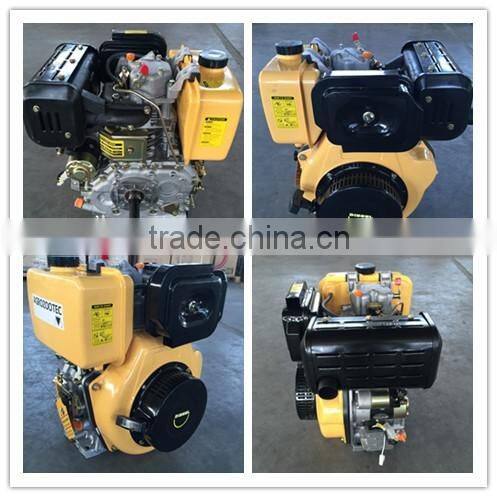

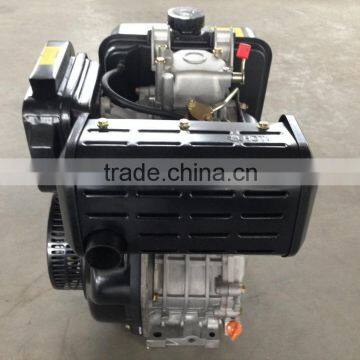

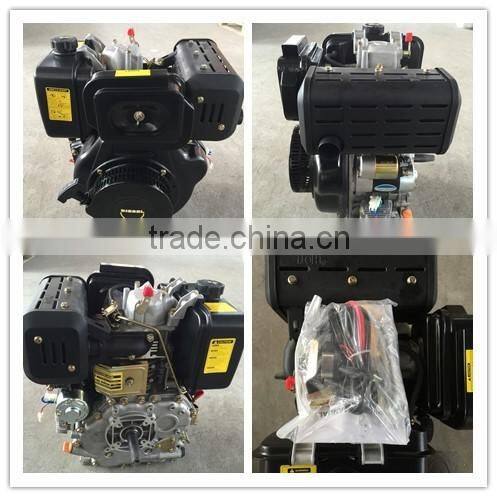

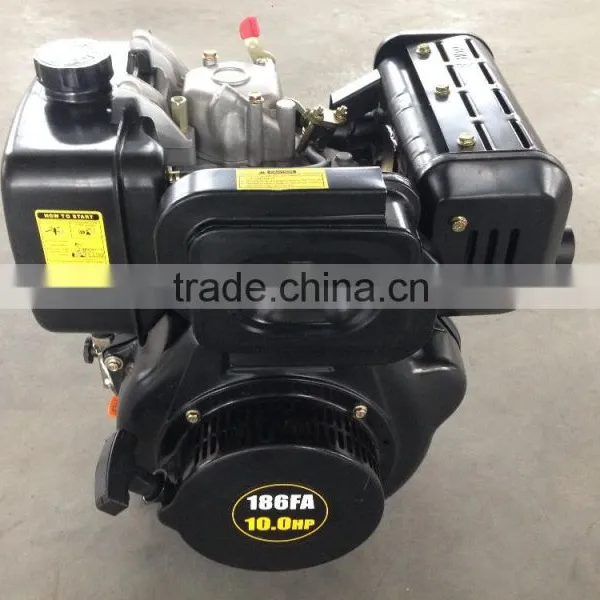

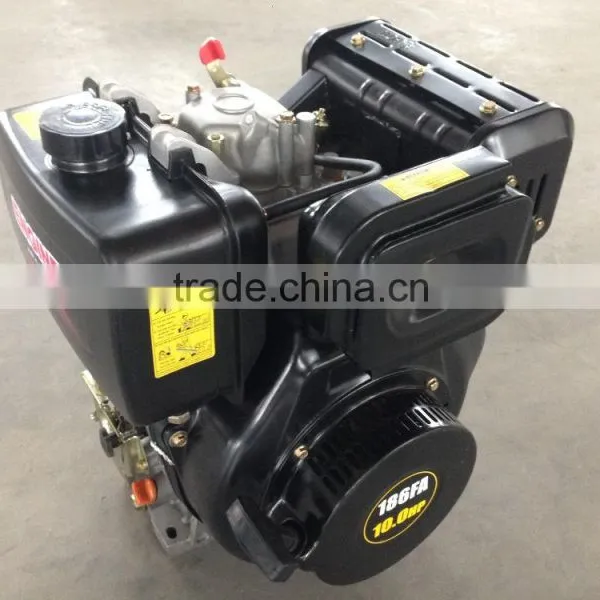

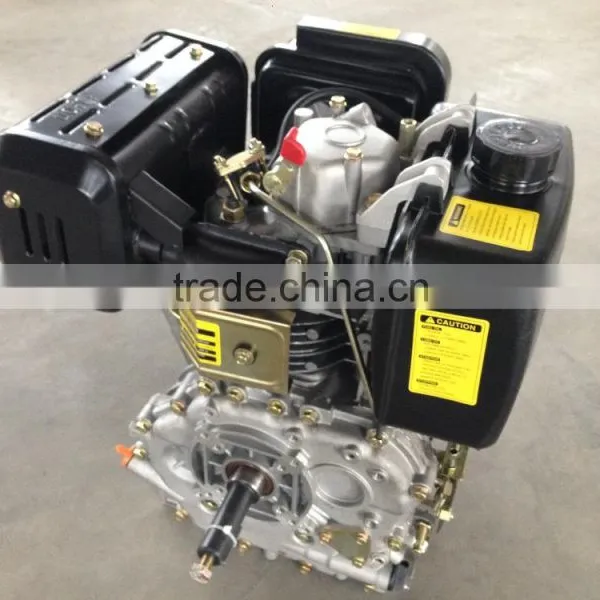

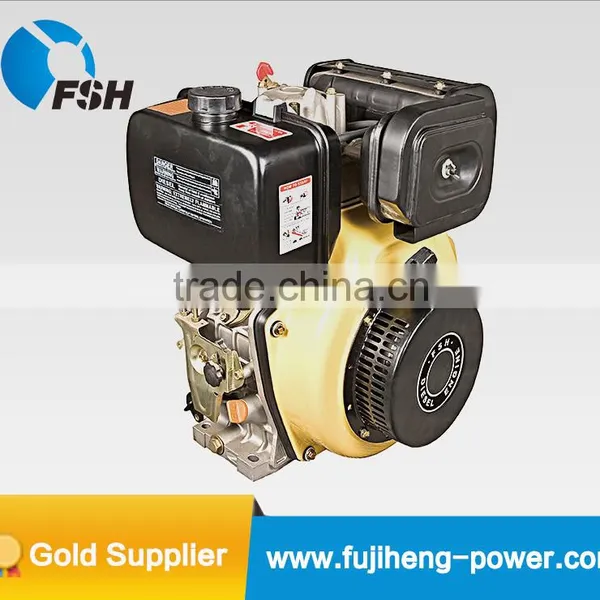

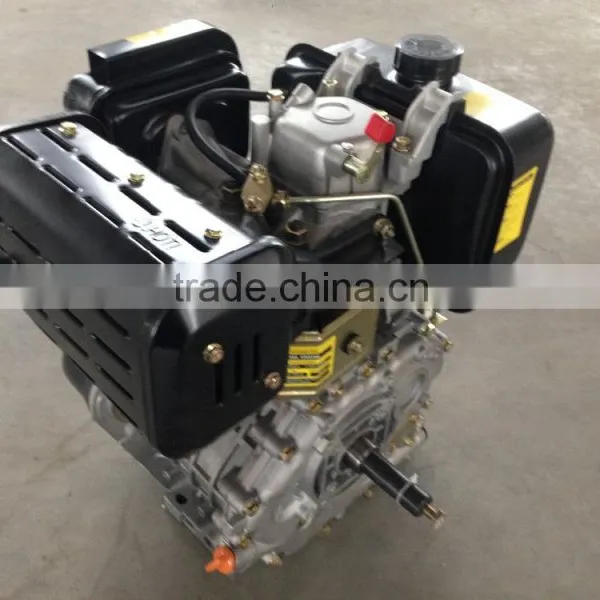

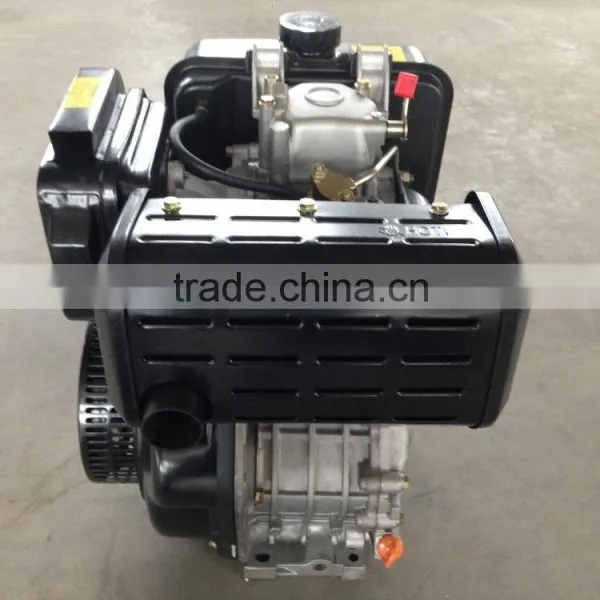

Diesel Engine 186F Air Cooled Kama Diesel Engine

US$ 45 - 250 MOQ: 20 Pieces

Key Specifications

Condition:

New

Usage:

Other, agricultural

Fuel:

Diesel

Yancheng Fujiheng Power Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, agricultural

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, mannual/electric start

Place of Origin Jiangsu, China

Brand Name OEM

Model Number 186F

Dimension(L*W*H) 485*475*525 mm

Weight 35kgs

Certification CE

Warranty 1 year

After-sales Service Provided Overseas service center available

Features:

1. Easy to operate and high safty

2. Precise Machining Technique

3. Long Life of the Machine

4. Delicate and Beautiful Appearance Design

5. Broader Applicable Scope

6.Good quality and less malfunction

Parameter:

Model :	FSH 170F(E)	FSH 178F(E)	FSH 186FA(E)	FSH 188FAE
Type	Single-cylinder, Vertical,4-stroke, Air-cooled Diesel Engine
Bore * Stroke (mm)	70 * 55	78 * 62	86 * 72	88 * 75
Displacement (cc)	211	296	418	456
Engine Speed(r/min)	3000 / 3600(keyway shaft, taper shaft,thread shaft, mult-splined shaft)
Power Take Off	1500/1800rpm(camshaft)
Continuous Output	4.5HP	5.5HP	9.5HP	11HP
Maximun Output	5.0HP	6.5HP	10HP	12HP
Starting System	Recoil or Electric start
Fuel / Lub. Oil	0 # in summer, -10# or -20# in winter light diesel
Lub. Oil	CD grade or SAE 10W-30, SAE 15W-40
Electric System	12V-18AH	12V-24AH	12V-36AH
Fuel Tank Capacity (L)	2.5	3.5	5.5
Lube Oil Capacity (L)	0.8	1.1	1.65
Dimensions(LxWxH)/mm	450360450mm	460420470mm	510455515mm
N.W(KG)	27	33	48
