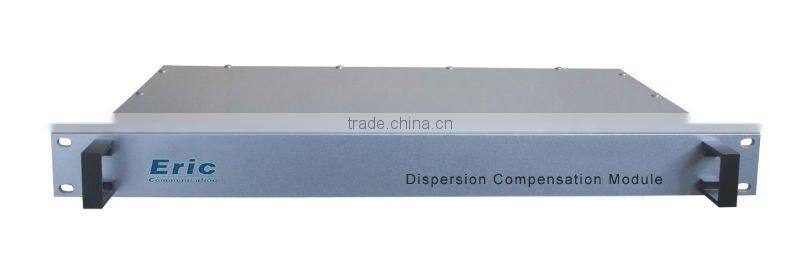

Dispersion Compensation Module (ODCM)
US$ 480 - 1,282
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Eric
Model Number:
ODCM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dispersion Compensation Module DCMUS$ 480 - 1,282MOQ: 1 Piece -
Dispersion Compensation ModuleUS$ 480 - 1,282MOQ: 1 Piece
-
Eric SC ST Switching Fiber Optical AdaptorNegotiableMOQ: 50 Pieces
-
High Precision FC/APC Fiber Optic AdaptorNegotiableMOQ: 100 Pieces
-
FC Oval Fiber Optic AdaptorNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Eric
Model Number
ODCM
Specifications
1)Dispersion Compensation Module (DCM)2)edfa module
3)Designed for long distance 1550nm networks
4)High load dispersion comp

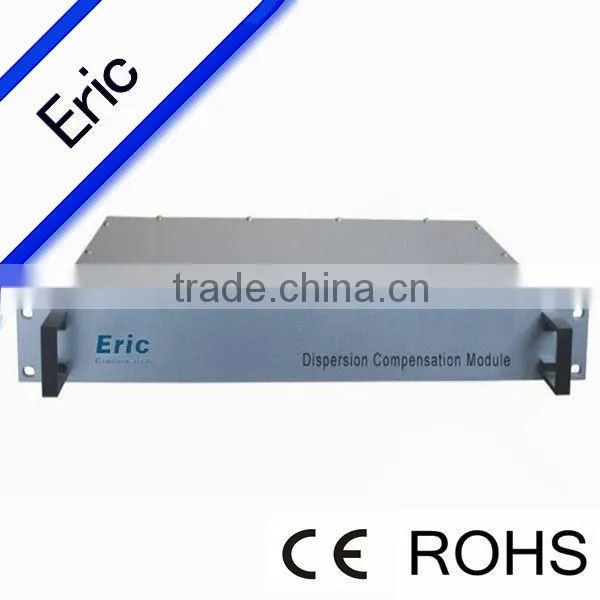

Dispersion Compensation Module (ODCM)
Product description
Dispersion compensation module is especially designed for 1550nm long distance network. It does not only compensate standard single model optical fiber extra dispersion effectively, but also can 100% compensate standard single mode chromatic dispersion gradient.
Products Series
ODCM-20( Fiber length≥20km)
ODCM-40( Fiber length≥40km)
ODCM-60( Fiber length≥60km)
ODCM-80( Fiber length≥80km)
Parameters
1. Working Range
Wavelength(nm)C-band |
1525-1565 |
Working Temp(deg C) |
-30to70 |
Storage Temp(deg C) |
-40to75 |
Relative Humidity(deg C) |
<85 |
2. Technical Parameters Model |
Dispersion |
IL |
WDL |
PDL |
PMD |
|||||
1525 |
1545 |
1565 |
||||||||
Ps/nm |
Ps/nm |
Ps/nm |
Ps/nm |
Ps/nm |
Ps/nm |
dB |
dB |
dB |
dB |
|
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Max |
Max |
Max |
|
ODCM-20 |
-315 |
-293 |
-337 |
-319 |
-364 |
-340 |
3.3 |
0.5 |
0.1 |
0.4 |
ODCM-40 |
-629 |
-588 |
-673 |
-640 |
-727 |
-682 |
4.7 |
0.5 |
0.1 |
0.5 |
ODCM-60 |
-942 |
-883 |
-1009 |
-960 |
-1090 |
-1024 |
6.4 |
0.6 |
0.1 |
0.6 |
ODCM-80 |
-1251 |
-1183 |
-1340 |
-1286 |
-1448 |
-1371 |
8 |
0.7 |
0.1 |
0.7 |
