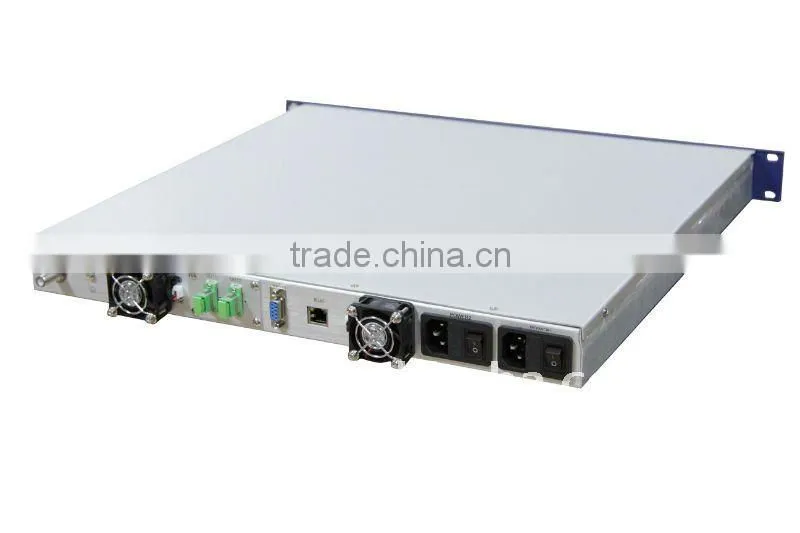

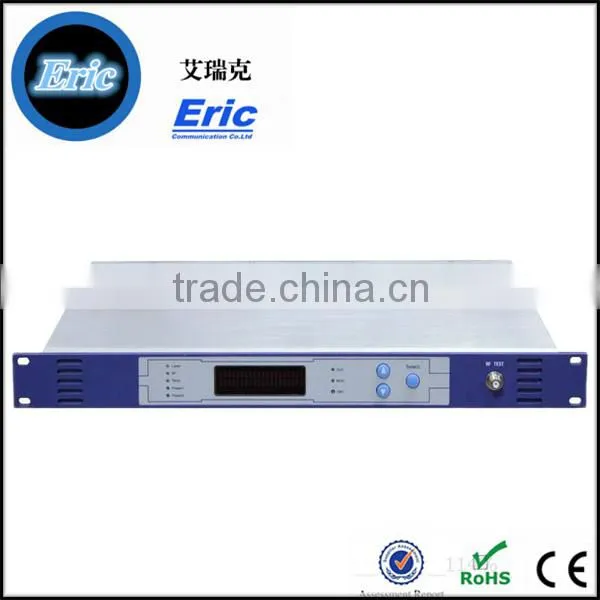

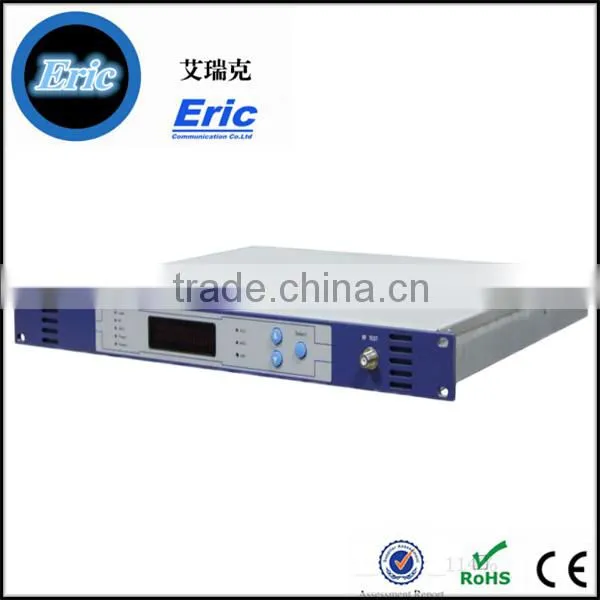

1550nm CATV External Optical Transmitter Telecom Equipment
Product Description
EMTX1500 series external modulated optical transmitter accords with current international industry technique. The whole unit light source adopts narrow bandwidth, low noise, continuous wave DFB laser, which is propitious to reduce the influence of dispersion. The whole unit signal modulation adopts CATV special LiNbO3 external modulator of American company.
Features
1) Output from 3dBm ~ 10dBm, and single or dual out for the user’s choice.
2) Both the external modulator and laser are imported from the United States or Japan.
3) Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR when the CNR is in high standard.
4) Perfect SBS suppress circuit and adjustable SBS in 13, 16, 18, suitable for different types of CATV net.
5) AGC and MGC control.
6) Internal double power which can be switched automatically.
7) Automatically shell temperature control.
Items |
Parameters |
Remarks |
|
Optical Parameters |
Wavelength (nm) |
1550±10 |
|
Laser Type |
DFB |
|
|
Modulation Way |
External Modulation |
|
|
Output (dBm) |
2×7 |
1X5/1X6/1X7/1X8/1X9/2X5/2X6/2X7/2X8/2X9/2X10 optional |
|
Optical Return Loss (dB) |
≥60 |
|
|
Optical Connector |
FC/APC |
SC/APC |
|
RF Parameters |
Bandwidth (MHz) |
45-862 |
|
Input Level (dBµV) |
80±5 |
AGC |
|
Flatness (dB) |
≤±0.75 |
45 ~ 862MHz |
|
Return Loss (dB) |
≥16 |
45 ~ 750MHz |
|
Input Impedance (Ω) |
75 |
|
|
Link Parameters |
CNR (dB) |
≥52 |
|
CTB (dB) |
≥-65 |
|
|
CSO (dB) |
≥65 |
|
|
SBS (dBm) |
≥16.0 |
13 / 16 / 18 Can chosen |
|
General Parameters |
Network Management Port |
RJ45 / RS232 |
|
Power Supply (V) |
90 ~ 265VAC |
-48VDC Can Chosen |
|
Power Consumption (W) |
≤50 |
|
|
Working Temp (°C) |
-20 ~ 85 |
Automatically shell temperature control. |
|
Relative Humidity |
20% ~ 85% |
|
|
Size (″) |
19″X 11″X 1.75″ |
483(W)X381(L)X44(H) |
|
Our Services
1.Any inquiries will be replied within 24hours
2.Professional manufacturer.
3.OEM/ODM avaliable:
1)Silk print logo on the front panel
2)Customized Color box
3)Customized housing
4)Any your idea on our equipments we can help you to design and put it into production
4.High quality, fashion designs, reasonable and competitive price, fast lead time
5.After-sale service:
1)All products will have been strictly quality checked in house before packing

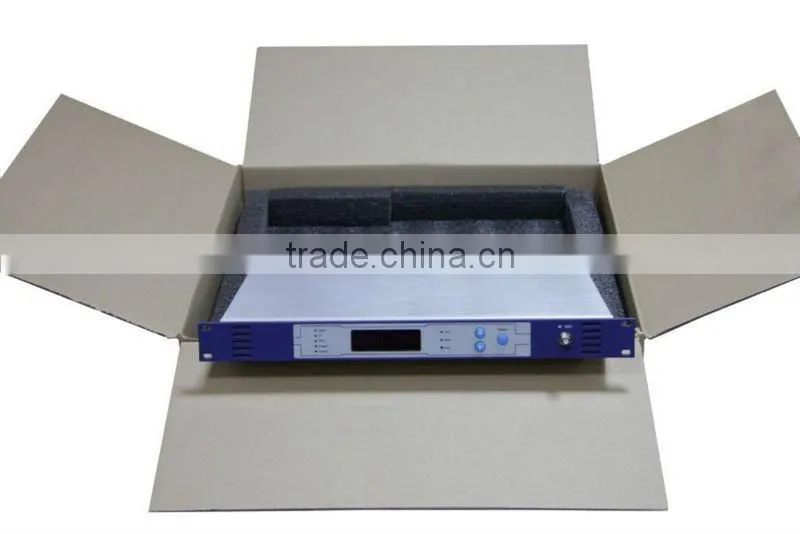

2)All products will be well packed before shipping
3)All our products have 1year warranty.
6.Faster delivery:
Sample order 1~3working days, and 3~7 working days for bulk production
7:Payment:
You can pay fro the order via: T/T,Western Union, Paypal and others, or place order directly on Aliexpress
8.Shipping:
We have strong cooperation with DHL, TNT,UPS,FEDEX,EMS and China Air Post
You also can choose your own shipping forwarder.
