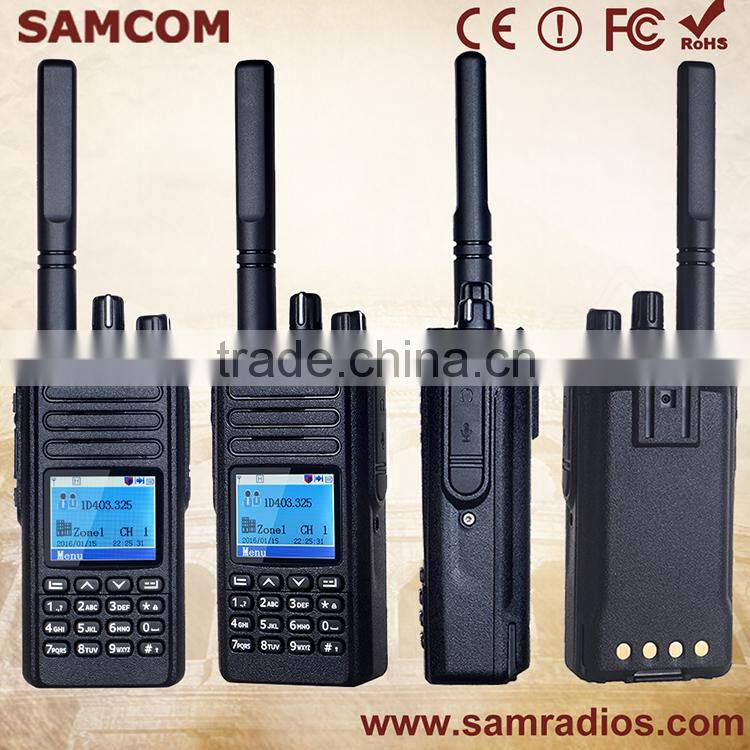

SAMCOM DP-20 IP67 Waterproof New Arrival Ham Single Band Walkie Talkie
| General | |
| Frequency Range | 136-174/350-390/400-480/465-520MHz |
| Channel Spacing | Digital: 12.5KHz/Analog:12.5/25KHz |
| Channels Capacity | 1024 |
| Antenna Impedance | 50Ω |
| Battey Type | Lithium-ion |
| Power Voltage Range | 7.4V DC ±20% |
| Tempeature Range | -20~+55°c |
| Weights | 270g With antenna & battery |
| Dimensions(H*W*D) | 133×61×40mm |
| Transmitter | |
| RF Power | ≥4W(H)/≥1W(L) |
| Frequency Stability | ±1.5PPW |
| 4FSK Modulation | 7K60FXD/7K60FXE |
| Spuious Emissions | -36dBm<1GHz,-30dBm >1GHz |
| Idle Slot Power | -57dBm |
| FSK Error | <3% |
| FM Noise | 40dB12.5KHz |
| Receiver | |
| Sensitivity | 0.3uV(BER 5%) /0.7uV(BER 1%) |
| Co-Channel Rejection | -8dB12.5KHz |
| Spurious Radiation | -57dBm<1GHz,-47dBm<1GHz |
| Adjacent Channel Selectivity | 70/60dB |
| Intermodulation | 60dB |
| Spurious & image Rejection | 70dB |
| Audio Output | 1000mW16Ω For 5% THD |
|
- IP66 rating dust and water protenction - Robust,rugged and heavy-duty design - wide frequency range - UHF:400-480MHz/VHF:136-174MHZ - 1024 channels, up to 65 zones - 2 programmable function side buttons - Crisp, clear and high quality sound - 2000mAh high capcity Li-ion battery pack - 1.8 inch TFT display,65535 colors, 160×128 pixels - TDMA dual Time Slots technology |
- ETSI DMR I&II standard compatible
- AMBE+2 digital vocoder
- Digital and analogue dual modes
- 5 Watts output power
- SMS -short message service
- CTCSS/DCS/DTMF signaling
- Multiple call modes
- Noise suppression
- voice encryption
- Emergency alarm
|
||
|
Warranty Information The Model SAMCOM DP-20 is covered by a 24 months warranty against defective workmanship or defective parts. It does not cover damage caused by misuse, water ingress, battery leakage or negligence.
