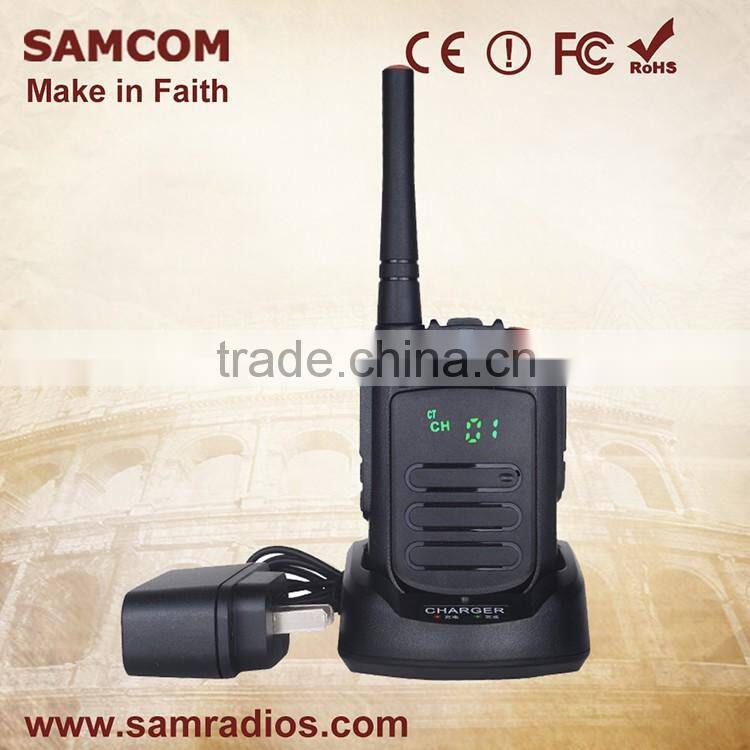

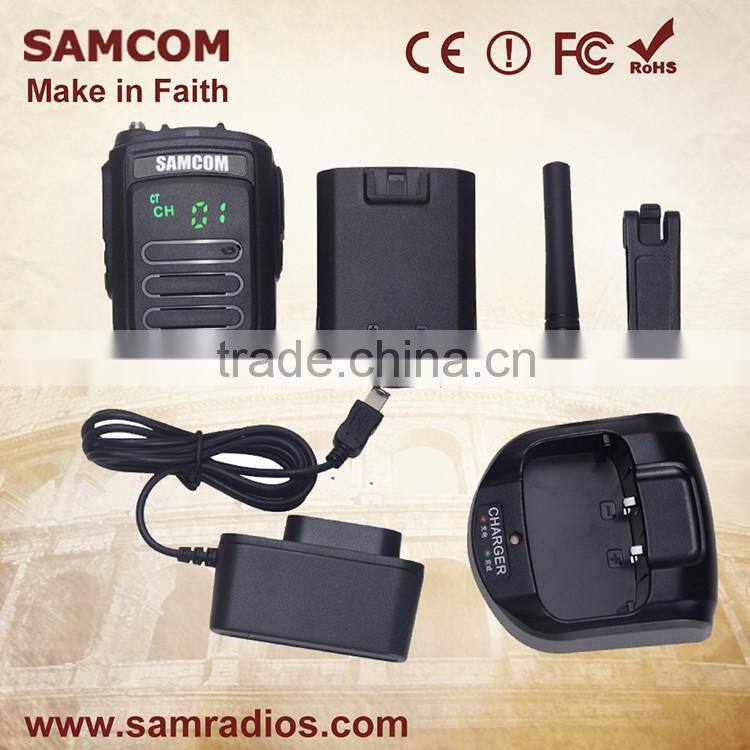

SAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver

SAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver thumbnail-1
SAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver photo-1
US$ 0.1 - 28 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SAMCOM
Model Number:
CP-120
Contact Supplier Request Quote Chat Now
Quanzhou Sam Radios Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Shenzhen Guangzhou Beijing Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SAMCOM
Model Number CP-120
Type Handheld
Dimensions 90(H)*61(W)*33(D)mm
Frequency Range 400-480MHz,LPD433MHz,PMR446
Storage Channel 128
Talk Range 5-10km

  SAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver

     SAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver

General
Frequency Range  400-480MHz,LPD433MHz,PMR446MHz,FRS,UHF CB
Channel Spacing  12.5/25KHz
Channels Capacity  128
Antenna Impedance  50Ω
Battey Type  3.7V 1700mAh Lithium-ion
Power Voltage Range  3.7V DC ±20%
Tempeature Range  -20~+60°c
Weights  133g
Dimensions(H*W*D)  90×61×35mm
Transmitter
RF Power  ≤2W
Frequency Stability  ±1.5PPM
Modulation Deviation  <5KHz(Wide)/<2.5KHz(Narrow)
Spuious Emissions  -36dBm<1GHz,-30dBm >1GHz
Audio Response  +1~-3dB
FSK Error   <3%
FM Noise  65/55dB
Receiver
Sensitivity 12db SINAD  0.25/0.35uV
Hum and Noise  40dB
Adjacent Channel Selectivity  70/60dB
Intermodulation  60dB
Spurious & image Rejection  70dB
Audio Output  1000mW16Ω For 10% distortion



SAMCOM CP-120 High Quality Hidden LED Lighting Handheld TransceiverSAMCOM CP-120 High Quality Hidden LED Lighting Handheld Transceiver



- IP65 rating dust and splash protenction

- Robust,rugged and heavy-duty design

- Wide frequency range

  UHF:400-480MHz/VHF:136-174MHZ

- 32 programmable channels

- 2 programmable function side buttons

- Crisp, clear and high quality sound

- 2200mAh high capcity Li-ion battery pack

- High/low RF power select

- Channel conventional & priority scanning
- CTCSS/DCS/DTMF signaling
- 5 Watts output power
- SQL levels setting
- Built in VOX transmission
- Low battery alert
- Battery save
- DTMF PTT unit ID-ANI
- Emergency calling
- Voice compander
- Scrambler encryption

Main Features

Durable and Water-resistant

Easy-To-Use

Crisp and High Quality Sound

Programmable Function Side Buttons with Hold

Compatible Accessories



Our Services
Note:
We usually try our best to introduce you very right two way radios.FM Transceiver , walkie talkie etc
We are pleased to receive your enquiry.
We are pleased that you would like to order our samples to test.
We are looking for two way radios dealer and distributors.
We are sure that we will introduce you the very right two way radio, FM Transceiver, walkie talkie
We offer you 1years warranty for radio walkie talkie and 6 months for accessories.
We are pleased that we can become old friends step by step.
