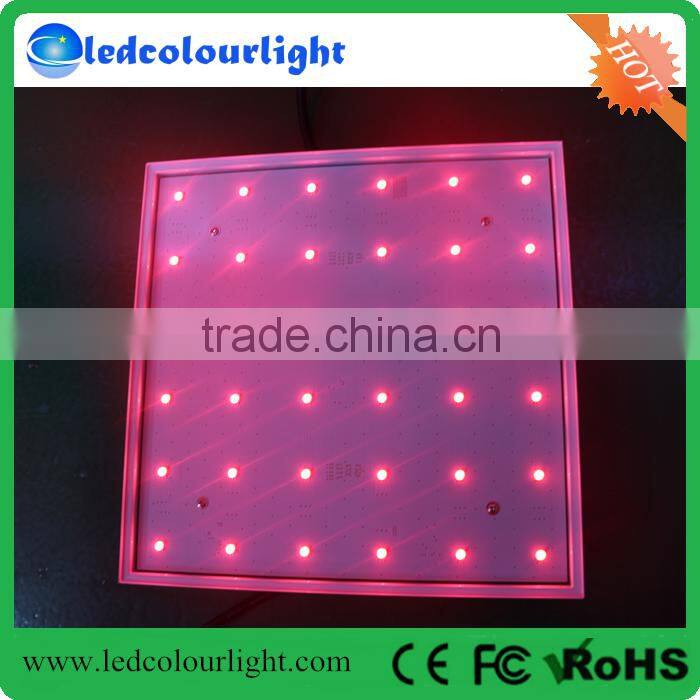

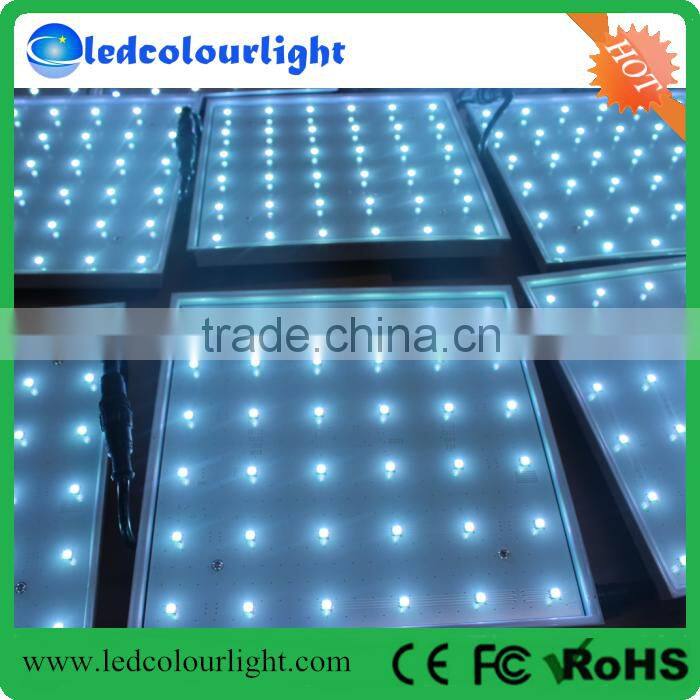

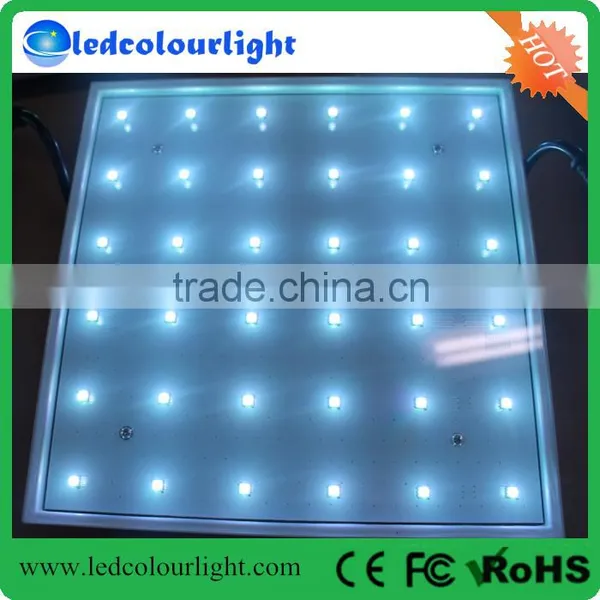

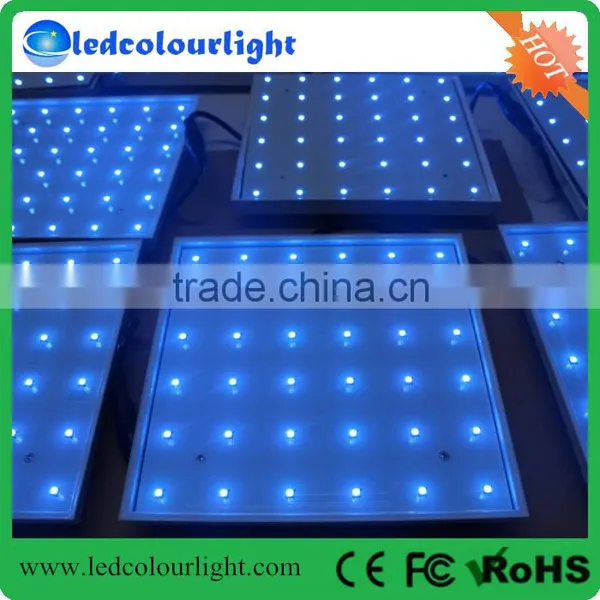

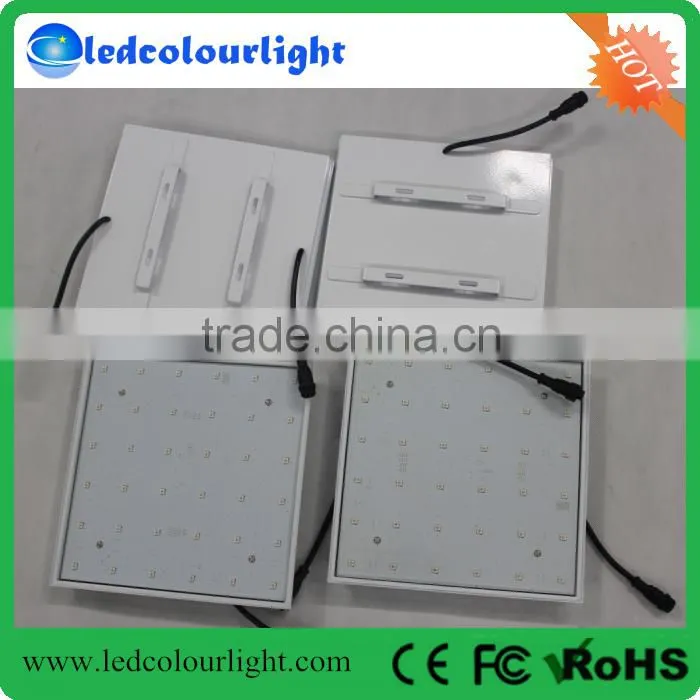

300x300 dmx 5050 outdoor rgb led pixel panel light
Product features
1, Shell adopt high quality aluminum, stainless steel and special design, not only beautiful, but also extremely high thermal conductivity. Shell size 150*150mm, 250*250mm, 300*300mm, 600*600mm, 600*1200mm. Other stylrs can be customized.
2, Support the DMX512 controller, manually or automatic address, meet customaer's requirements or different occasions.
3, Adopts high precision constant current drive IC, LED brightness is consistant, uniform color, 180 degree angle.
4, Using high brighness SMD, RGBW or single color. 12-24V voltage input, there are 4W, 8W, 15W, 35W, 45W can be choose, other power can be customized.
5, PCB size is 150*150, 250*250, 300*300, 600*600 etc, or customized.
parameters
Model | LCL-PL150B/W- RGB-D1616A/M | LCL-PL250B/W- RGB-D1616A/M | LCL-PL250B/W- RGB-D3636A/M | LCL-PL300B/W- RGB-D1616A/M | LCL-PL300B/W- RGB-D3636A/M |
Size | 150*150mm | 250*250mm | 250*250mm | 300*300mm | 300*300mm |
Color | RGB | RGB | RGB | RGB | RGB |
LED Lighting Sourcing | SMD RGB 5050 | SMD RGB 5050 | SMD RGB 5050 | SMD RGB 5050 | SMD RGB 5050 |
LED QTY | 16pcs | 16 pcs | 36 pcs | 16 pcs | 36 pcs |
Beam Angel | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree |
Input Voltage | DC12V-24V | DC12V-24V | DC12V-24V | DC12V-24V | DC12V-24V |
Power | 5W | 5W | 10W | 5W | 10W |
Control | DMX512 | DMX512 | DMX512 | DMX512 | DMX512 |
Address Setting | Auto/Manual | Auto/Manual | Auto/Manual | Auto/Manual | Auto/Manual |
Pixel | 16 Pixels | 16 Pixels | 36 Pixels | 16 Pixels | 36 Pixels |
Universe | 10panels /universe | 10panels /universe | 4panels /universe | 10panels /universe | 4 panels /universe |
Operating Temperature | -40 to 50℃ | -40 to 50℃ | -40 to 50℃ | -40 to 50℃ | -40 to 50℃ |
Storage Temperate | -40 to 80℃ | -40 to 80℃ | -40 to 80℃ | -40 to 80℃ | -40 to 80℃ |
IP | IP40 | IP40 | IP40 | IP40 | IP40 |
Connection Guide
Applications
300x300 dmx 5050 outdoor rgb led pixel panel light
Apply to
LED backlight,
video display,
club, bar decoration,
stage lighting,
video wall, etc.

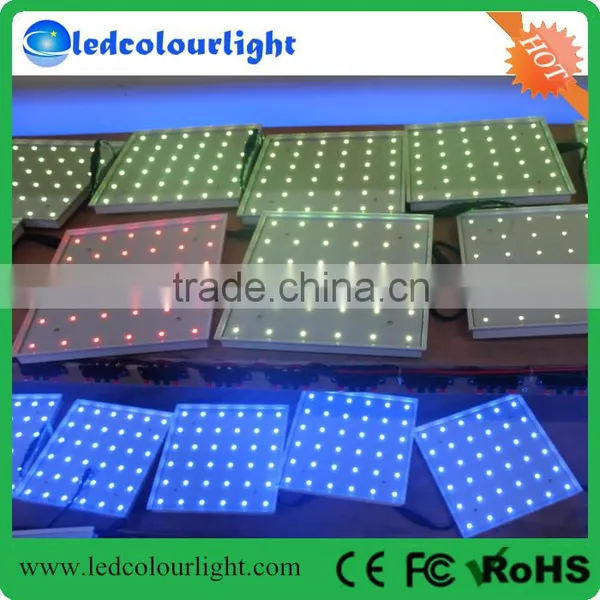

Product Effects
related product
Packaging Details: Usually packaging is case or according to your requirements.
Delivery Detail: 7 to 15 days after receipt payment
1. Q: Are you a factory or trading company ?
A:we are a factory as a munufacturer.
2. Q: What your company produces mainly ?
A: Ledcolourlight mainly specilized in DMX Lighting products, and also provide a full dmx lighting solution for projects.
3. Q: How can I get some samples ? Delivery time for samples?
A: If samples in stock, can be sent out right away.
If no samples in stock, take 1-3 business days for production.
4. Q: MOQ?
A: 2 pieces per one model at least.
5. Q: OEM and ODM available?
A: Yes.
6. Q: Delivery time for big order?
A: For small order, 3-6 business days.
For big order, 5-12 business days.
7. Q: Payment Term?
A: Paypal (Less than 1000USD)
T/T, Western Union
L/C
8. Q:Warranty?
A. all products we sell are in good quality and have been tested before they are shipped out.
We offer 2 years Warranty
9. Q: How About I had never bought any product from China?
A: We will guide you step by step, any possible potential cost will be listed, and provide all info if needed
