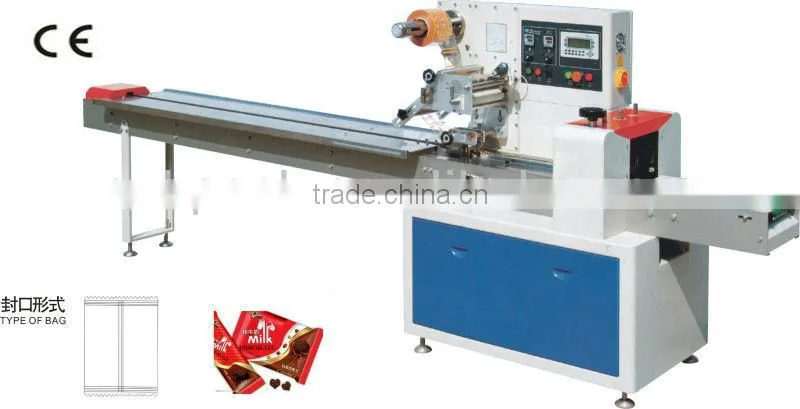

Automatic Candy Packing Machine Wholesale SZ-250B

Specifications

Speciations of SZ-250B:
1. easy to operate
2. high quality and good price
3. CE certificate

Application of Automatic Candy Packing Machine wholesale SZ-250B

Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.

1.easy to operate
2.high quility ang good price
3. CE certification



Optional device of Automatic Candy Packing Machine wholesale SZ-250B

1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen



Main performance & structure characteristics(Automatic Candy Packing Machine wholesale SZ-250B) :

1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.

2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.

3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance

4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.

5. Highly sensitive photoelectric device tracks automatically and accurately.

6. Positioning stop function without sticking knife, cutting and wasting envelope.

7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.

8. The temperature of each seal is independent. PID control is suitable to various packaging materials.

9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.



Technical parameters:



Type	SZ-250	SZ-320	SZ-350	SZ -400	SZ -450	SZ-600
Film width	250mm	320mm	350mm	400mm	450mm	600mm
Bag Length	65-280mm	65-330mm	65-330mm	130-400mm	130-450mm	130-450mm
Bag width	30-110mm	50-160mm	50-160mm	50-185mm	60-200mm	60-280mm
products High	max.55mm	Max.55mm	max.60mm	max.80mm	max 90mm	max95mm
Packing speed	40-230bag/mins	40-230bag/min	40-230bag/min	30-180bag/min	30-180bag/min	30-150bag/min
Power	220v 50/60HZ 2.4kw	220v 50/60HZ 2.6kw	220v 50/60HZ 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw
Machine size	3770x670x1450mm	3770x720x1450mm	4020x770x1450mm	4020x800x1450mm	4020x820x1450mm	4020x90x1450mm
Machine Weight	600kg	700kg	800kg	900kg	1000kg	1100kg





Electric detailed list:

No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset



Quality Control:

Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.

Basic Service:

1.Technical support

2.Loading inform

3.Video for debugging

4.Customer's require is welcome

5. Free training, Free 1 year warranty
