Guaze Mask Packaging Machine

Guaze Mask Packaging Machine thumbnail-1
Guaze Mask Packaging Machine photo-1
US$ 4,100 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Boxing, Capping, Coating, Filling, Laminating, Sealing, Wrapping
Application:
Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Contact Supplier Request Quote Chat Now
Foshan SUK Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Boxing, Capping, Coating, Filling, Laminating, Sealing, Wrapping
Application Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Belt, Capsule, Film, Foil, Pouch, Stand-up Pouch, Other, Bags, Belt, Capsule, Film, Foil, Pouch, Stand-up Pouch, Flow
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 2.6KW
Power 220V
Place of Origin Namibia
Brand Name SUK
Model Number SZ-320
Dimension(L*W*H) (L)3770X(W)720X(H)1450mm
Certification CE
After-sales Service Provided Overseas service center available

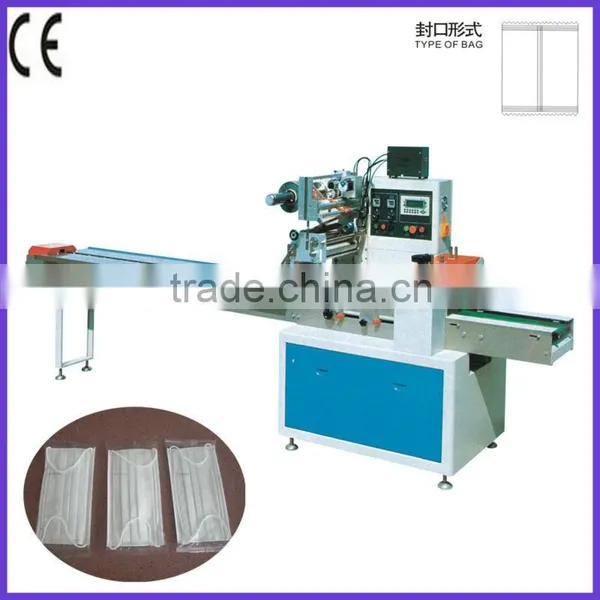

Guaze mask packaging machine

Applications

Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.

Main performance & structure characteristics

1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2.  human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.

Technical Parameters

Type SZ-250 SZ-320 SZ-350 SZ -400 SZ -450 SZ-600
Film width 250mm 320mm 350mm 400mm 450mm 600mm
Bag Length 65-280mm 65-330mm 65-330mm 130-400mm 130-450mm 130-450mm
Bag width 30-110mm 50-160mm 50-160mm 50-185mm 60-200mm 60-280mm
products High max.55mm Max.55mm max.60mm max.80mm max 90mm max95mm
Packing speed 40-230bag/mins 40-230bag/min 40-230bag/min 30-180bag/min 30-180bag/min 30-150bag/min
Power 220v 50/60HZ 2.4kw 220v 50/60HZ 2.6kw 220v
50/60HZ 2.6kw		 220v 50/60hz 2.6kw 220v 50/60hz 2.6kw 220v 50/60hz 2.6kw
Machine size 3770x670x1450mm 3770x720x1450mm 4020x770x1450mm 4020x800x1450mm 4020x820x1450mm 4020x90x1450mm
Machine Weight 600kg 700kg 800kg 900kg 1000kg 1100kg

Optional Devices

1. Date coder

2. Alternative sealing patterns and notch

3. Full Stainless

4. Touchable Screen

5. Filled with air device

6. Release the air and punching

 Electric detailed list

No.

Product Name

Brand

1

PLC

Schneider

2

Inverter

Schneider

3

7 inch Touch screen

Kun Lun Tong Tai

4

Intermediate Relay

OMRON

5

Switching power

Meanwell/Taiwan

6

Solid state relay

Schneider

7

Temperature controller

Yatai/Shanghai

8

Electric eye

Yatai/Shanghai

9

Dynamo

Dongling/Guangdong

10

Two phase switch

Schneider

11

Circuit breaker

Munlan

12

Connecting terminal

Weidemile

13

Proximity switch

OMRON

14

Thumb switch

Schneider

15

Intermediate relay

Schneider

16

Encoder

Paso/Shanghai

Basic Service

1.Technical support

2.Loading inform

3.Video for debugging

4.Customer's require is welcome

5.Free training, one year warranty

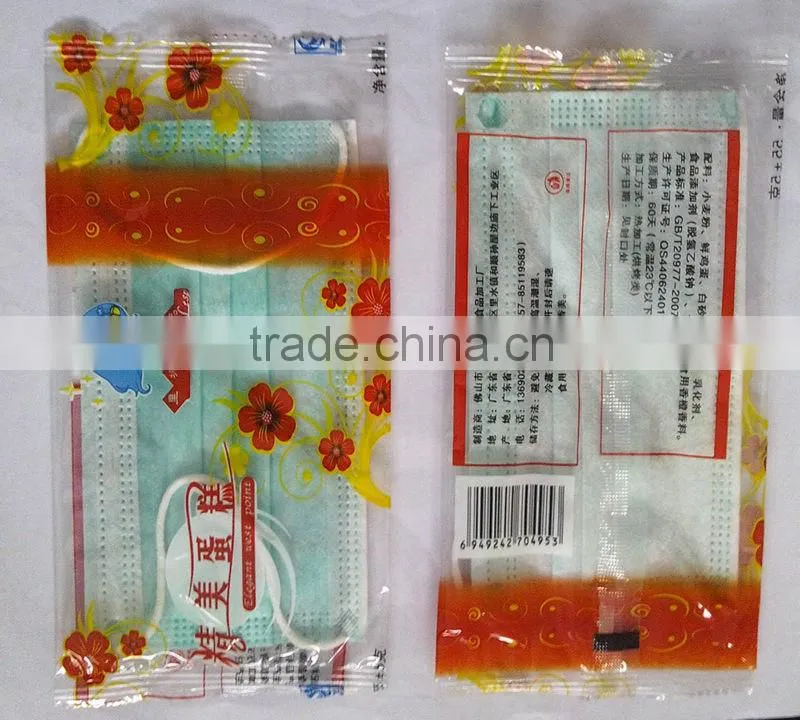

Packing samples

guaze mask packaging machine

 Machine pictures: frequency converters, touch screen, solid-state relay

guaze mask packaging machine

 7 inch touch screen

guaze mask packaging machine

 Workshop

guaze mask packaging machine

Wooden cases packing After inspection,our machines are wrapped by plastic film and then carefully packed in wooden cases.



guaze mask packaging machine
