We are a Chinese air compressor manufacturer.

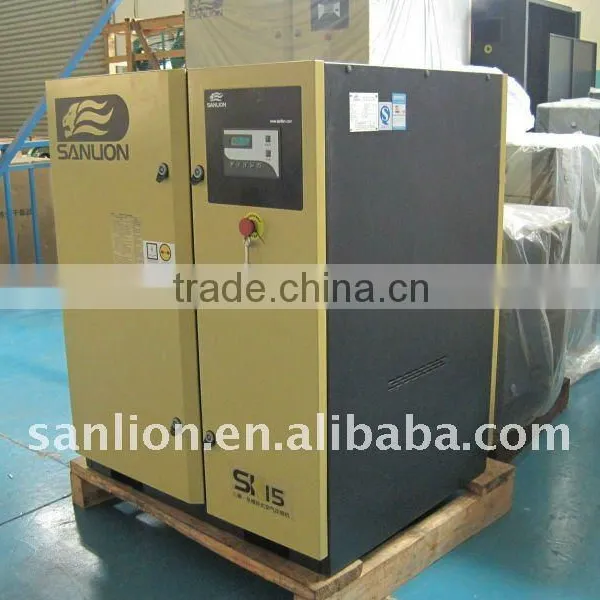

SANLION variable frequency screw air compressor, made by Germanic airends. The depth oil/air separator, As Germany Hi-quality, best performance, good price!
The Power range from 5.5KW(7.5HP)to 250KW(340HP)
Working pressure from 7Bar(101.5PSI) to 13Bar(188.5PSI)
Performance Features
1. Cinquefoil coupling with elasticity to reduce the shaking and abrasion, ensure the sensitive transmission and easier maintenance.
2. International brand Rotorcomp or GHH-Rand airend with latest lines rotor technology, saving more energy with higher performance. Rotor and bearing is with heavy loading design to less the trouble.
3. The seven generation PLC controlling system for the air compressor, with fully automatic working and controlling, Comprehensive protection and several compressor work with together, Remote Controlling, Data communication function.
4. High balanceable taper pulley, and top rubber tape, ensure the driven efficency, extend the maintenance period.
5. Air intake valve for the effectiveness and reliable working, with less spare parts, and less trouble on the frequency loading.
6. High performance and special-made motor for screw air compressor, with Class-F insulation, SF coefficient up to 1.15, and protection grade of IP54, imported bearing for the reliable working.
7. All service parts are easier to maintenance and lower cost.
8. Four-stage oil-gas dissociation system, patent technology of extremely low residual oil.
9. High-efficiency butterfly inlet valve
10. Centrifugal cooling fan.
11. High intelligent digitalized controller.
Parameter of SK-15DS--30DS series as follows
Model |
Motor Power |
Exhaust Pressure |
Air Volume |
Noise |
Interface |
Dimension |
Weight |
||||
KW |
HP |
Bar |
Kg/cm2 |
Psi |
m3/min |
CFM |
dB(A) |
inch |
L*W*H(cm) |
Kgs |
|
Sk15 08DS |
11 |
15 |
8 |
8.2 |
116 |
1.6 |
56.5 |
60
|
G3/4
|
89*79*109 |
420
|
Sk15 10DS |
10 |
10.2 |
145 |
1.4 |
49.4 |
||||||
Sk15 13DS |
13 |
13.2 |
189 |
1.15 |
40.6 |
||||||
Sk20 08DS |
15 |
20 |
8 |
8.2 |
116 |
2.4 |
84.7 |
60 |
G3/4 |
89*79*109 |
450 |
Sk20 10DS |
10 |
10.2 |
145 |
2.0 |
70.6 |
||||||
Sk20 13DS |
13 |
13.2 |
189 |
1.6 |
56.5 |
||||||
Sk25 08DS |
18.5
|
25 |
8 |
8.2 |
116 |
3.2 |
113 |
65 |
G1 |
108*90*127 |
540 |
Sk25 10DS |
10 |
10.2 |
145 |
2.7 |
95.3 |
||||||
Sk25 13DS |
13 |
13.2 |
189 |
2.2 |
77.7 |
||||||
Sk30 08DS |
22 |
30 |
8 |
8.2 |
116 |
3.6 |
127.1 |
65 |
G1 |
108*90*127 |
610 |
Sk30 10DS |
10 |
10.2 |
145 |
3.2 |
113 |
||||||
Sk30 13DS |
13 |
13.2 |
189 |
2.7 |
95.3 |
||||||
