Specifications

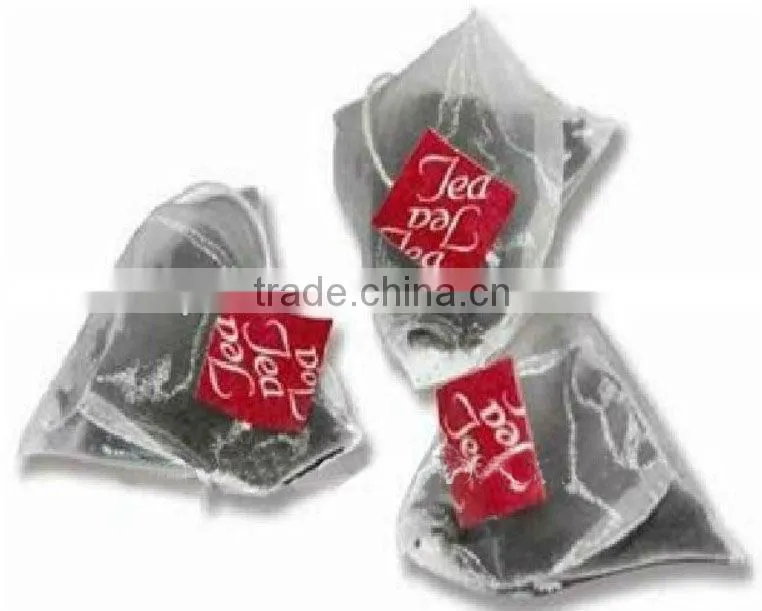

Specifications1.Triangle teabag packaging (Nylon teabag)
2.PLC control,High quality

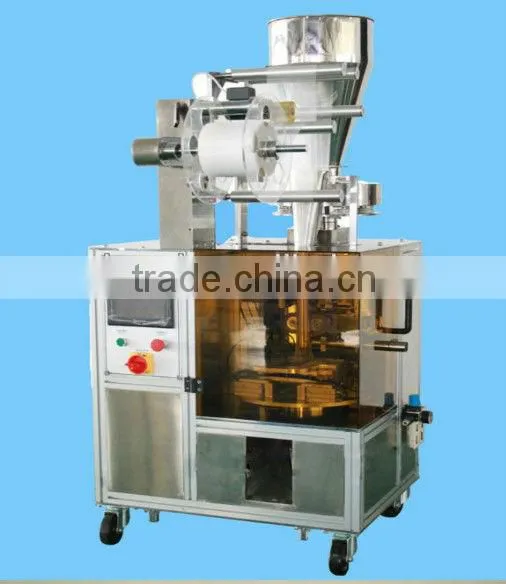

SL-SJB160 Automatic nylon triangle tea bag packing machine
Applications::
Be used for automatically packing products as green tea ,black tea,flower tea ,health tea,medicine tea,granule and so on .
Functions:
This unit can perform either three sides sealing and triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.
2. packaging capacity :3000bags/h (Determined by packing material)
3. Applicable packing materials:Nylon film with thread and label.
4.The precision volumetric metering way very easily in the transformation of filling material. Electronic scale metering can be collocated according to the material.
5. Human-Computer Interface,Omron PLC control,adopted the Panasonnic double Servo motor to make the bag .supplied complete setting functions.easy operating
6.Main motor overload protection device
7. Packaging material tension automatic adjustment device
8. The machine will automatically stop when Issued the warning
Technical data
item |
Content |
capacity |
30-50bags/Min (Determined by packing material) |
Filling precision |
≤±2% (Determined by packing material) |
Bag size |
60-80(W)*40-80(L)mm |
Packing film |
120mm,140mm,160mm |
sealing type |
Triangle bag and flat bag |
Filling range |
2-10ml |
film thickness |
0.04-0.06mm |
Packing material |
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials |
Rolled outer diameter |
≤400mm |
Rolled paper core inside diameter |
76mm |
air consumption |
0.6Mpa 0.4m3/min |
total power |
2.2KW |
Power |
Single 220V 50HZ |
air compressor |
less than 1 cube |
Dimension |
780× 940×1800mm |
