Specifications
1. Automatic completion of all the packaging process2. Superior quality with reasonable price
3. high speed, CE

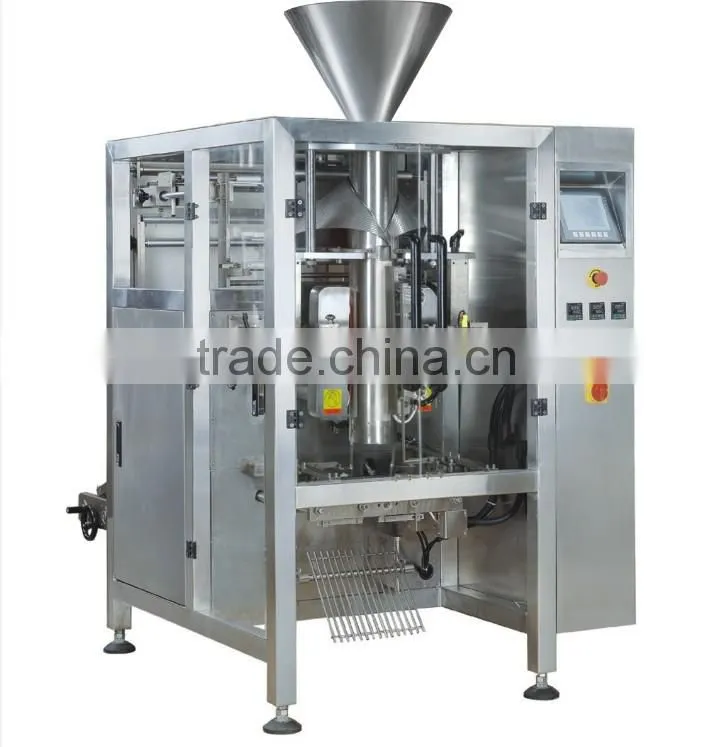

Automatic Corn Flour Packing Machine

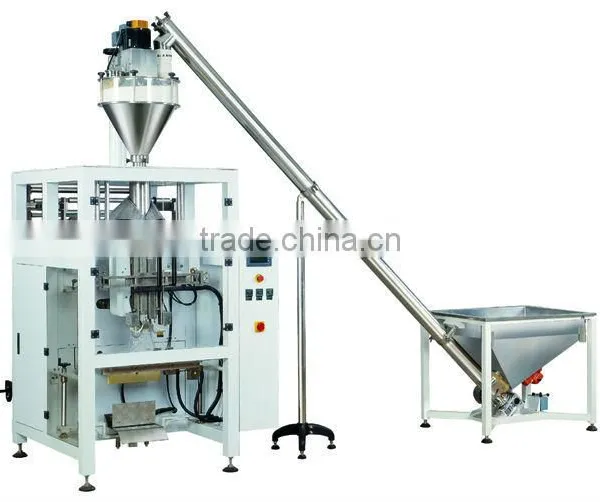

Configuration:
| Configuration | Host machine * 1 (Frame Carbon steel, Product contact stainless steel) |
|
Screw measuring device * 1 (Stainless steel) | |
|
Screw feeder * 1 (Stainless steel) | |
|
Material tank * 1 (Stainless steel) | |
| Product conveyor * 1 (Carbon steel and PP) | |
| Date printer * 1 |
1) It owns the characters of advanced design, reasonable structure, precise producing, easy anto adjust operation and repair ,save time and labor
2) PLC,servo system ,screen and other control parts are worldwide famous brand which are of stability and reliability ,horizontal sealing and vertical sealing are of high stability and reliability due to being driven by pneumatic parts.
3) Imported servo film system ensuring accurate location, high quality synchronous film operation with high efficiency and low failure rate.
4) Colorful high precision touch screen, easy and quick setting and operation;
5) Self failure diagnosis, clear failure display
6) High sensitive color optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
7) Self temperature control PID make more material proper to be packed ,display the amount on the screen clearly.
8) Easy to be matched with many calculating device
9) All the controls are achieved by software, convenient for function adjusting and upgrading.
Applications:
Suitable for automatic packaging of various kinds of powder: Milk,Coffee, chili powder, spices, soap powder, curry powder etc...
Model |
420F |
Film width |
MAX.420mm |
Bag size |
W:60-200mm L:30-300mm |
Film thickness |
0.04~0.08mm |
Measuring range |
150~1500ml |
Packaging speed |
40~50bag/min |
Power |
220V 50/60Hz 2.2Kw |
Packing material |
BOPP/CPP, BOPP/PE, PET/AL/PE, NY/PE, PAPER, PLA, NON-WOVEN FABRICS |
Size |
L1217*W1015*H1343 |
Net weight |
650kg |
Filling weight |
10-5000g |
Filling accuracy |
±1% |
Filling rate |
40-120 times/min (theoretical speed) |
Power supply |
380v/220v 50/60Hz |
Total powder |
1.9kw |
Total weight |
200kg |
Size(mm) |
1060*600*1100mm |
Hopper volume |
45L |
Deliver height |
0.9-1.5mm |
Capacity |
1 m3 per hour |
Dimension(mm) |
1600L*500W*1100H |
Which is the one you need?
Foshan SUK Precision Machinery CO., LTD. has been specialized in designing, R&D and manufacturing kinds of packing machine for more than 6 years. Ten series of products have been widely used in food, chemical, pharmaceutical, commodity, industrial and agricultural products, achieving automatic metering, feeding, bag making and conveying thus greatly improving the efficiency.
Product Series: Horizontal packing machine, vertical packing machine and full automatic line.
We promise you rate and technology, heart and sincerity!
