Specifications
cooking oil packing machine1.Full automatic
2.CE certificate
3.Panasonic PLC control
4.High configuration
Automatic cooking oil pouch packing machine
L series-Large vertical liquid packaging machine
- What is the Features of our packing machine?
1.New design with perfect fashion, more reasonable structure, more advanced technology.
2.Imported PLC control system, colorful touch screen, easy operation, intuitionist and efficient.
3.Imported servo film drawing system and color sensors, accurate positioning, and superexcellent capability for complete machine, perfect packaging.
4.With auto warning protection function to minimized loss
5.high precision, high efficiency.
6.The machine completes the whole procedure of feeding, measuring, bag making, date printing, air charging (exhausting), outputting.
7.Suitable for various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
8.Suitable for packing simple, semi-viscous, high-viscous liquid.
- What is the Configuration of our packing machine?
1. Host machine
2. Pump
3. Products conveyor
- What is the Option of our packing machine?
1.Two synchronous belt device
2.angle fold device
3.automatic rectifying device
4.hole-punching device
bag device
- What is the Applications of our packing machine?
Suitable for general form, semi-viscous form, highly viscous liquid materials such as shampoo, facial cream, oil, sauce, jam, etc.
- What is the Specification of our packing machine?
MODEL |
SL-420 |
SL-520 |
Max. Film width |
Max.420mm |
Max.520mm |
Bag length |
80~300mm |
80~350mm |
Bag width |
60~200mm |
50~250mm |
Packaging speed |
5~60bag/min |
5~60bag/min |
Measuring range |
150~1500ml |
150~2000ml |
Film thickness |
0.04~0.08mm |
0.04~0.08mm |
Power |
220V 50/60Hz 2.2Kw |
220V 50/60Hz 2.5Kw |
Size |
(L)1217*(W)1015*(H)1343mm |
(L)1510*(W)1260*(H)1600mm |
Net weight |
650kg |
680kg |
Packing material |
BOPP/CPP, BOPP/PE, PET/AL/PE, NY/PE, PAPER, TEA FILTER PAPER, PLA, NON-WOVEN FABRICS |
|
Pump type |
Small liquid pump |
Midsize liquid pump |
Large liquid pump |
Filling range |
30~250ml |
50~1000ml |
100~5000ml |
Packaging speed |
10~30bag/min |
8~25bag/min |
6~200bag/min |
Accuracy |
±1% |
±1% |
±1% |
Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
Size |
(L)1000*(W)560*(H)1550mm |
(L)1280*(W)660*(H)1650mm |
(L)1000*(W)560*(H)1550mm |
Auger filler weight |
55kg |
75kg |
80kg |
- Product Photos

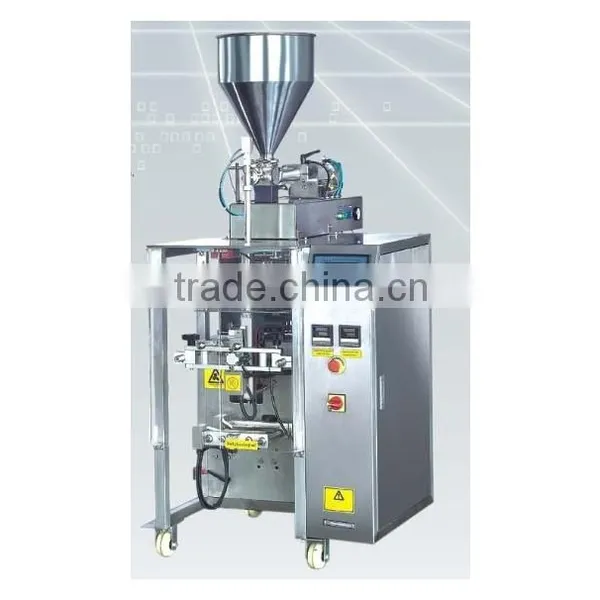

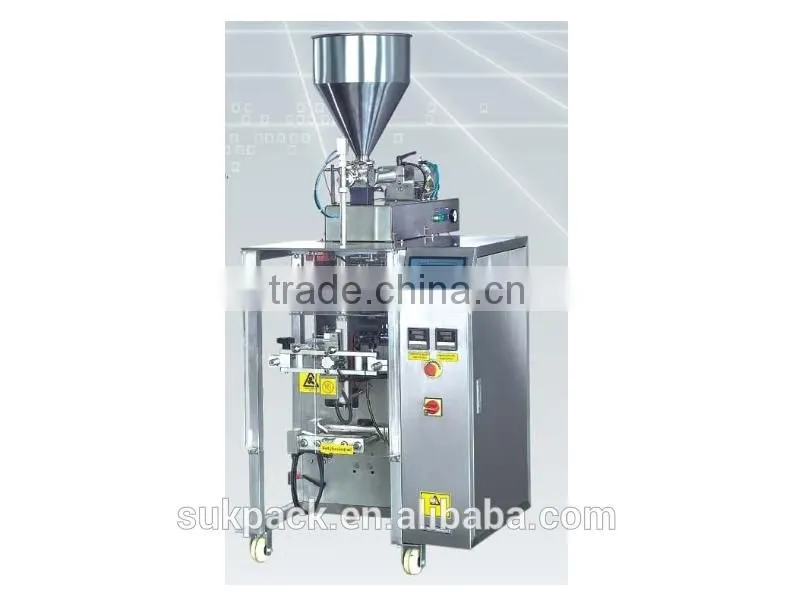

Main picture of cooking oil packing machine SL-420
Sample of Packaging bag
- Packaging & Shipping
- Export Details
1. Delivery time: about 20 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Foshan Port GuangDong Province

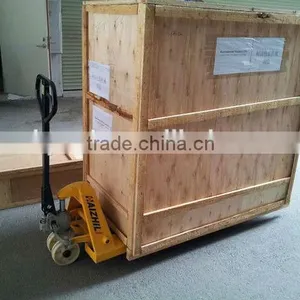

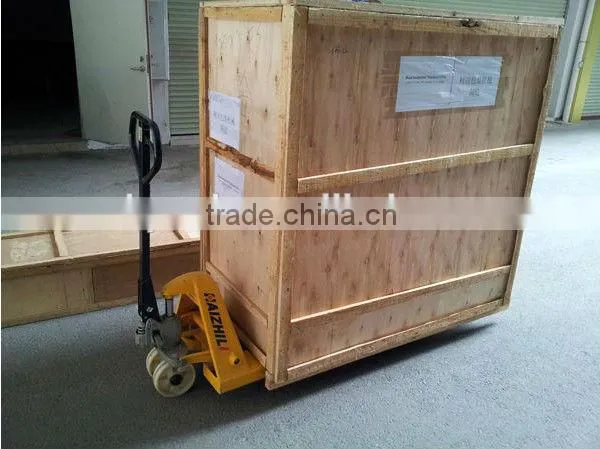

3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and
engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodationand salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including
providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.

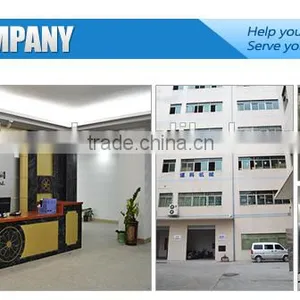

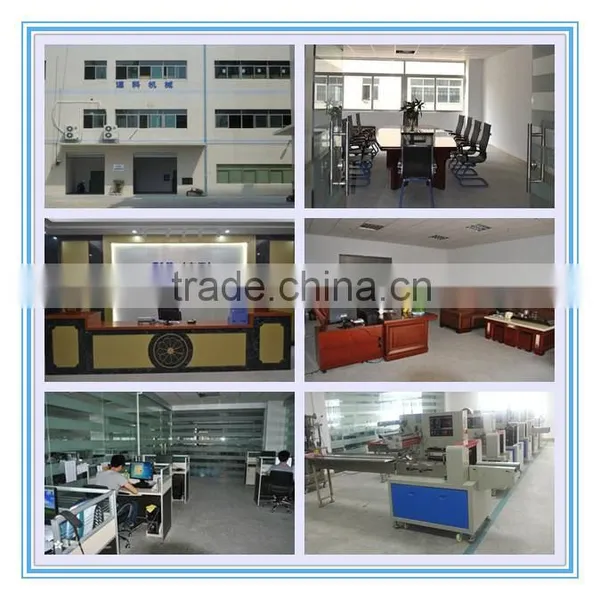

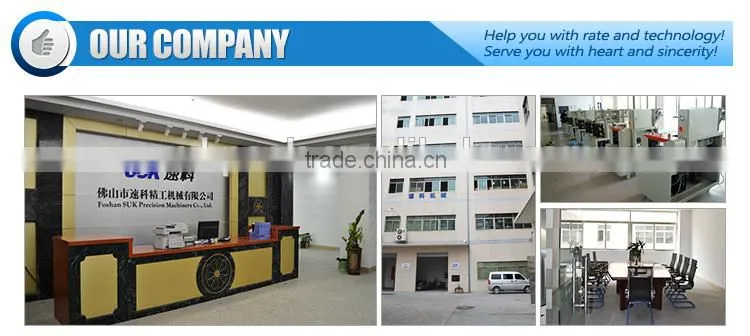

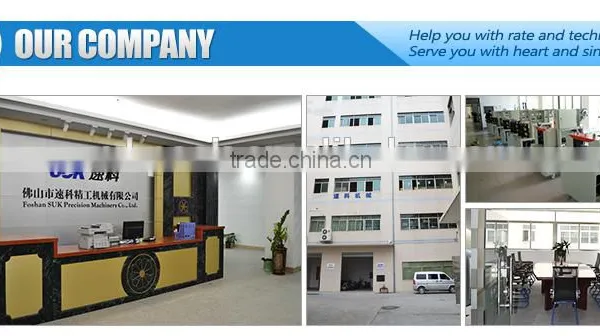

- Company View
- Quality Control
Two different quality controlling way:
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.

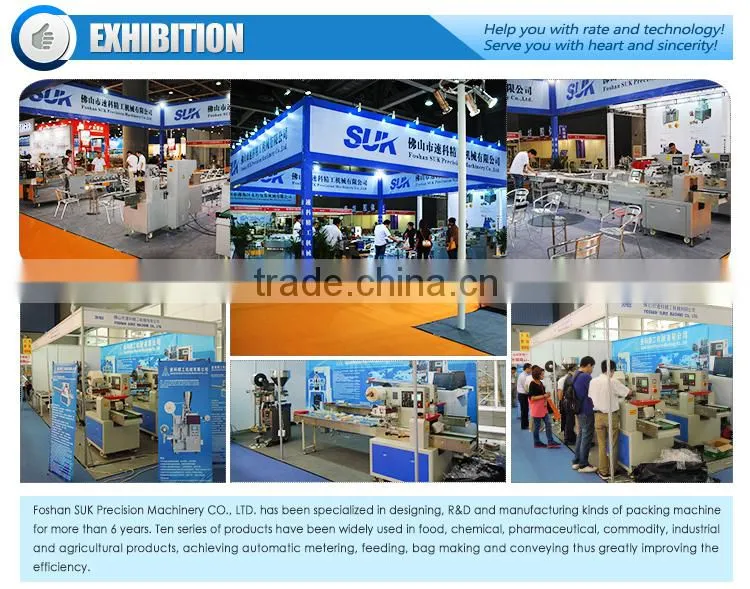

- Our Exhibitions
- Why choose us?
1.Video will be provided to customers.
2.Instruction book with every set of machine
3.Quick response to any question about the machine;
4.Competitive price as direct manufacturer
5.Superior quality
6.Best after-sale service
- What is our Basic Services?
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5.Free training, Free 1 year warranty
- What is Our Advantages?
1. Rapid response on any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality.
