Vertical/plastic roll film/grain packaging for 0.5kg-1kg
Features:
The machine complete the whole procedure of feeding, measuring, baging, date printing, charging(exhausting), product out-putting automatically.
High preision, high efficiency without crash the materials
Applications:
It's suitable to use in packing the high accuracy and easy fragile material , such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hard wares, medicine, etc.
A: basic packing machine
I. The scope of packaging
It's suitable to use in packing the high accuracy and easy fragile material, such as: puffy food , crispy rice, potato Chips , snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares, etc .
II. The major performance and structural feature
*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
* minimize the loss with complete automatic warn protection function;
*supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making.
*The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
Technical Parameters:
Model |
SL-320 |
SL-398 |
SL-420 |
SL-520 |
SL-620 |
SL-720 |
Speed |
Max 70bags /min |
Max 60bags /min |
Max 80bags /min |
Max 50bags /min |
Max 45bags /min |
Max 40bags /min |
|
Bag size |
Width:50-150ml |
Width :50-300ml |
width:50-300ml |
Width:80-350ml |
Width:100-300ml |
Width:100-350ml |
Length:80-200ml |
Length:60-200ml |
Length:60-200ml |
Length:80-250ml |
Length:100-400ml |
Length:100-450ml |
|
Width of film |
320mm |
420mm |
420mm |
520mm |
620mm |
720mm |
Rang |
Max500ml |
Max 1300ml |
Max 1300ml |
Max 2000ml |
Max 3000ml |
Max4000ml |
Power |
220v 2kw |
220v 2.2kw 50-60HZ |
220v 2.5kw 50-60HZ |
220v 2.2kw 50-60HZ |
220v 4kw 50-60HZ |
220v 4kw 50-60HZ |
Film |
POPP/CPP,POPP/PE,BOPP/PE,PET/AL/PE,NY/PE |
|||||
Gas need |
0.6Mpa 0.25m3/min |
0.6Mpa 0.25 |
0.6Mpa 0.25m3/min |
0.6Mpa 0.25m3/min |
0.8Mpa 0.36m3/min |
0.8Mpa 0.40m3/min |
Size |
L1115×W800× H1370mm |
L1400×W970× H1600mm |
L1400×W970× H1600mm |
L1430×W1200× H1700mm |
L1340×W1580× H1950mm |
L1780×W1350× H2050mm |

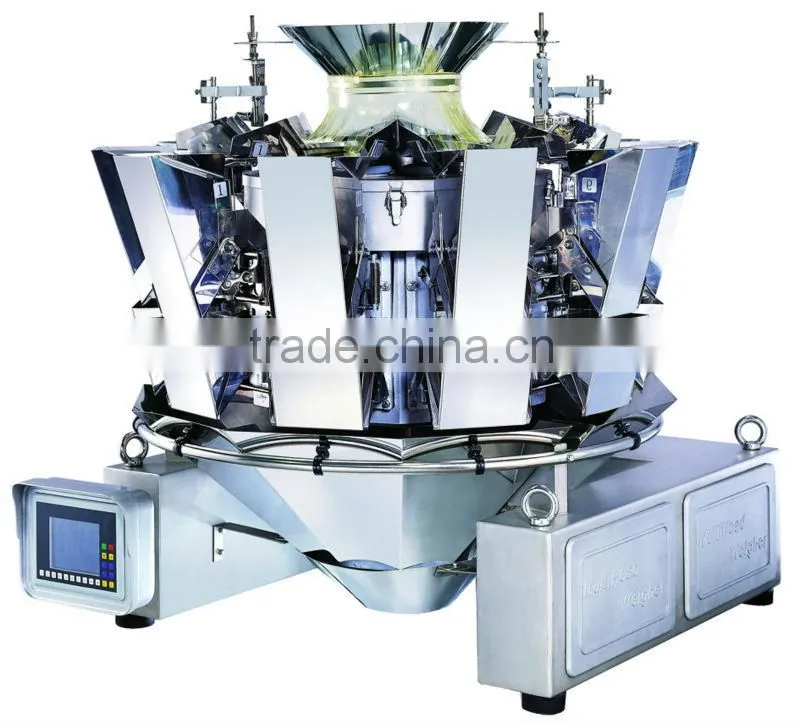

B: 10-heads combination weighter:
Features of 10- heads linear weigher:
Ten hoppers of high precision digital load cell . Microcomputer control system. adopting the double vibration feeder. The technology is advanced and easy operation . The metering hopper discharge easily. Fast, simple and maintain.

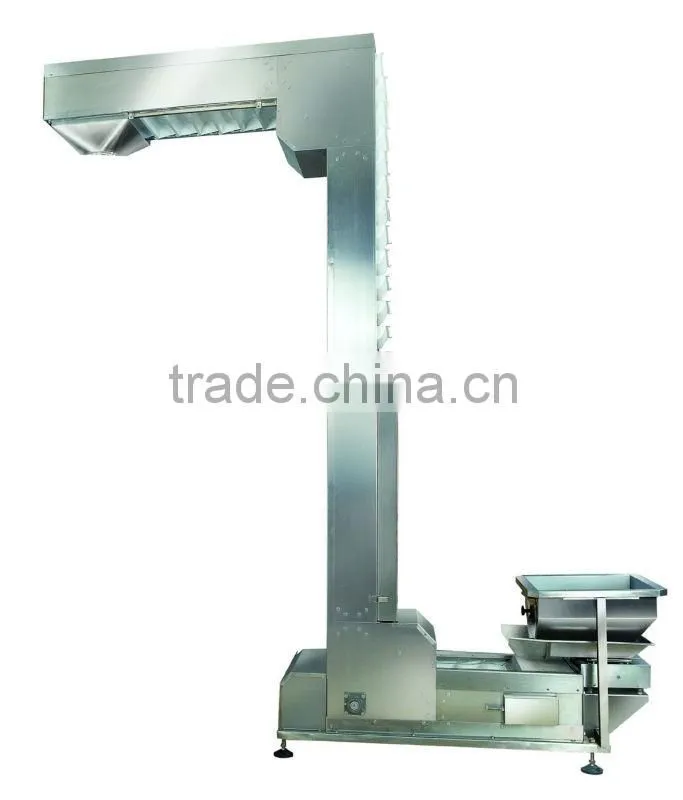

C: Z Type Elevator:
Applications:
the lifting conveyor is used for vertical elevating the granule products in the industries of grain, food, feedstuff and chemical . it can be combined with the vertical form-fill-seal machine with 10 heads combination weighter and packing machine to form food automatic filling with certain proporation system, which is widely used in food packing filed.

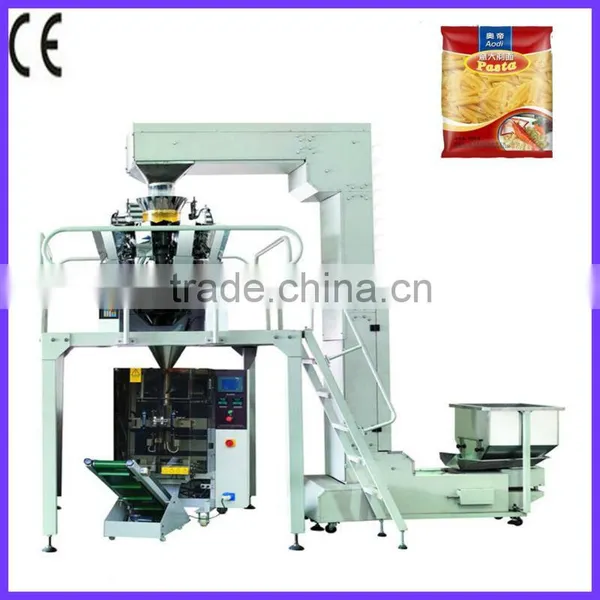

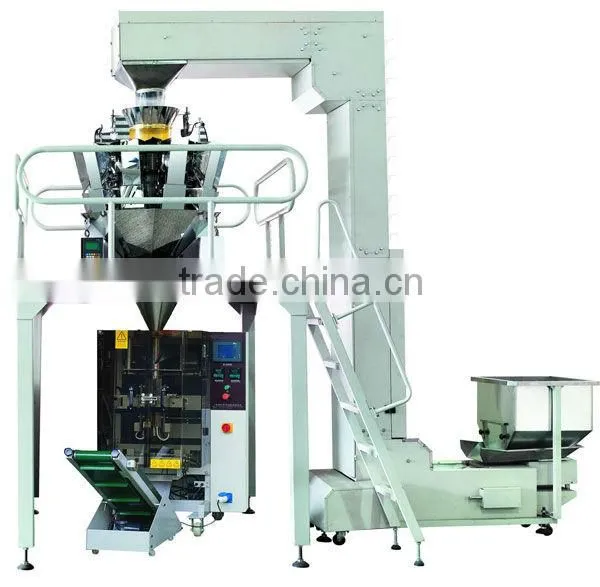

Machine Picture:
Packing Samples:
