Application of Oat cereal packing machine SZ-320
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Packaging various kinds of regular objects like biscuits pies ,chocolates,buead,instant noodles,moon-cakes,drugs,daily appliances ,industrial parts,paper boxes,plate,ect.
III. Optional device
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen
Technical Parameters:
| Type | SZ-250 | SZ-320 | SZ-350 | SZ -400 | SZ -450 | SZ-600 |
| Film width | 250mm | 320mm | 350mm | 400mm | 450mm | 600mm |
| Bag Length | 65-280mm | 65-330mm | 65-330mm | 130-400mm | 130-450mm | 130-450mm |
| Bag width | 30-110mm | 50-160mm | 50-160mm | 50-185mm | 60-200mm | 60-280mm |
| products High | max.55mm | Max.55mm | max.60mm | max.80mm | max 90mm | max95mm |
| Packing speed | 40-230bag/mins | 40-230bag/min | 40-230bag/min | 30-180bag/min | 30-180bag/min | 30-150bag/min |
| Power | 220v 50/60HZ 2.4kw | 220v 50/60HZ 2.6kw | 220v 50/60HZ 2.6kw |
220v 50/60hz 2.6kw | 220v 50/60hz 2.6kw | 220v 50/60hz 2.6kw |
| Machine size | 3770x670x1450mm | 3770x720x1450mm | 4020x770x1450mm | 4020x800x1450mm | 4020x820x1450mm | 4020x90x1450mm |
| Machine Weight | 600kg | 700kg | 800kg | 900kg | 1000kg | 1100kg |
Electric detailed list:
No. |
Product Name |
Brand |
1 |
PLC |
Panasonic/Japan |
2 |
INVERTER |
Schneider |
3 |
7 inchTouch screen |
Wei Lun/Taiwan |
4 |
Intermediate Relay |
OMRON |
5 |
Switching power |
Meanwell/Taiwan |
6 |
solid state relay |
Schneider |
7 |
Temperature controller |
Yatai/Shanghai |
8 |
Photoelectricity colour code |
Aiset |
Quality Control:
Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
Basic Service:
1.Technical support
2.Loading inform
3.Video for debugging
4.Customer's require is welcome
5. Free training, Free 1 year warranty
Packing sample of Oat cereal packing machine SZ-320

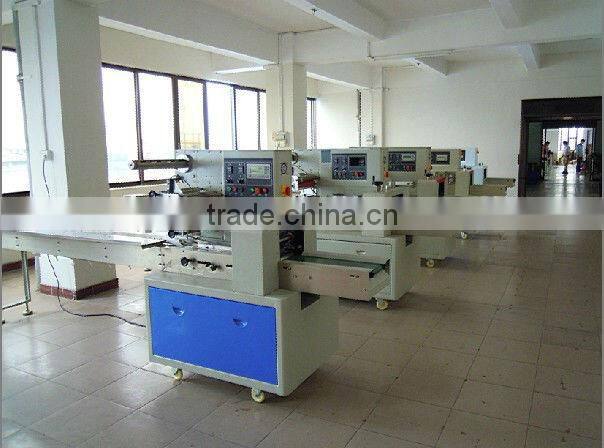

Machine Pictures:
