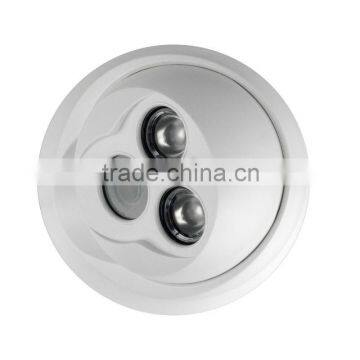

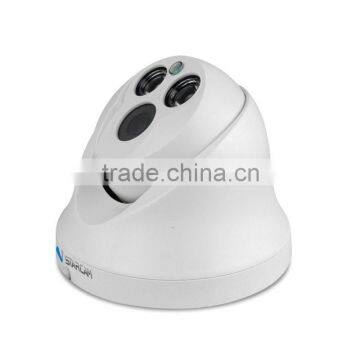

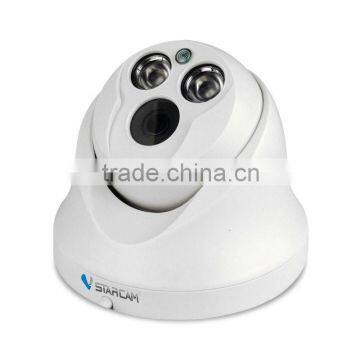

New H.264 PnP HD home security camera wired cheap dome camera

Model No.:C7812IP

Free DDNS

No need domain name, support dynamic IP.

Mobile Platform

No need to install software, Multi-channel monitoring and support alarm picture browsing.

Plug & Play

Plug & Play technology applied. High penetration rate.

UID Technology

UID scan technology applied, easy to operate, and highly confidential.

CMS

1,4,9,16,25,36,64,81-channel central management surveillance system, no user limitation.

 Centralized monitoring, remote recording, remote playback.

Core

Operation system

Embedded Linux OS

Control Protocol

ONVIF protocol,high interoperability

Processor

Hi3518C processor,built in ARM9 @Max. 440MHz and High-speed video co-processor

Video

Compression format

H.264 Baseline Profile @H.264 Main Profile@MJPEG/JPEG Baseline

Resolution/frame rate

720p/VGA/QVGA   30fps/25fps

Image adjustment

Brightness, Contrast, Saturation are adjustable

IR Control

Turn on IR, night vision works,IR,ICR will check automatically, Turn off IR,night vision closed,IR leds off,ICR works in fixed daytime Visual mode.

Sensor

1/4 720p Progressive CMOS sensor

Minimum illumination

1.0 Lux / F1.2

CMOS

support AWB,AGC,BLC

Sensor size

3.84mm×2.16mm

Video coding

Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture

Bit Rate

CBR/VBR,output range:128~4096kbps

 Lens/viewing angle

3.6mm/56.14°

Night Vision

Night vision

Dual IR-CUT Filter auto switch, 30pcs 850nmΦ5mm LED,15m IR distance

Network

Socket

10/100Mb   self-adaptable Ethernet slot

Network Protocol

TCP/IP,HTTP,RTSP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,P2P ect.

Online visitor

Support 10 online visitors viewing simutaneously

IP address

Dynamic IP and static IP address

Network adaptability

Can auto adjust stream and frame rate according to the bandwidth

Others

Use Enviroment

both indoor and outdoor

Power supply

DC12V±0.3V  Rated power:3.5W( IR ON)

Working temperature

Working temperature:-10~50℃,Working Humidity:<85%

RTP

Support RTP, auto time alignment after power failure.

Package size

165*165*85mm(L×W×H)

Weight

Gross:0.62kg:(Note:in kind prevail)

Accessories

Power adapter, user manual, warranty card,mounting bracket,screws.

Motion Detection

Can setup motion detection sensitivity

Alarm notification

E-mail snapshot, FTP upload alarm pic and video

System Requirement

Operating System

Win/XP/Vista/win7  IE5.0, NET4.5,firefox,chrome

Certificate

Certificates

ISO FCC CE RoHS

Only for reference
