T-8000B DMX SD card controller support standard DMX512 WS2811 with adress writer function
- 10000 Piece / Pieces per Month
- Shenzhen/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- SP107E Programmable RGB APP Music Led Pixel Light Stripe Controller for WS2812 WS2801 Dream Color Led Strip
- Gledopto Pro 5 IN 1 ZigBee and 2.4GHz RF Controllable LED Receiver GL-C-001P 12V-54V
- Philips SES LSM1010 Occ PIR WH
- Smart Home Zigbee Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LCL- ledcolourlight | Model Number: | LCL-M1-LPD6803+D705+D709+ WS2801+WS2803+SM16716 |
Type: | Manual Switch | Max. Load Power: | 3W | Voltage: | Other, DC5V-24V |
Product Description
T-8000B DMX SD card controller support standard DMX512 WS2811 with adress writer function
Brief introduction:
T-8000B DMX512 Controller is the output signal of international standard DMX/1990. It not only can control all the LED lights in the market as long as can receiving the standard DMX signal, but also can work with our DMX Decoder to control general LED lights without DMX512.
T-8000B DMX512 Controller is easy to operate with a LCD screen. available with wireless control and keying control on the changing modes, speed and brightness, automatic timing and more than 580 modes for your choices.
1. With LCD screen,easy to operate in showing all functions.
2.Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or
holiday.
3. 580 lighting modes such as, full 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color smooth and flow
and Meteor shower trailing, etc.
4. Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
5. Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
6. Output with international Standard signal DMX512/1990, can control 512 DMX channels( 170 full color RGB pixels)
7. Support different output ports like standard XLR-3,RJ45 and Green terminal. etc.
8. With the functions of anti-interference and automatic breakdown recovery.
Support chips:
Standard DMX protocol 250Kbps
Standard DMX protocol 500Kbps
UCS-DMX lights IC
UCS1903 1909 1912 High Speed
DMX512AP-N series IC
WS2821A series IC
Note: A single-IC simply pick and GND
Definition of Printing:
Application:
Night club, Disco, TV studio, Architectural facade lighting,Bridge lighting,etc.
It can achieve smooth playback controls on ordinary computers, also the basis of Ethernet can chieve same computer for control multiple displays. Edit multiple playback windows on the same computer which it can save resources. Better support for external video and audio input.

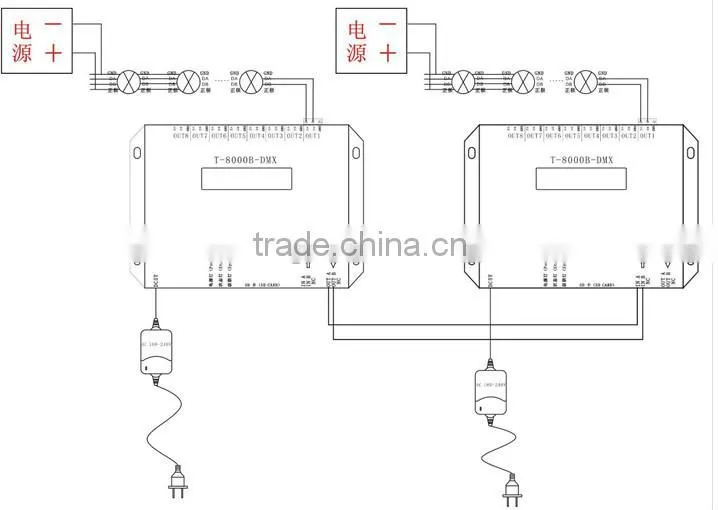

Connection guide:
Quality assurance:All the products will go through 5 checks during production.
Manufactuer's price:Factory direct sale,competitive price.
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information.
6.Samples can be delivered in 5 days.
Our products certificate:
Ledcolourlight Technology Co.,Ltd is a leading DMX LED products and solutions provider
with professional technology, excellent team, perfect management system and enterprise culture.
We work with raw resource suppliers American Cree, South Korean Samsung, Ever light, to realize
the sharing of the resource.
Our products mainly include entertainment lighting,architectural lighting and led controller.
DMX led vertical tube,DMX 3D ball,DMX RGB strip light,DMX module light and DMX digital bar are popular
products for nightclub, stage, and theater. Our DMX underwater/underground light,DMX digital tube,
DMX wall washer,and DMX flood lights are widely used for theme park, hotel, business center, city lighting ect
We insist on quality first and customer first philosophy,striving to provide products and first class service to
our customers.Ledcolourlight will constantly innovate and grow,
and truly realize the win-win Bureau case.
