Home > Products > Pillow Packing Machine > Horizontal Wrapping Packing Machine For Towel
Horizontal Wrapping Packing Machine For Towel
- 100 Piece / Pieces per Month
- Foshan
- T/T Credit Card PayPal
Product Details
Condition: | New | Automatic Grade: | Automatic | Usage: | Food Forming Machine |
Place of Origin: | Guangdong, China | Brand Name: | SUK | Model Number: | SK-250X/350X |
Voltage: | 220V | Power(W): | 2.4KW | Dimension(L*W*H): | (L)3920*(W)670*(H)1320mm |
Weight: | 500KG | Certification: | CE | Warranty: | wholelife |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

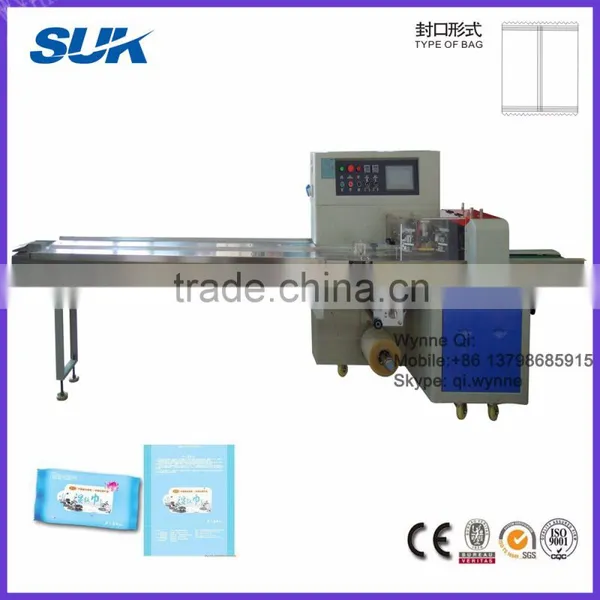

Horizontal Wrapping Packing Machine For Towel
Applications
Suitable for packing such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays, etc.
Specifications:
1. automatic, customizable, easy to operate
2. high quality and good price
3. high speed
4. CE
Main performance & structure characteristics
1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.
2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.
3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance
4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.
5. Highly sensitive photoelectric device tracks automatically and accurately.
6. Positioning stop function without sticking knife, cutting and wasting envelope.
7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.
8. The temperature of each seal is independent. PID control is suitable to various packaging materials.
9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
Technical Parameters
Model | SK-250X | SK-350X | SK-450X | SK-600X | SK-700X |
Film width | max.250mm | max.350mm | max.450mm | max.600mm | max.700mm |
Bag length | 65-280mm | 65-280mm | 120-450mm | 120-500mm | 120-600mm |
Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330mm |
Product height | max.45mm | max.65mm | max.80mm | max.110mm | max.110mm |
Film roll diameter | max.320mm | ||||
Power | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
2.4KW | 2.8KW | 2.8KW | 2.8KW | 2.8KW | |
Machine size(mm) | 3920x670x1320 | 4020x720x1320 | 4020x820x1450 | 4020x920x1460 | 4020x980x1480 |
Machine weight | 500kg | 550kg | 650kg | 680kg | 720kg |
Optional accessaries:
1. Date coder
2. 7 inch touch screen
3. Automatic punching device
4. Alternative sealing patterns and notch
5. Auto labeling device
6. Deoxidizer chute device
7. Gas flushing device
8. Alcohol spraying device
9. Auto feeder
Quality Control
Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.
Basic Service
1. Technical support
2. Loading inform
3. Video for debugging
4. Customer's require is welcome
5. Free training, one year warranty
Machine details
Packing samples
Wooden cases packing
After inspection,our machines are wrapped by plastic film and then carefully packed in wooden cases.
Our company information
Foshan SUK Precision Machinery Co., Ltd.,
is a professional manufacturer specilized in developing, designing, manufacturing, marketing, technical services, repairing packing machines.
Our company was established in 2008, located in Foshan city, Guangdong province, China.
Our machines are widely used in our daily life, such as,food,chemicals,cosmetics,hardware,medical,parts, etc.
With the high technique and absolute sincerity to sevice our customer, our products have been sold to all over the world, such as, United States, Africa, Malaysia,Russia,Thailand, Korea, Brazil, India, New Zealand, Turkey, South America, etc.
