Specifications
1.high speed2.Full-automatic packing machine
3.save time and film
4.CE
Horizontal Flow Packing Machine Price in India
I. Main features:
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Applications:
Packaging various kinds of regular objects like biscuits pies ,chocolates,buead,instant noodles,moon-cakes,drugs,daily appliances ,industrial parts,paper boxes,plate,ect.
III. Optional devices:
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen
IV. Technical Parameters:
Type |
SZ-250 |
SZ-320 |
SZ-350 |
SZ -400 |
SZ -450 |
SZ-600 |
Film width |
250mm |
320mm |
350mm |
400mm |
450mm |
600mm |
Bag Length |
65-280mm |
65-330mm |
65-330mm |
130-400mm |
130-450mm |
130-450mm |
Bag width |
30-110mm |
50-160mm |
50-160mm |
50-185mm |
60-200mm |
60-280mm |
products High |
max.55mm |
Max.55mm |
max.60mm |
max.80mm |
max 90mm |
max95mm |
Packing speed |
40-230bag/mins |
40-230bag/min |
40-230bag/min |
30-180bag/min |
30-180bag/min |
30-150bag/min |
Power |
220v 50/60HZ 2.4kw |
220v 50/60HZ 2.6kw |
220v |
220v 50/60hz 2.6kw |
220v 50/60hz 2.6kw |
220v 50/60hz 2.6kw |
Machine size |
3770x670x1450mm |
3770x720x1450mm |
4020x770x1450mm |
4020x800x1450mm |
4020x820x1450mm |
4020x900x1450mm |
Machine Weight |
600kg |
700kg |
800kg |
900kg |
1000kg |
1100kg |
Remarks |
Optional air filling device |
|||||
Configuration:
NO. |
Product Name | Brand |
| 1 | PLC | Panasonic (Japan) Schneider Siemens |
| 2 | INVERTER | Schneider (France) |
| 3 | Proximity switch | Omron (Japan) |
| 4 | 7 inch Touch screen | WECON (Taiwan) |
| 5 | Button Switch | Schneider (France) |
| 6 | Terminal Blocks | Weidmuller(Germany) |
| 7 | Intermediate Relay | Schneider (France) |
| 8 | Switching power | Meanwell (Taiwan) |
| 9 | Solid state relay | Schneider (France) |
| 10 | Temperature controller | YaTay (Taiwan) |
| 11 | Emergency Stop Switch | Schneider (France) |
| 12 | Two-position switch | Schneider (France) |
| 13 | Dynamo | Yongkun (Taiwan) |
| 14 | Encoder | PASO |
| 15 | Electric eye | YaTay(Shanghai) |
| 16 | Circuit breaker | MUNLAN |
| Disc feeding packing machine | ||
| 17 | Electric Eye | SICK (Germany) |
| 18 | Inverter | V.T.V-Beijing |
| 19 | Dynamo | Schneider (France) |
| 20 | Touch Screen and extension |
Honest (Guangzhou) |

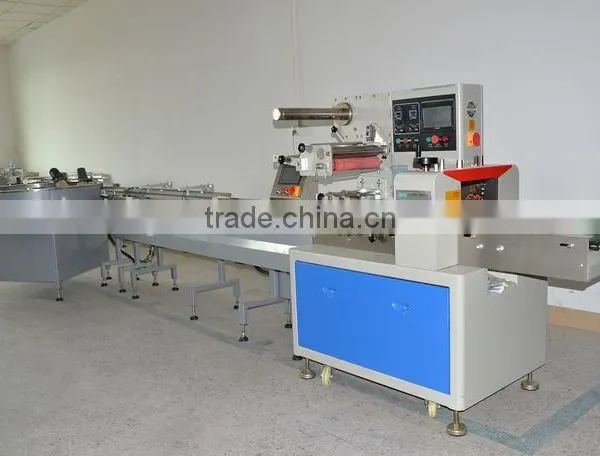

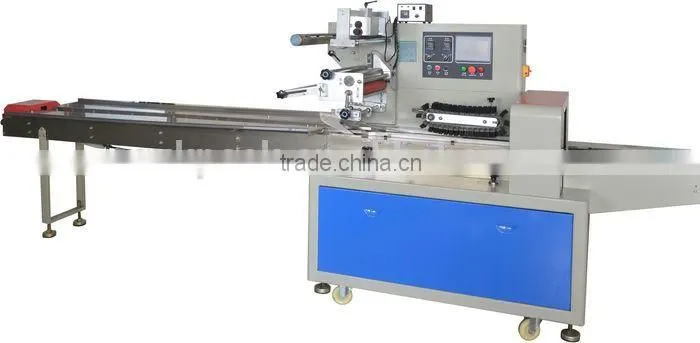

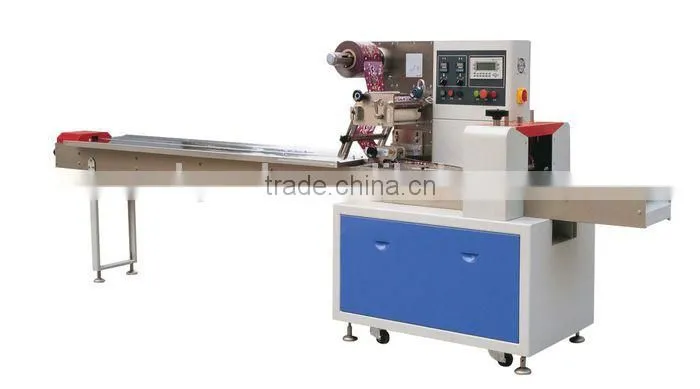

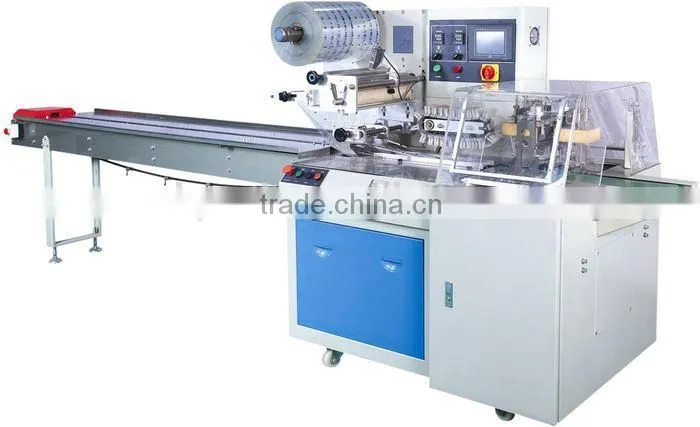

Main Picture:

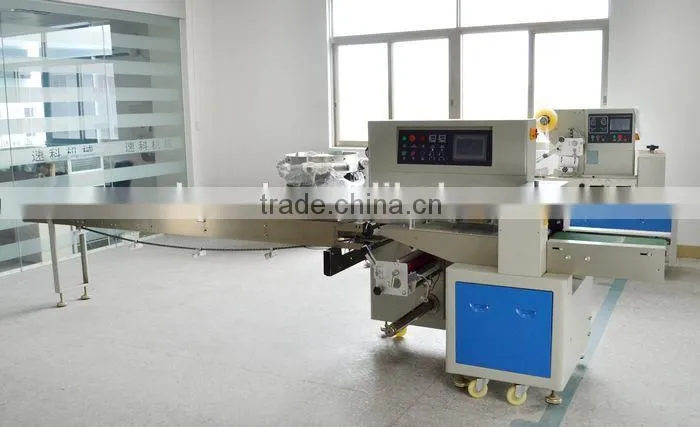

Multi-function:
Foshan SUK Precision Machinery CO., LTD. has been specialized in designing, R&D and manufacturing kinds of packing machine for more than 6 years. Ten series of products have been widely used in food, chemical, pharmaceutical, commodity, industrial and agricultural products, achieving automatic metering, feeding, bag making and conveying thus greatly improving the efficiency.
We promise you rate and technology, heart and sincerity!
