OEM & ODM IS WELCOMED

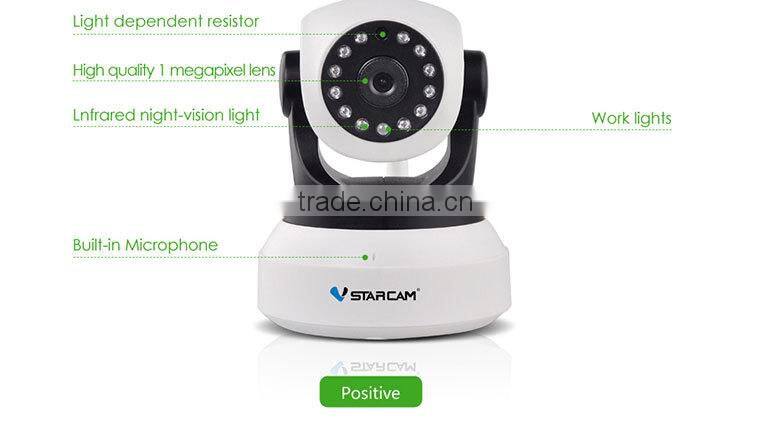

P2P 1 Megapixel Wifi Home HD 1MP Mini 720p hd ip cctv wireless camera
1. 3.6mm Lens, H.264,CMOS,1MP,720P.
2. Support Onvif, RTSP protocol, triple stream.
3. Support up to 64G TF card memory.
4. Built-in IR-CUT , 10m IR distance.

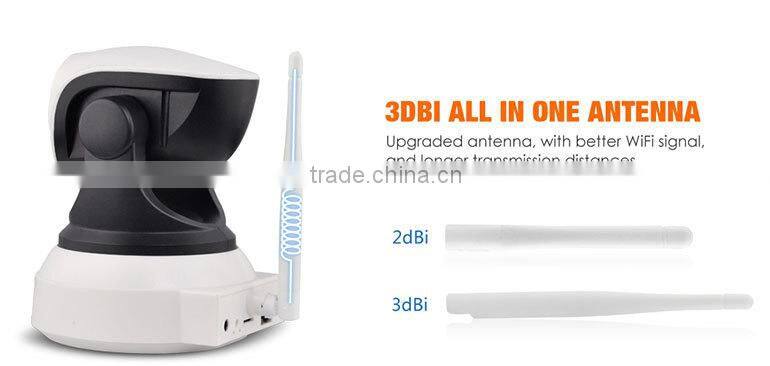

5. P:280°,T:70°,3dBi WiFi antenna.

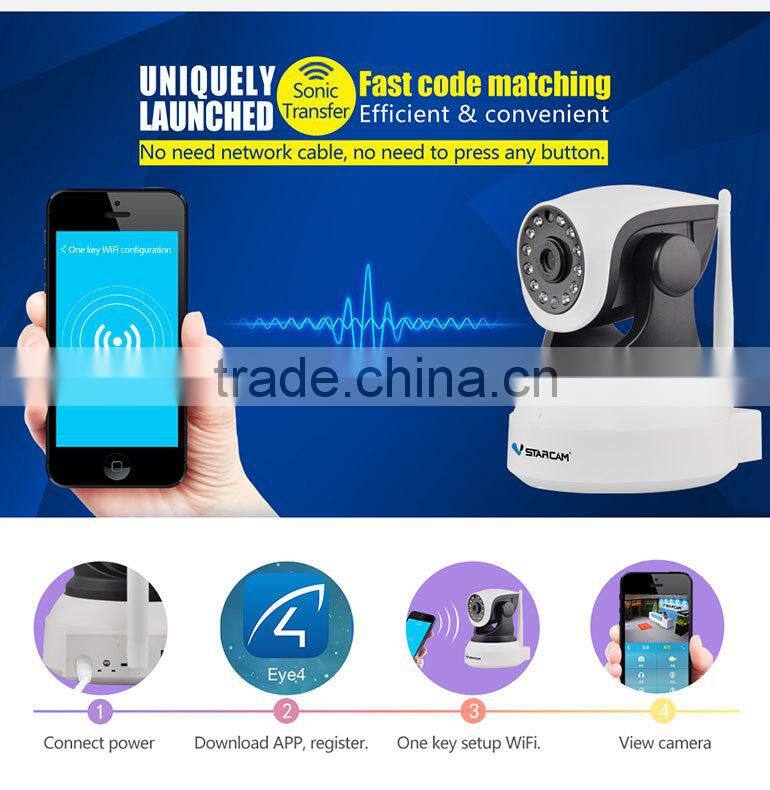

6. One key WiFi setup.
| Model :C7824WIP | ||
| Features | System security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP. | |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above) | |
| Local Storage | support up to 32GB MicroSD card ,24-hour loop recording. | |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. | |
| PnP | Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3,Click online camera to view the camera. | |
| Sever cluster | Using Amazon Cloud PnP servier cluster, intelligent application and super stable | |
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. | |
| Super Client | 1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , centralized surveillance, remote record and playback, alarm email ect. | |
| System | OS | Embedded Linux OS |
| Control protocol | ONVIF 2.0 protocol, high interoperability | |
| Video coding | Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture | |
| Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | |
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | |
| Video | Compression Format | H.264 baseline profile@levels:3.1/Motion-JPEG |
| Frame rate | 30fps/24fps(720p) | |
| Resolution | 720P(1280*720), VGA(640*480), QVGA(320*240) | |
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. | |
| Sensor | 1/4 720p Progressive CMOS sensor | |
| Minimum illumination | 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) | |
| SNR | ≥39dB | |
| IR control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. | |
| Electronic shutter | 1/50s(1/60s)-1/100, 000s | |
| CMOS | support AWB, AGC, BLC | |
| Lens/viewing angle | 3.6mm @F1.4/56.14° |
|
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance |
| Audio | Compression format | ADPCM/32kbps |
| Input | 1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone | |
| Output | 1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) | |
| P/T | P/T | Pan:355°,Tilt:120° |
| Preset Postion | suppor up to 15 preset postions | |
| Network | network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. | |
| wireless network security | WPS encryption | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| IP address | Dynamic IP and static IP address | |
| WIFI | WIFI 802.11 b/g/n | |
| Others | housing material | engineering plastics |
| Application environment | Indoor | |
| Rated Voltage | DC5±0.3V | |
| Temperature | -10~50 °C | |
| Power consumption | rated power:3.5W(IR opening )/maximum power:7W(P/T working ) | |
| Package size | 195x140x130mm (L×W×H) | |
| Weight | Gross Weight :755g(Note: in kind prevail) | |
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. | |
| Alarm | Motion Detection | Support motion detecting |
| System Requirement | System configuration | Win98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher |
| Certificate | Certificate | ISO FCC CE RoHS |
| Only for reference | ||

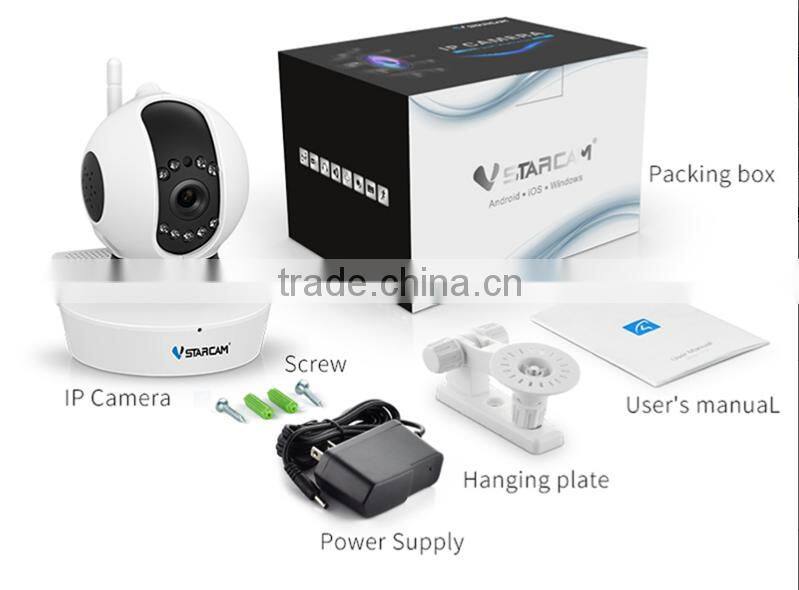

IP Camera*1pcs
Hanging plate*1pcs
Power*1pcs
User manual*1pcs
Screw*4pcs
Certificate*1pcs
Gift box*1pcs
Samples will ship out within 2 days !!
OEM Service: We could offer OEM and ODM services for our clients.
• Delivery Time: Sample order 3-5 working days, bulk order 7-15
working days.
• Delivery Term: ByExpress(DHL/FEDEX/TNT/UPS),By air,By Sea.
• Quality Warranty: One year warranty.
• We provide 4BS service: best quality, best price, best
delivery, best service.
• We have Sole Agents from different countries.
( Sole Agent in Korea, Russia, Spain, Ukraine, Thailand, Egypt, Canada,India, Indonesia, Pakistan, Australia, Singapore, Chile, Malaysia, Switzerland,LAOS,Myanmar, UK,Saudi Arabia, Brunei, Oman)
Good after-sales service:
---Refund within 7 days
---Replacement within 15 days
---1 Year warranty
Thanks for your kindly reading, hope everything is clear for u and look forward to further
negotiation with us as followed! Please send a message
Contact information:
Skype ID: John_VStarcam
Telephone: +86 755 33953177 Ext 816
Email: Sales19#
Shenzhen Vstarcam Technology Co., Ltd., is a professional network camera manufacturer, the company has many years experience in the surveillance industry R & D, strict quality control processes, professional service for customers to create the perfect video security monitoring overall solution program. Products include infrared waterproof camera, PTZ network cameras, gun-type network camera, network dome camera, high definition network cameras, IP cameras, wireless video cameras!
