RGB In-ground lights

Specifications

 Introduction

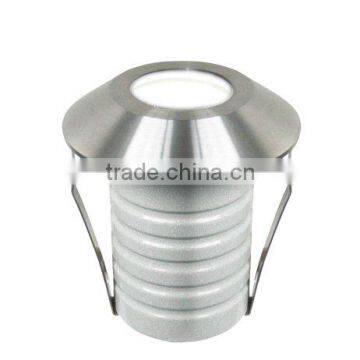

Made up of RED, GREEN and BLUE high power LED, the inground lights can realize more than 16,770,000 kinds of color output, and with great effect and colorful features. It adopts wires with 4pin connectors, and work with 4-wire and 3-loop controller,which can achieve Gradual Change, jumping and many good light effect.

Application

With IP67 rank and-20°C~45°C working temperature,the inground lights can adapt to a variety of indoor and outdoor temperature, humidity difference. They can be widely used in decoration of the buildings, stage, ancient buildings, shopping malls, hotel, cultural place and so on.

Technical parameters

Controlling way

The inground lights should be work with 4-wire and 3-loop controller,Simple DMX controller ( Please refer to the instruction for operation  ) With a remote controller, 4-wire and 3-loop controller can be chose single mode optical efficiency, total 13 kinds, and also it can stteing the address of the controller to accept DMX signal and control the brightness. However, Controller drive capability is limited,eg. The max data if the 12V 10A remote RGB controller can drive is 120W(=12V*10A)inground lights, and take  3.8W( max power ) 1*3W RGBinground light as another example, the controller just can drive 31pcs(120/3.8≈31). The maximum number of connections power of other inground lights calculated in this way.RGB amplifiers are needed when you want to connect more lights together.
