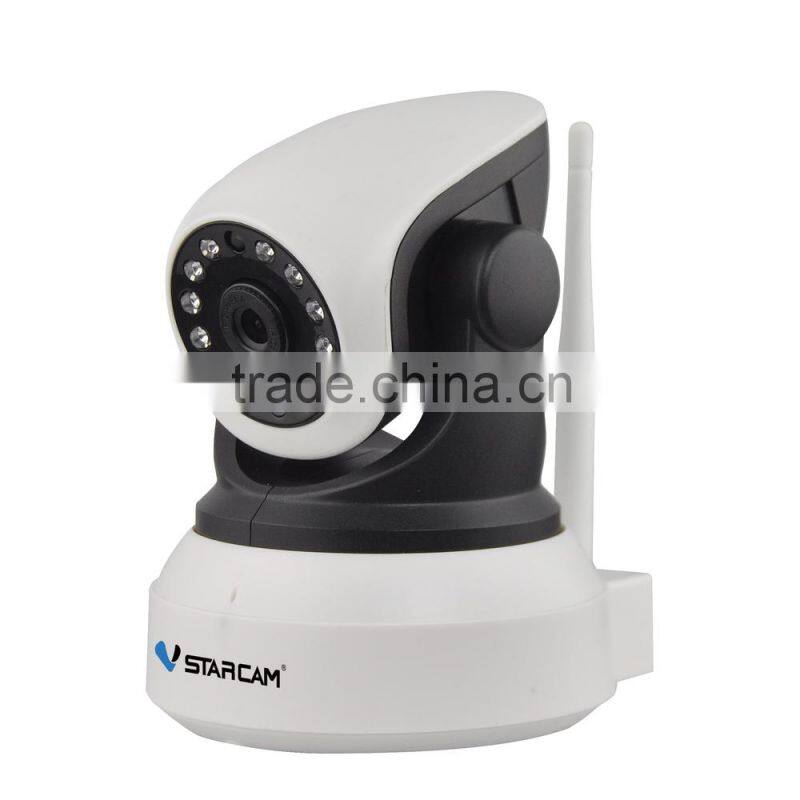

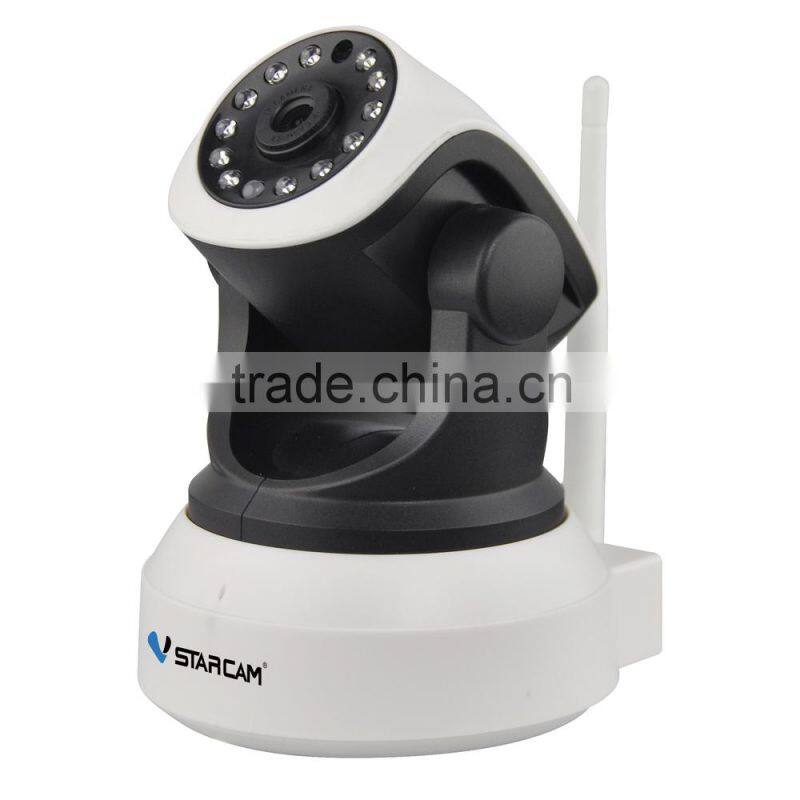

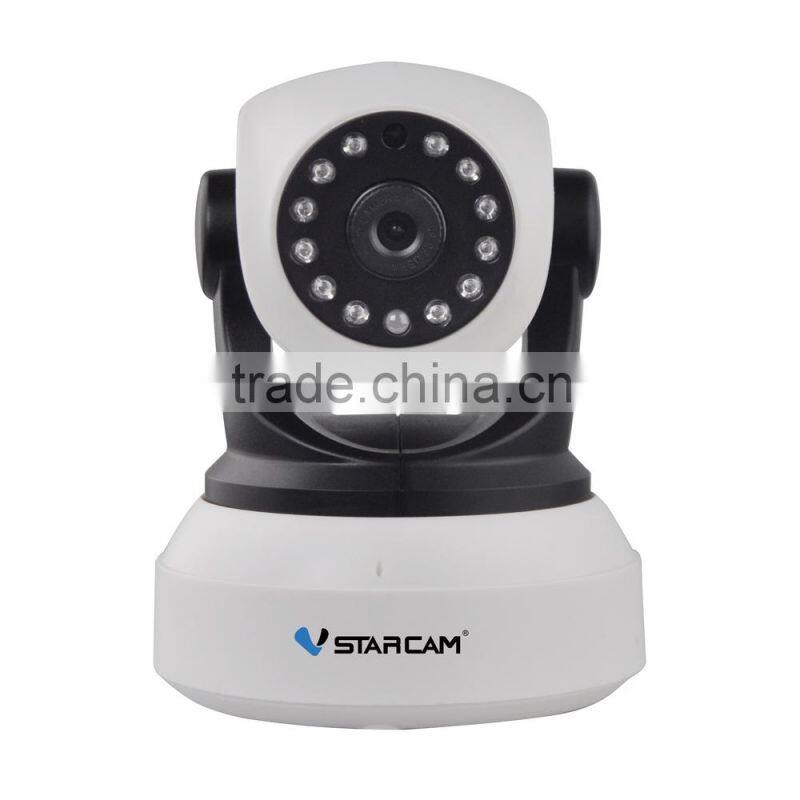

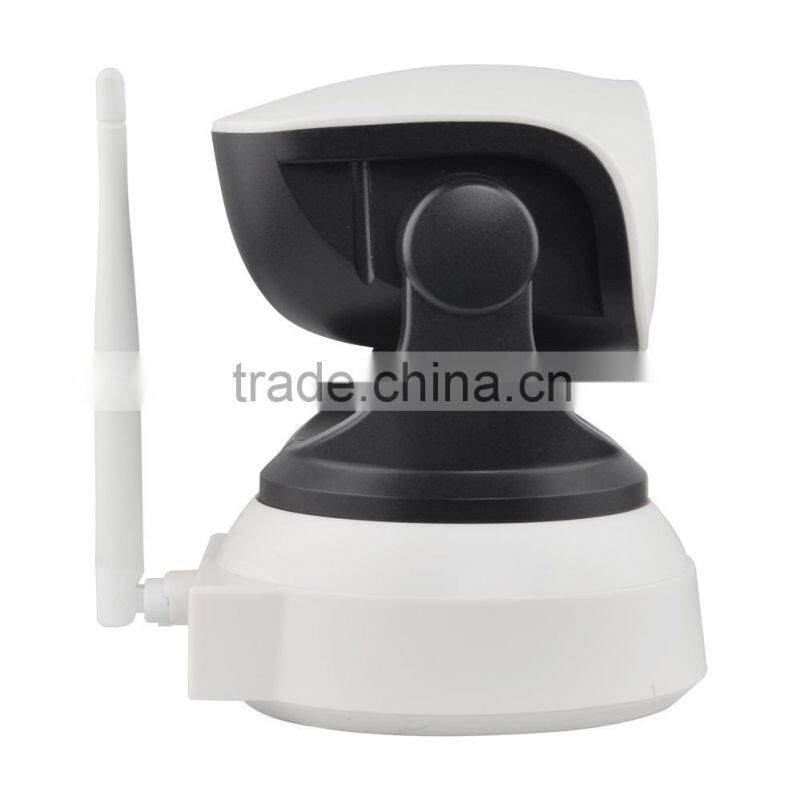

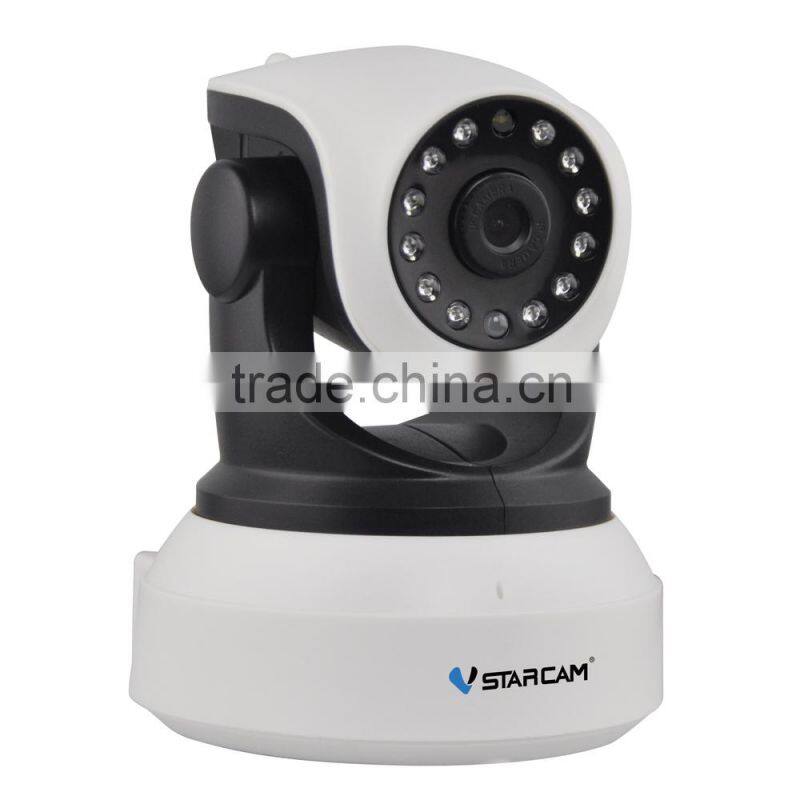

VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip

VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-1
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-2
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-3
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-4
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-5
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip thumbnail-6
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-1
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-2
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-3
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-4
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-5
VStarcam ONVIF 720P Pan Tilt Ir-cut Cmos Onvif Indoor H.264 Security Cctv Camera ip photo-6
US$ 35 - 45 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VStarcam
Model Number:
C7824WIP
Contact Supplier Request Quote Chat Now
Shenzhen Vstarcam Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name VStarcam
Model Number C7824WIP
Type Digital Camera
Style Box Camera
Sensor CMOS
Technology Other, NetWork, UID scan technology IP camera
Special Features Vandal-proof

VStarcam ONVIF 720P pan tilt ir-cut cmos onvif indoor h.264 security cctv camera ip

Product Description

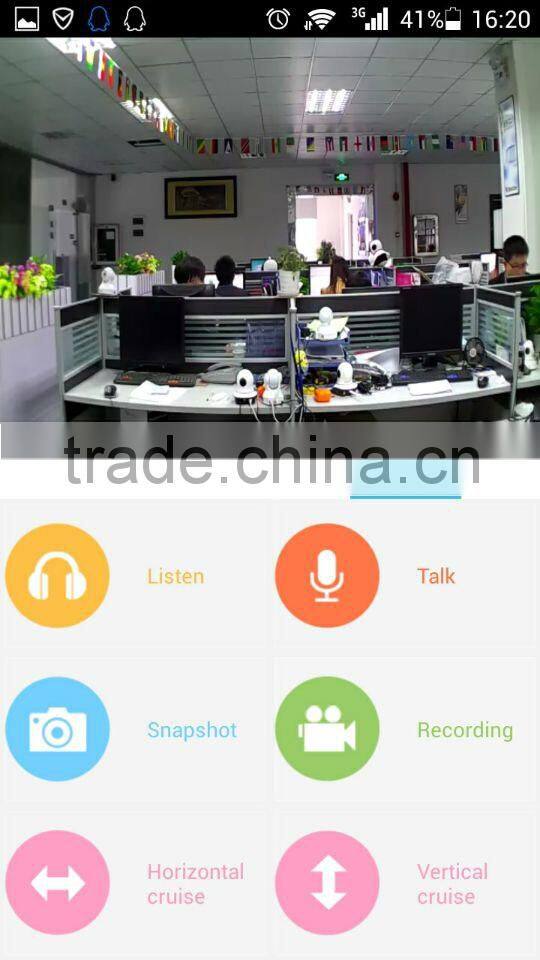

View more, do more, and protect more with the clarity and mobile control of VStarcam Pan & Tilt Day/Night wireless ONVIF wireless wireless webcam with sd card. Download the free EYE4 app and monitor your home or business – anywhere, anytime – on your smartphone or tablet. Experience confident clarity and total control with the ultra-smooth pan/tilt and two way audio functionality. Integrated motion-sensing and night-vision technology provides around-the-clock surveillance. With simple installation, you’ll have an effective, affordable home or business infrared digital camera solution up and running in no time.





Features



1. 12pcs LED, IR distance 10M. Lens 3.6 mm

2. Support ONVIF 2.0, RTSP protocol

3.  WPS one key setup WiFi, acoustic wave wifi setting

4. 720P,VGA,QVGA triple stream

5. Two-way audio, Remote Pan/Tilt rotate

6. Wi-Fi/802.11/b/g/n,support dynamic IP

7. Motion detection, email alert, FTP upload

8. Iphone, 3G phone, Smartphone supported

9. Multi-language, Firefox, Safari, Google browser

10. Pan:270 degree, Tilt: 80degree, auto cruise
11. Support 128GB TF Card





Specifications



Model No :C7824WIP
Features Features Software limit position, lower Pan Tilt failure rate
System OS Embedded Linux OS
System security Three level user authority management
Online users Support 4 online visitors simultaneously
DDNS Free DDNS
Control protocol ONVIF 2.0 protocol, high interoperability
Processor Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
Reset Long press for 15 seconds to restore back to factory settings
Collection Image sensor 1/4inch 720p Progressive scan CMOS sensor
CMOS Support AWB, AGC, BLC
Imaging area 4.40mm×2.52mm
SNR ≥41dB
Minimum illumination 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
Lens/viewing angle 3.6mm @ F1.4/56.14 degree
Night vision Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
IR control  IR turned on: night vision view enabled, infrared Ray, ICR auto detect.                                                             IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Video Compression Format H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding process Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
Resolution  720p/VGA/QVGA
Bit Rate CBR/VBR, output bit rate range:128~4096kbps
Max.Frame rate 25fps
Picture Adjustment Contrast, brightness, saturation, chroma are adjustable.
Audio Input Built in -48dB Microphone
Output Built in speaker(8Ω1W)`
Sampling frequency / width 8KHz/16bit
Compression format ADPCM/32kbps
Network Interface 10Base-T / 100Base-TX, RJ45 connector
Network Protocol TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.
WIFI WiFi802.11b/g/n
Antenna 3dBi antenna,stronger signal, more stable
Wireless network security One key setup WiFi
Storage Storage mode Local storage / client storage
Interface Micro SD/TF
Pan-Tilt P/T Pan:270°,Tilt:80°
Preset Postion  Support up to 15 preset postions
Limit method Software limit position, more accurate preset positions,lower Pan Tilt failure rate.
Alarm Motion detection Support motion detection
Alarm action Video upload via email/FTP server,Mobile App alarm
Physical index Rated Voltage DC5/2A±0.3V
Power comsumption Rated power:3.0W(IR ON)
Working environment Working Temperature:-20~70℃,Working Humidity 90%
Weight Gross Weight:330g (Note: in kind prevail)
Housing material ABS plastics
Camera size 145 x 110 x 125 mm (L×W×H)
Installation Wall mounting, ceiling mounting

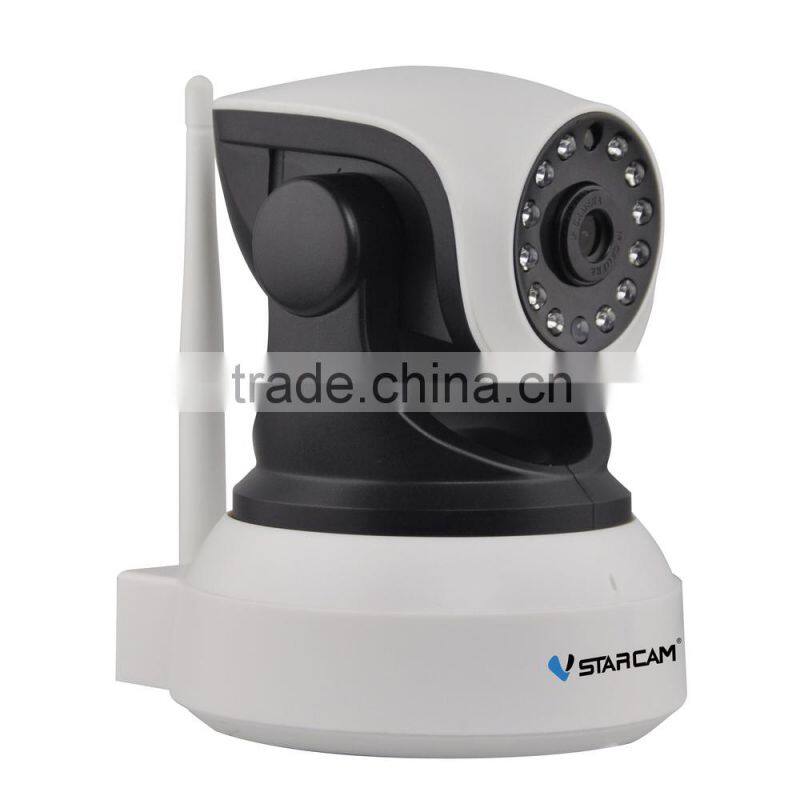

Detailed Images
