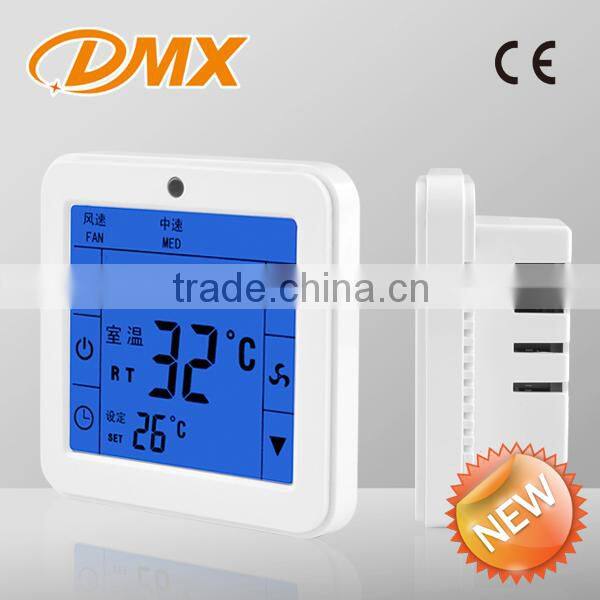

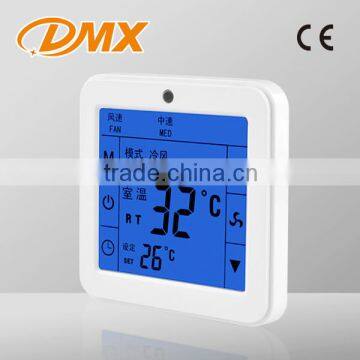

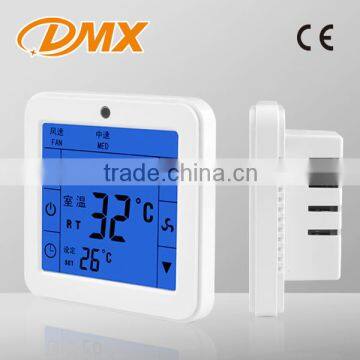

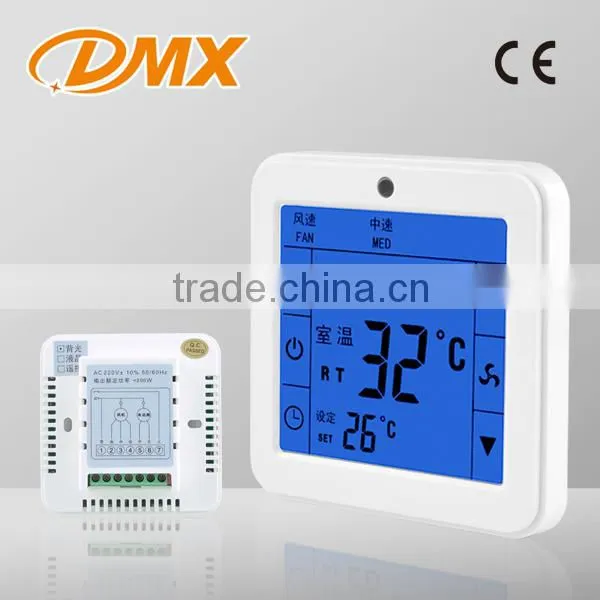

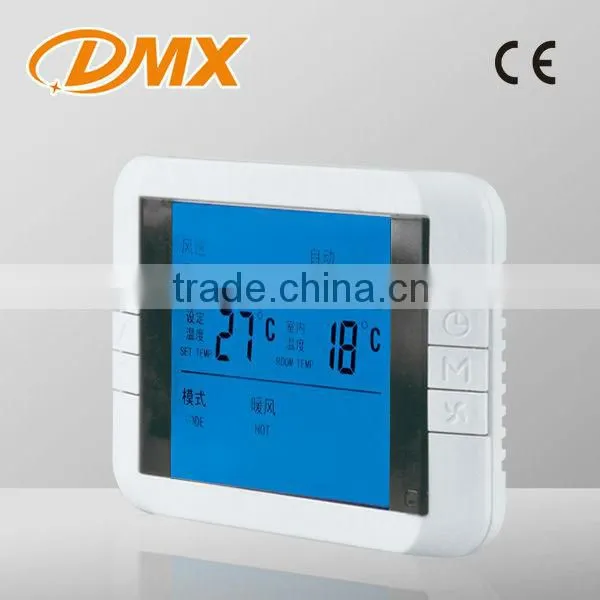

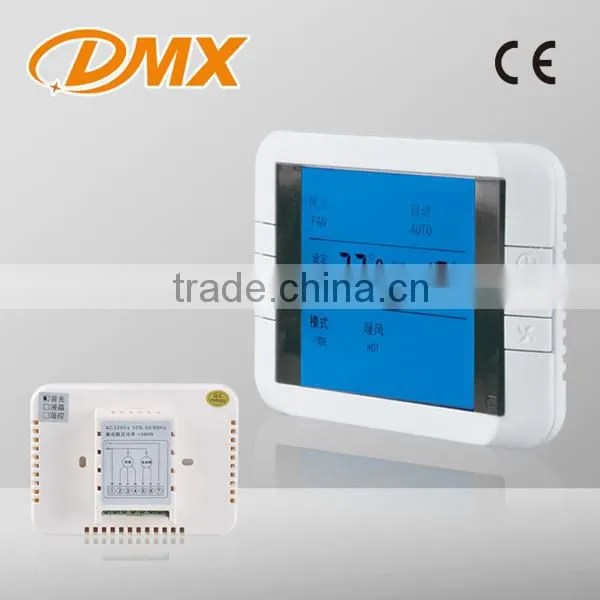

Sammax Thermostat Digital Room Lasted Touch Screen Thermostat In LCD Display

Production overview:

Sammax thermostat

XMK-016 series of digital thermostat,applying the most advanced and
international standardized microcomputer control chip,measures the
indoor temperature by the in-built NTC high-precision sensor.It can
always compare with the setting temperature,and automatically
regulate the heating/cooling air input or switch on/off the motorized
valve,so as to keep room in a certain temperature.

Alternative working modes table:

Digital Room Lasted Touch Screen Thermostat In LCD Display

1.Control the fan coil and motorized valve synchonously

(The fan stops as the motorized stops when the temperature reaches the set value.)

2.Control the fan coil and motorized valve.A synchronously

(the fan goes on working as the motorized valve stops when the temperature reaches the set value.)
3.Have clock or timing power ON/OFF function.
4.Have remote control function,if it is blank,it means thermostats do not have this function.
5.Have backlight function,if it is blank,it means thermostats do not have this function

Optional functions:

Sammax thermostat

1.Power on/off;

2.Wind speed adjustment;
3.Clock Timing
4.Mode;
5.Set temperature rise or adjust the set value of work mode;
6.Set temperature drop or adjust the set value of work mode.

Operating process of tools:

Sammax thermostat

1.It is respectively automatic wind,high speed wind,medium speed wind,

   and low speed wind in turn.
2.In the state of automatic wind,themostats will compare the indoor

3.Step 8:Slightly press the underside corners,block the sheel and accomplish the installation.

Malfunction disposal:

Sammax thermostat

Statement:Only professional technical personnel can maintain the products of our company.

Cautions:

Sammax thermostat

1.Please connect wires in strict compliance with the installation wiring diagram;

2.Please install a thermostat correctly in strict compliance with the installation diagram
3.Do not pull the cable forcibly,or it may be damaged;
4.Do not squeeze the LCD or scratch the LCD surface during the installation;
5.During the installation,do not knock those electronic components on the circuit board,

and do not drop or deform the back cover
6.If hard plastic lines are used during the installation,do bend it into a appropriate angle firstly
7.Do not drop it into construction mud..

Technical data :

The products show:
