Cell Phone Controlled Remote Camera, Body Cam Rohs Conform

Cell Phone Controlled Remote Camera, Body Cam Rohs Conform thumbnail-1
Cell Phone Controlled Remote Camera, Body Cam Rohs Conform thumbnail-2
Cell Phone Controlled Remote Camera, Body Cam Rohs Conform thumbnail-3
Cell Phone Controlled Remote Camera, Body Cam Rohs Conform photo-1
Cell Phone Controlled Remote Camera, Body Cam Rohs Conform photo-2
Cell Phone Controlled Remote Camera, Body Cam Rohs Conform photo-3
US$ 48 - 58 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VStarcam
Model Number:
C7838WIP-B
Contact Supplier Request Quote Chat Now
Shenzhen Vstarcam Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name VStarcam
Model Number C7838WIP-B
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Other

cell phone controlled remote camera, body cam rohs conform



cell phone controlled remote camera, body cam rohs conform

Key Features

C7838WIP-B HD Wifi IP Camera,Upgraded Version,Same Price, Better Value!Multi stream ONVIF/RTSP Protocol!

 •  H.264 compression format, CMOS 1.0 MegaPixel.

 •  Support ONVIF/RTSP protocol.

 •  Hi3518E chipset micro-processor.

 •  720P, VGA, QVGA triple stream.

 •  4-Channel real time view in smartphone APP.

 •  3.6mm lens, 12 LED lights, 10m night vision.

 •  Built-in IR-Cut filter, no color cast, better night vision

 •  Built-in microphone and speaker, two way audio, excellent cavity design, loud intercom.

 •  Support up to 64G Micro SD card storage, loop recording.

 •  Pan Tilt , P:355°, T:120° , auto cruise

 •  Support up to 15 preset positions, motion detection alarm.

 •  Support dynamic IP, WIFI, IEEE 802.11 b/g/n

 •  Support iOS and Android.

 •  Vstarcam exclusive design.

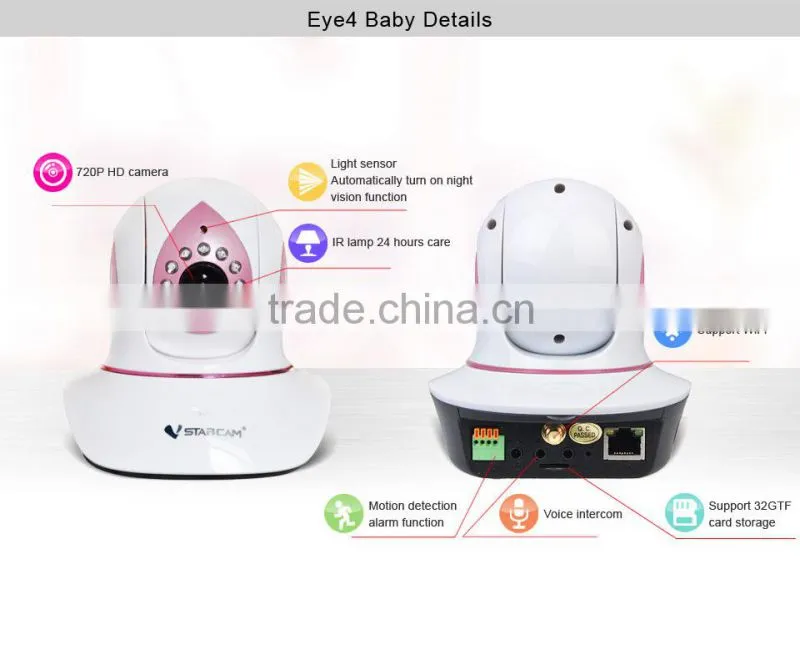

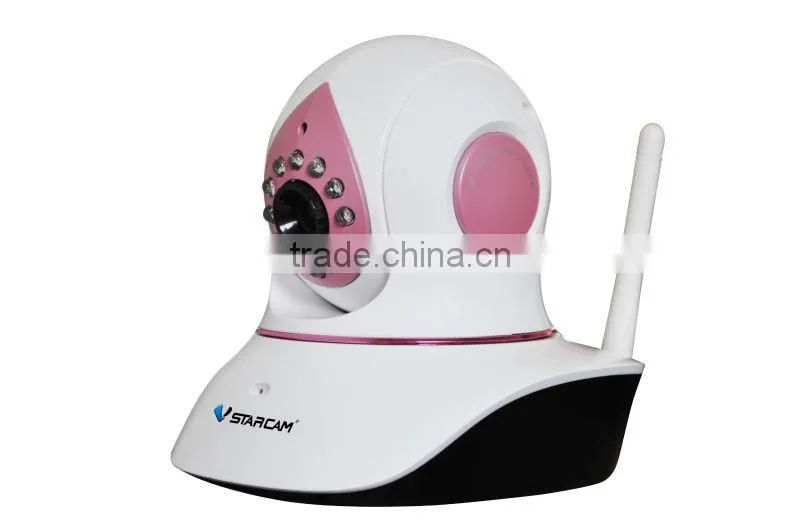

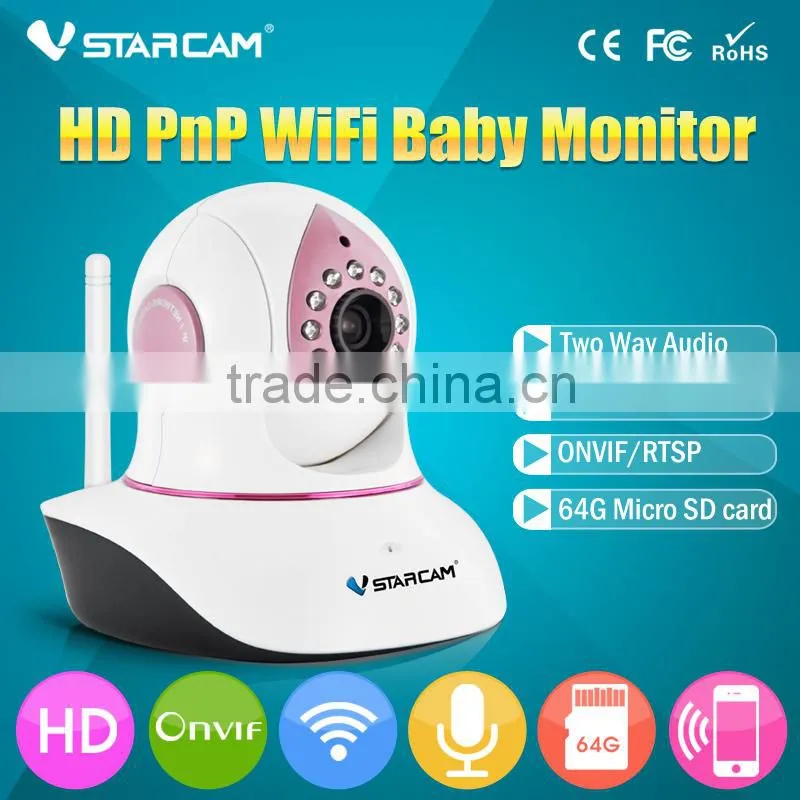

Detailed Images

 cell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conform

cell phone controlled remote camera, body cam rohs conform

cell phone controlled remote camera, body cam rohs conform

cell phone controlled remote camera, body cam rohs conform

Specifications



Model :C7838WIP-B

Features

System security

Account, password authority management

Free DDNS

Free DDNS, supports dynamic IP.

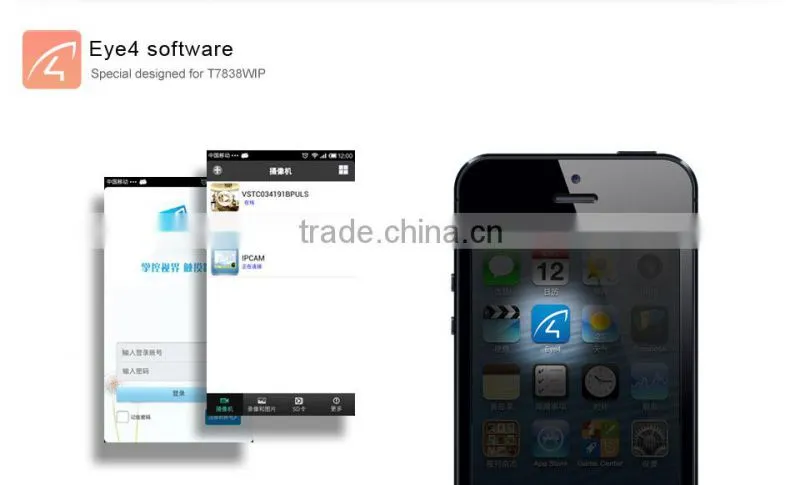

View by phone

Support HD pic  IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)

Local Storage

support up to 64GB MicroSD card ,24-hour loop recording.

Monitor Advantage

Support PC computer monitoring, smartphone multi-pic view.

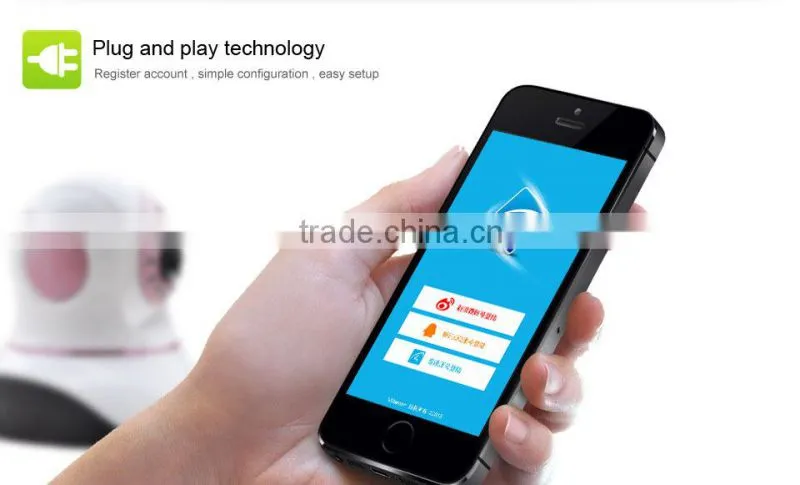

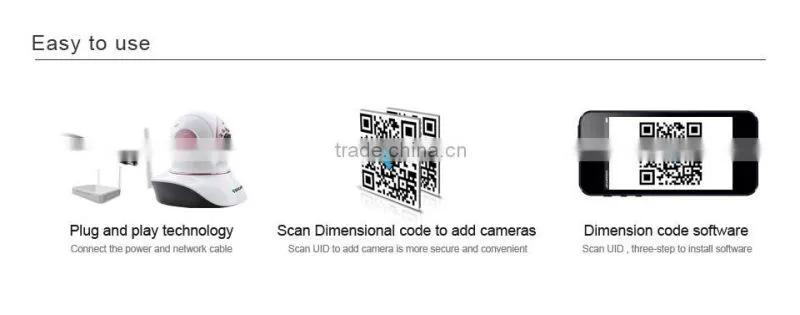

PnP

Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and

power adapter, 2.install APP, scan UID code to add camera.  3,Click online camera

to view the camera.

Sever cluster

Using Amazon Cloud PnP servier cluster, intelligent application and super stable

UID Technology

UID scan technology applied, easy to operate, and highly confidential.

Super Client

1,4,9,16,25,36, 64,81-channel central management software, no user number limitation ,

centralized surveillance, remote record and playback, alarm email ect.

System

OS

Embedded Linux OS

Control protocol

ONVIF 2.0 protocol, high interoperability

Video coding

Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture

Bit Rate

CBR/VBR, output bit rate range:128~4096kbps

Processor

Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor

Video

Compression Format

H.264 baseline profile@levels:3.1/Motion-JPEG

Frame rate

30fps/24fps(720p)

Resolution

720P(1280*720), VGA(640*480), QVGA(320*240)

Picture Adjustment

Contrast, Brightness, Saturation are adjustable.

Sensor

1/4 720p Progressive CMOS sensor

Minimum illumination

0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)

SNR

≥39dB

IR control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.

IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.

Electronic shutter

1/50s(1/60s)-1/100, 000s

CMOS

support AWB, AGC, BLC

 Lens/viewing angle

3.6mm*F1.4/56.14 °

Night Vision

Night vision

Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance

Audio

Compression format

ADPCM/32kbps

Input

1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone

Output

1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W)

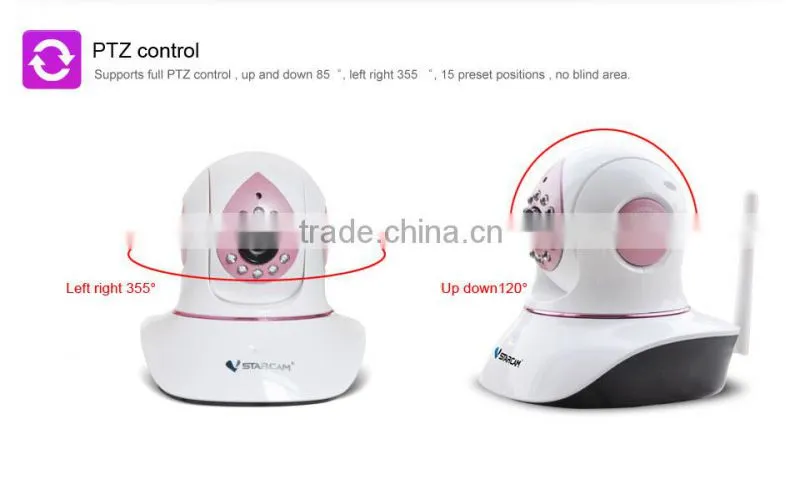

P/T

P/T

Pan:355 ° ,Tilt:120 °

Preset Postion

suppor up to 15 preset postions

Network

network interface

10Base-T/100Base-TX Ethernet interface

Network Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.

wireless network security

WPS encryption

Online visitor

Support 4 online visitors simutaneoursly

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/g/n

Others

housing material

 engineering plastics

Application environment

Indoor

Rated Voltage

DC5±0.3V

Temperature

-10~50 °C

Power consumption

rated power:3.5W(IR opening )/maximum power:7W(P/T working )

Package size

195x140x130mm (L×W×H)

Weight

Gross Weight :755g(Note: in kind prevail)

Accessories

Power adapter, user manual, warranty card, mounting bracket, screws.

Alarm

Motion Detection

Support motion detecting

System Requirement

System configuration

Win98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher

Certificate

Certificate

ISO FCC CE RoHS





Only for reference





Packaging & Shipping



cell phone controlled remote camera, body cam rohs conform

cell phone controlled remote camera, body cam rohs conformcell phone controlled remote camera, body cam rohs conform







Our Services





 •  OEM Service: We could offer OEM and ODM services for our clients.

 •   Delivery Time: Sample order 3-5 working days, bulk order 7-15 working days.

 •   Delivery Term: ByExpress(DHL/FEDEX/TNT/UPS),By air,By Sea.

 •   Quality Warranty: One year warranty.

 •   We provide 4BS service: best quality, best price, best delivery, best service.

 •   We have Sole Agents from different countries.

( Sole Agent in Korea, Russia, Spain, Ukraine, Thailand, Egypt, Canada,India, Indonesia, Pakistan, Australia,

Singapore, Chile, Malaysia, Switzerland,LAOS,Myanmar, UK,Saudi Arabia, Brunei, Oman)
