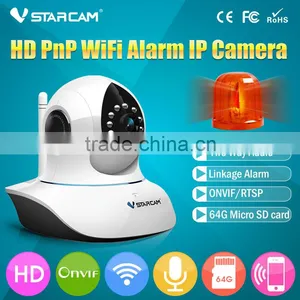

HD 720P Wifi I/O Alarm Port Security IP Camera

Model:T7838WIP-AR

Features

   Type

Parameters

System

System security

Account, password authority management

DDNS

No need DDNS, support dynamic IP

Local memory

Support up to 32G TF Card, loop recording

UID Technology

UID scan technology applied, easy to operate, and highly confidential.

CMS

1,4,9,16,25,36, 64,81-channel super client software , no user limited , centralized monitor, remote

recording and video playback.

Operation system

Embedded Linux OS

Video

Compression Format

H.264 , 1.0 megapixel

Frame rate

1~30fps

Resolution

720P(1280*720)

Image sensor

1/4 CMOS

Minimum Illumination

  2.5Lux( color mode),  0.3Lux (B/W mode)

SNR

≥39dB

CMOS

support AWB, AGC, BLC

Lens/Viewing Angle

3.6mm  F1.4/56.14

Night vision

IR-CUT

Dual IR-CUT Filter

Effect

10pcs 850nmΦ5mm IR LED,  IR Distance: 10m

Audio

Encode formats

ADPCM/32kbps

Input

1 Channel Line in -48dB Microphone

Output

1 Channel Line output(3.5mm phone jack)&built-in speaker(8Ω1W)

P/T

PT

Pan:355°,Tilt:120°

Preset position

5 preset positions

Network

Socket

RJ-45   10/100Mb   self-adaptable Ethernet slot

Network Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,P2P

WIFI

WIFI 802.11 b/g/n

visitors

Support 4 online visitors viewing  simultaneously

Others

Power Consumptions

DC5±0.3V

Temperature

-10~50 °C

Humidity

95%RH

Weight

Gross:640g ( only for reference)

Package size

165*165*140mm (L*W*H)

Alarm

Motion Detection

Support motion detection/one channel input trigger

Alarm Action 1

Alarm output,   action: high / low

Alarm Action 2

snapshot and email

Alarm Action 3

Support FTP video upload

Linkage alarm

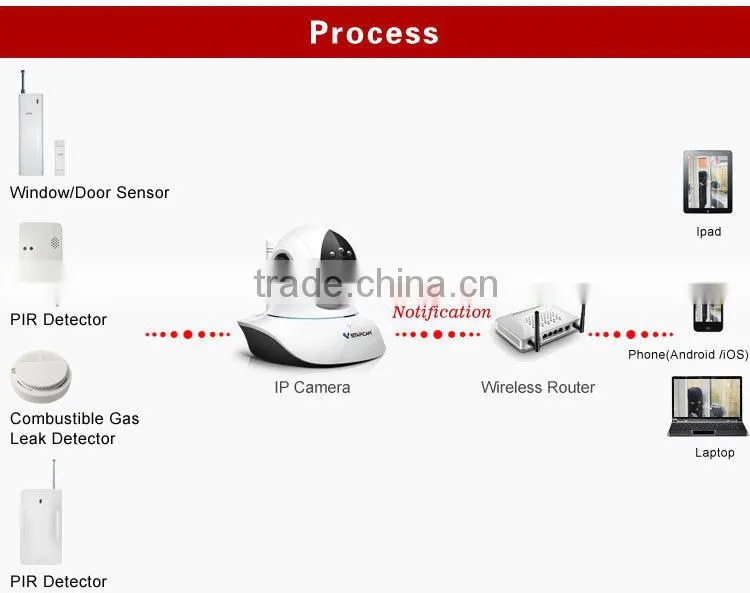

Support up to 32 wireless alarm sensors, support one key arming and disarming.

System requirements

Win98 SE/ME/2000/XP, Vista, iPhone IOS4.3,Andorid 2.3 above

Certificates

ISO FCC CE RoHS

Note: Only for reference.
