Automatic Sealing Shrink Machine
Type: BS-400LB Automatic Sealing Shrink Machine
Specifications of Automatic Sealing Shrink Machine
- Sealing type: L-sealing by means of L-bar
- Power supply: 380V/50-60Hz/3phase
- Packing capacity: 35 packs per minute (depends on product size and
film width)
- L-bar size: 570x480 mm
- Max height of sealing frame: 125 mm
- Film type: center-folded film with 12-80 micron
- Max film size: width: 520mm (folded), outer diameter: 400mm
- Conveyor speed: 19 m/min
- Working height: 780-850 mm
- Rated power consumption: 1.2 kW
- Air pressure: <=0.5MPa (5 bar)
- PLC: Siemens CPU
- Sealing system: permanently heated seal bar with easy-exchangeable
sealing blade with Teflon, temperature controlled and detected by PLC
- Operating interface: Touchscreen Eview MV506, display operation
guidance and error diagnostic
- Machine material: stainless steel
- Machine dimension: 1600x770x1450mm

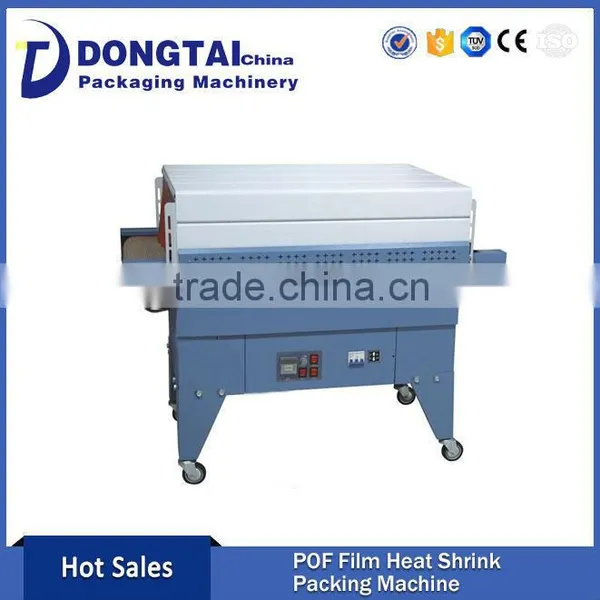

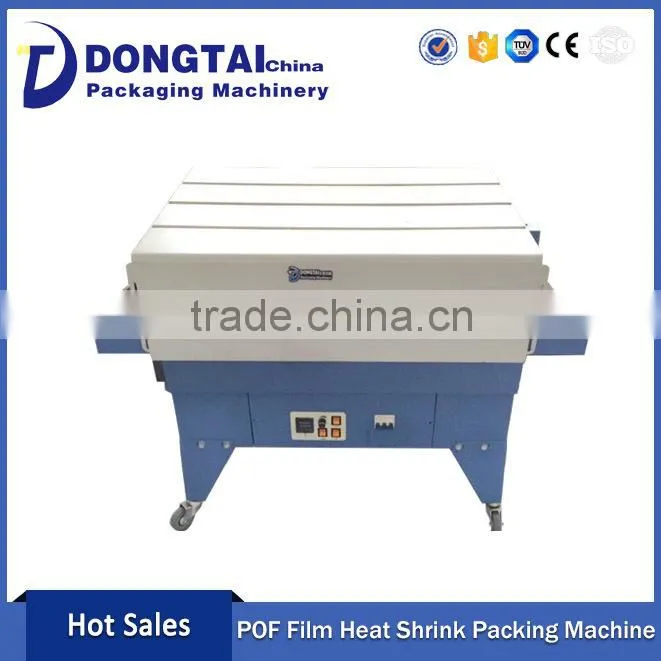

BMD-450B
- Power supply: 380V/50-60Hz/3phase
- Oven size: 1200(length) x 450(width) x 220(height) mm
- Conveyor speed: variable, 40 m/min
- Conveyor: chains with rotating silicon coated rods
- Temperature control: By electronic thermostat
- Rated power consumption: max 7 kW
- Working height: 780-850 mm
- Machine material: stainless steel
- Machine dimension: 1600x600x1260mm

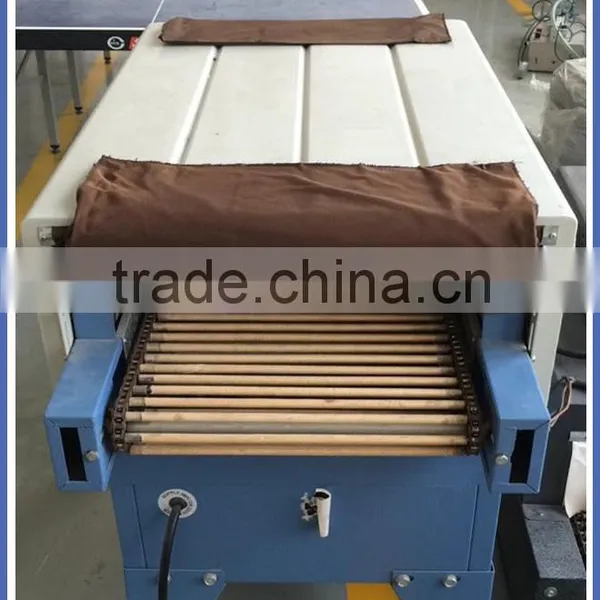

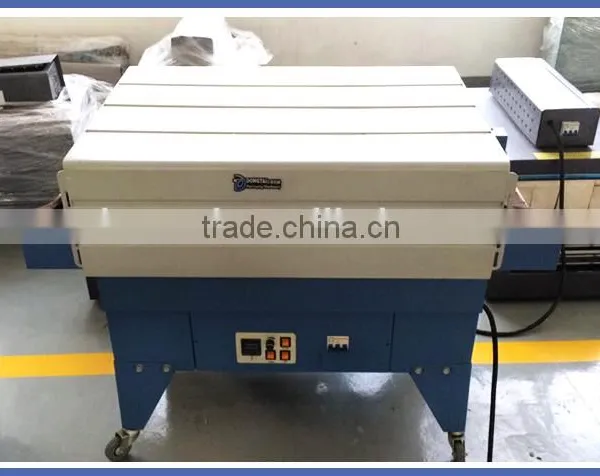

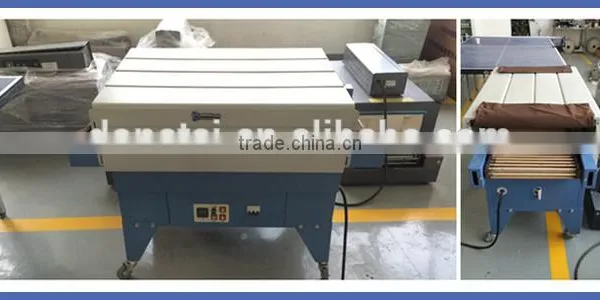

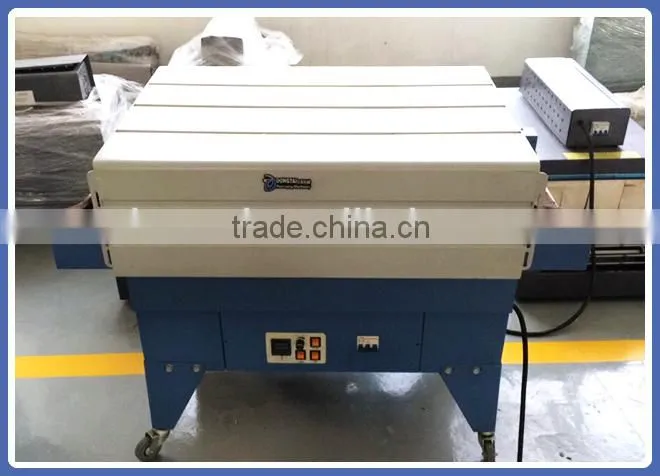

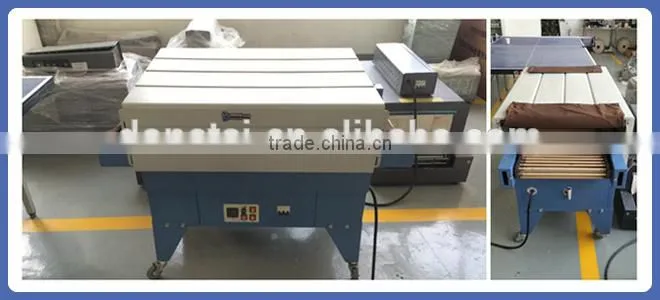

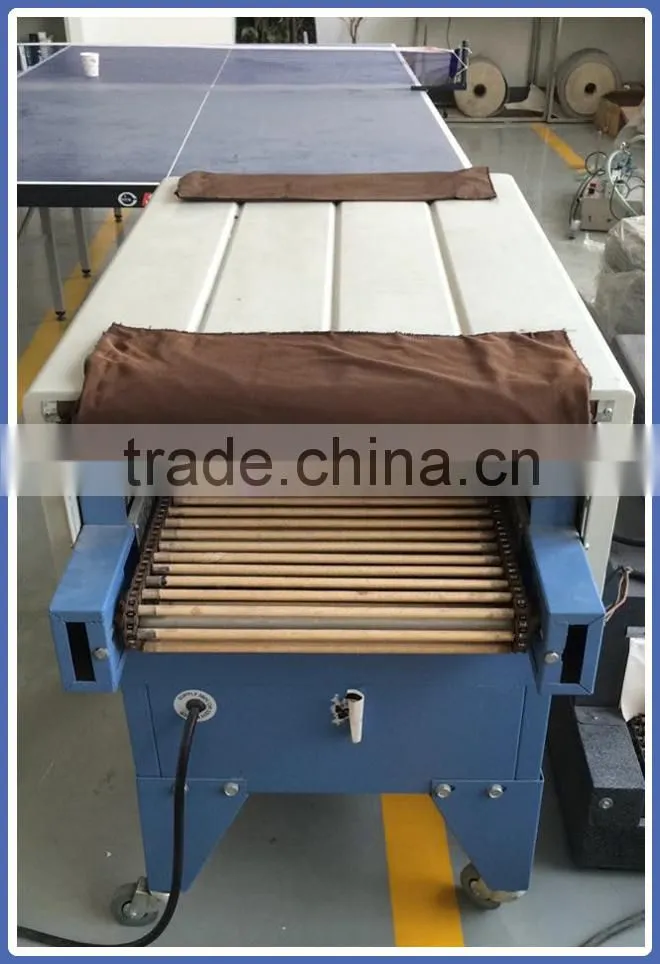

Details of Automatic Sealing Shrink Machine
Standard Export Packing for Automatic Sealing Shrink Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
